Product Attributes :
Develivery time:30-45 days
Model: automatic c purlin roll forming machine
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860
| Name | Purlin Machine Price for C Z Purlins |
| Suitable to process | Galvanized steel strips/cold rolled strips |
| Roller | 22Rows(Before and after the leveling and contains no lead to send passes) |
| Dimensions | 11*1.3*1.5m |
| Motor Power | 11Kw*2 |
| Pump Station Motor | 7.5Kw.Lichao Brand |
| Thickness of the plate | 1.0mm-3.0mm |
| Productivity | 10-15m/min |
| Material of the cutting blade | Cr12MoV,Quenched treatment 58ºC-60ºC |
| Diameter of the roller | 105mm |
| Weight | About 8500Kgs |
| Main structure of the machine | 450 H Beams |
| Processing precision | Within 1.0mm |
| Side panel of machine | 20mm |
| Side panel of machine | 2+2.5 Inch |
| Voltage | 380V 50Hz 3phases or as customer’s need |
| Control system | PLC control (Delta) or as customer’s need |
| Frequency system | Delta or as customer’s need |
| Drive mode | Motor driver |
| Touch screen | Delta or as customer’s need |

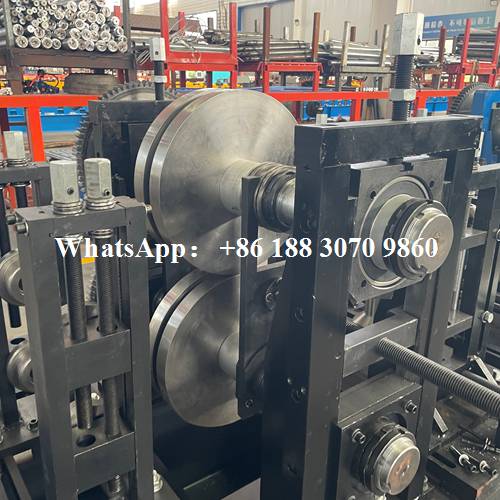

| Rolling materials | GCr15+GCr12(bearing steel)hard chrome plated after heat treatment |
| Length Tolerance | ±2mm |

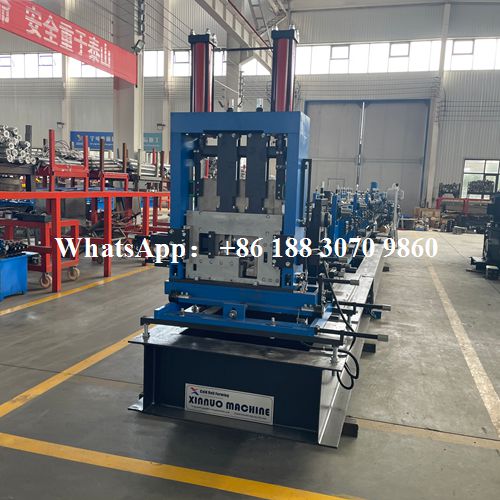

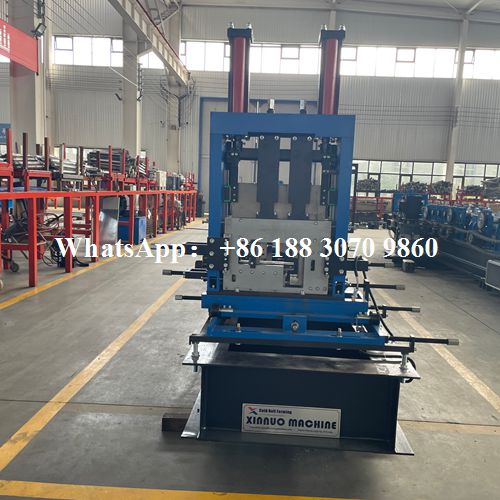

| Type of cutting | Length-set cutting Guiding pipe |
| Hydraulic cutter | |
| Each side one Oil cylinder |

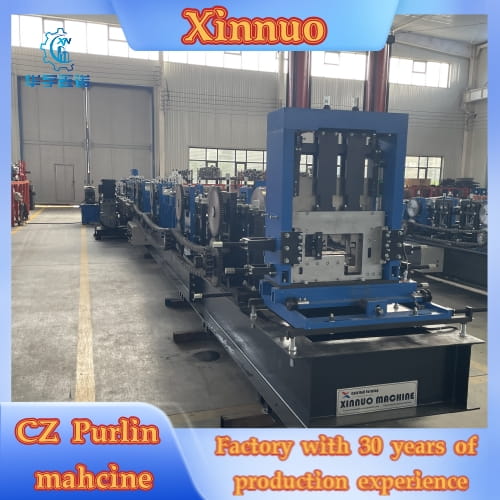

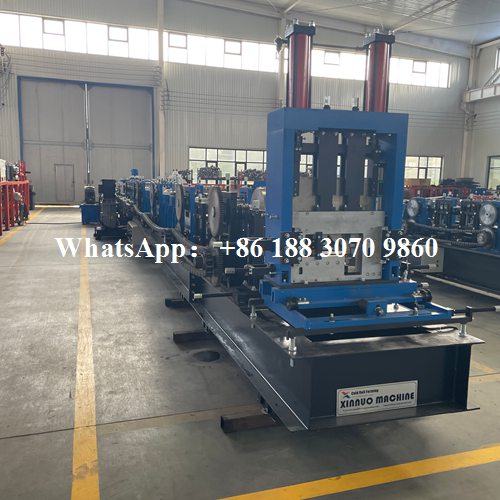

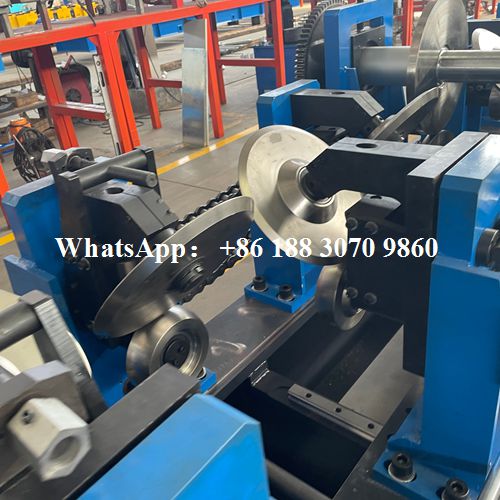

The purlin machine price depends mainly on the machine configuration, production capacity, and level of automation. This purlin machine is designed with a balanced structure that combines reliable performance with cost efficiency, making it suitable for professional purlin manufacturers.

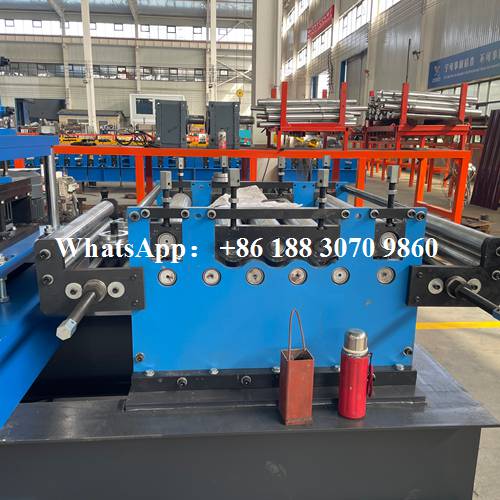

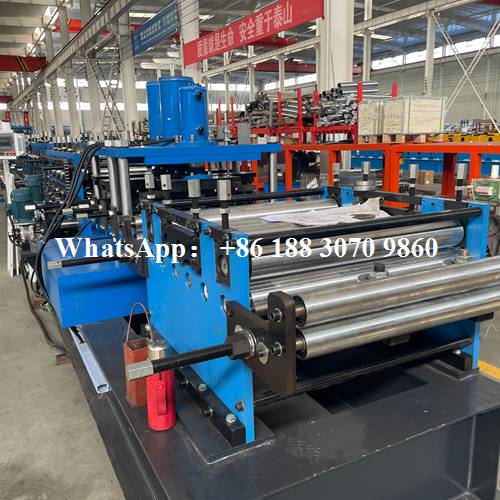

The production line includes a leveling section and straightening unit, ensuring the steel strip enters the forming process flat and stress-free. This improves profile accuracy and reduces material deformation during forming.
The machine is equipped with a manual C/Z change system, allowing flexible production of both C and Z purlins without the cost of a fully automatic change mechanism. This configuration provides a practical solution for customers who require versatility at a reasonable purlin machine price.

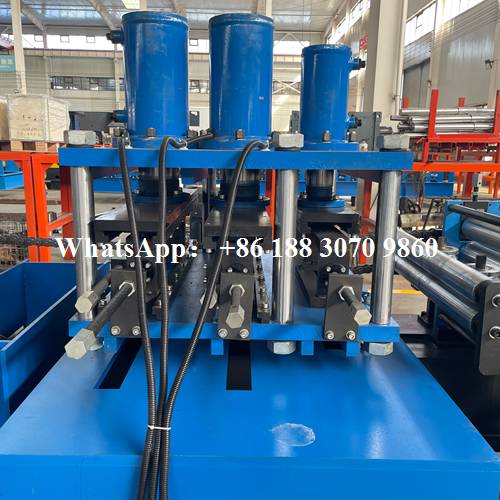

A fully automatic punching system is integrated into the line, delivering precise hole positioning and consistent punching quality while maintaining production efficiency. The leveling system further enhances dimensional accuracy, ensuring smooth forming and high-quality finished purlins.
Due to different material thickness, profile sizes, punching requirements, and automation levels, the purlin machine price can vary. Final pricing is confirmed based on specific project requirements to ensure the best cost-performance ratio.
