Product Attributes :
Develivery time:30-45 days
Model: automatic c purlin roll forming machine
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860

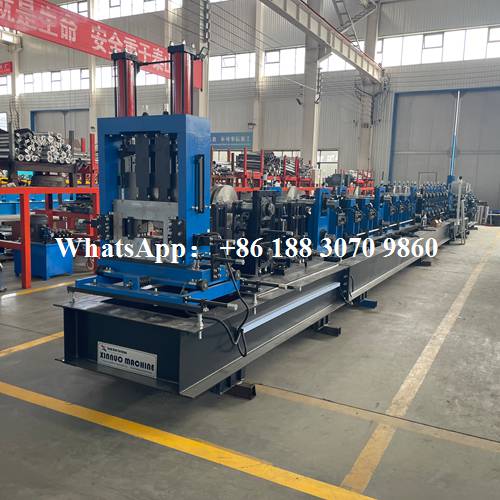

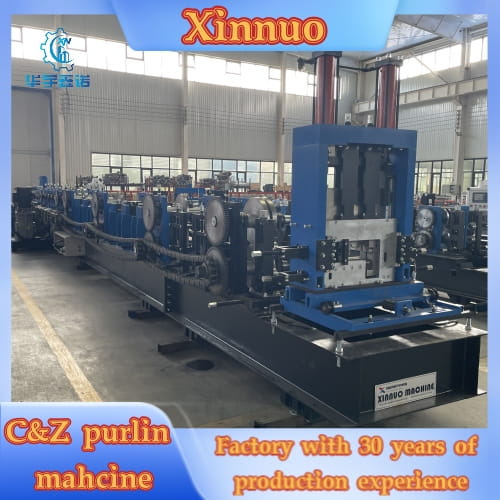

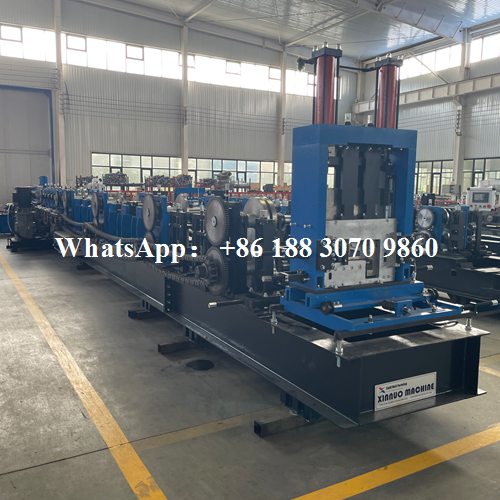

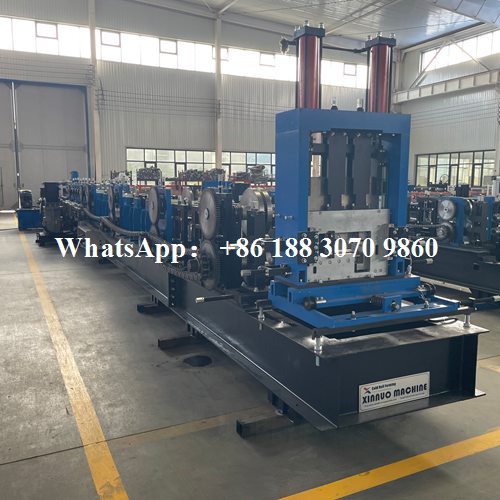

The c z purlin roll forming machine is a high-efficiency industrial solution designed for the continuous production of C purlin and Z purlin profiles from steel coils. It is widely used in steel structure buildings, warehouses, workshops, agricultural buildings, and industrial construction projects where strong and accurate structural components are required.

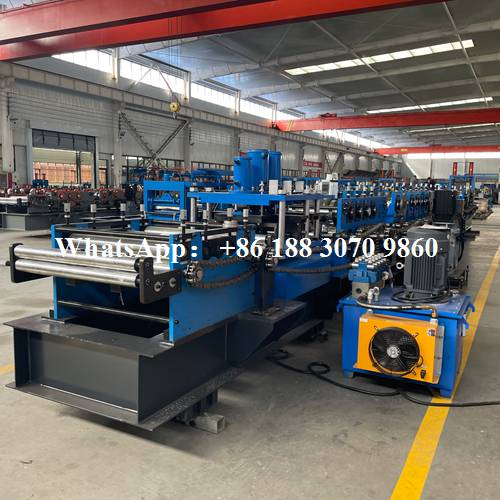

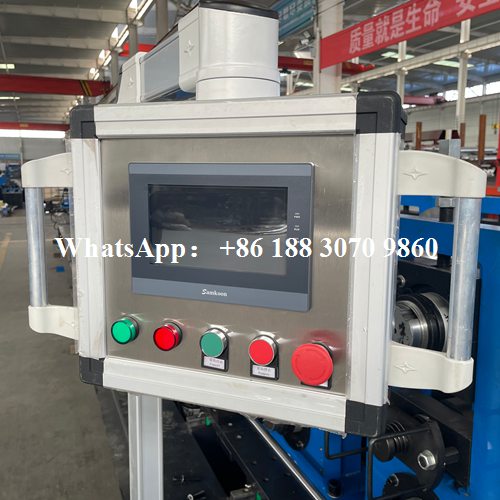

This c z purlin roll forming machine adopts a complete automatic production process, including decoiling, leveling, guiding, roll forming, punching, hydraulic cutting, and finished product output. Controlled by a PLC system with a touch screen interface, the machine ensures stable operation, precise dimensions, and repeatable production quality.

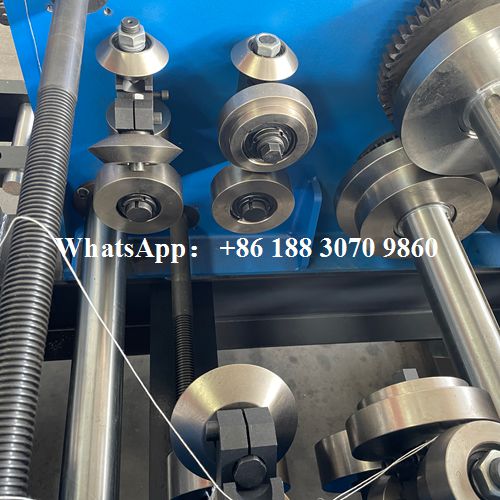

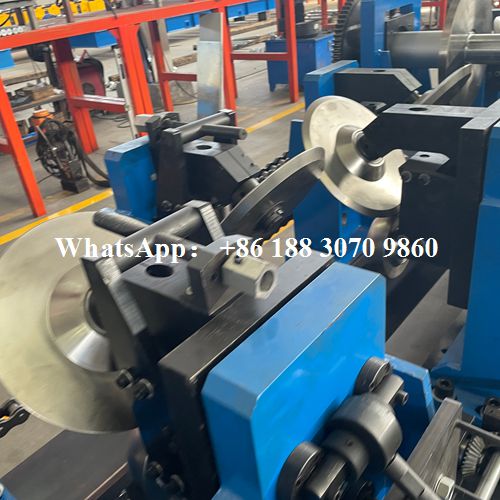

The forming rollers of the c z purlin roll forming machine are manufactured from high-quality steel and processed by precision machining and heat treatment, which guarantees long service life and smooth profile surfaces. The machine frame is made of heavy-duty steel structure to minimize vibration and maintain alignment during long-term continuous operation.
For different project requirements, the c z purlin roll forming machine can be customized to support various material thickness ranges, profile sizes, and punching patterns. Hole positions, slot shapes, and cutting lengths can be automatically adjusted through the control system, reducing manual operation and improving production efficiency.
| Name | c z purlin roll forming machine |
| Suitable to process | Galvanized steel strips/cold rolled strips |
| Roller | 16Rows(Before and after the leveling and contains no lead to send passes) |
| Dimensions | 11*1.3*1.5m |
| Motor Power | 11Kw*2 |
| Pump Station Motor | 7.5Kw.Lichao Brand |
| Thickness of the plate | 1.0mm-3.0mm |
| Productivity | 10-15m/min |
| Material of the cutting blade | Cr12MoV,Quenched treatment 58ºC-60ºC |
| Diameter of the roller | 85mm |
| Weight | About 8500Kgs |
| Main structure of the machine | 450 H Beams |
| Processing precision | Within 1.0mm |
| Side panel of machine | 20mm |
| Side panel of machine | 2 Inch |
| Voltage | 380V 50Hz 3phases or as customer’s need |
| Control system | PLC control (Delta) or as customer’s need |
| Frequency system | Delta or as customer’s need |
| Drive mode | Motor driver |
| Touch screen | Delta or as customer’s need |
| Rolling materials | GCr15(bearing steel)hard chrome plated after heat treatment |
| Length Tolerance | ±2mm |

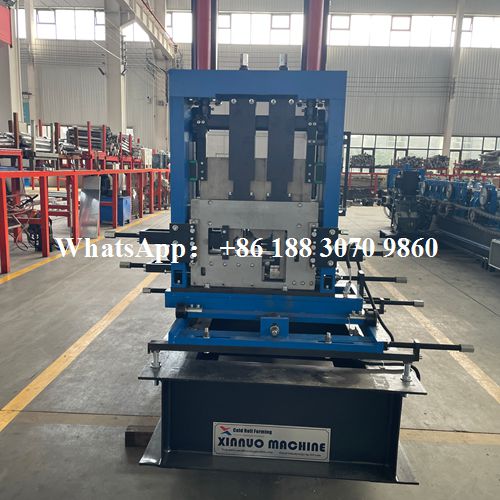

| Type of cutting | Length-set cutting Guiding pipe |
| Hydraulic cutter | |
| Each side one Oil cylinder |
With reliable performance, flexible configuration, and low maintenance cost, the c z purlin roll forming machine is an ideal choice for steel building manufacturers and construction companies aiming to improve productivity and product consistency.
The c z purlin roll forming machine offers stable performance, precise forming, and flexible customization. It is designed for continuous production of C and Z steel purlins with automatic punching and cutting, making it a reliable solution for modern steel structure manufacturing.
The c z purlin roll forming machine is suitable for:
Steel structure buildings
Industrial workshops and factories
Warehouses and logistics centers
Agricultural and commercial buildings
