Product Attributes :
Develivery time:30-45 days
Model: automatic c purlin roll forming machine
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860
Product Description – cz purlin machine
The cz purlin machine is an automatic roll forming solution designed for producing C purlin and Z purlin profiles from galvanized steel or cold rolled steel coils. These purlins are widely used as structural support components in steel buildings, warehouses, factories, workshops, and agricultural constructions.
| Name | cz purlin machine |
| Suitable to process | Galvanized steel strips/cold rolled strips |
| Roller | 16Rows(Before and after the leveling and contains no lead to send passes) |
| Dimensions | 11*1.3*1.5m |
| Motor Power | 11Kw*2 |
| Pump Station Motor | 7.5Kw.Lichao Brand |
| Thickness of the plate | 1.0mm-3.0mm |
| Productivity | 10-15m/min |
| Material of the cutting blade | Cr12MoV,Quenched treatment 58ºC-60ºC |
| Diameter of the roller | 85mm |
| Weight | About 8500Kgs |
| Main structure of the machine | 450 H Beams |
| Processing precision | Within 1.0mm |
| Side panel of machine | 20mm |
| Side panel of machine | 2 Inch |
| Voltage | 380V 50Hz 3phases or as customer’s need |
| Control system | PLC control (Delta) or as customer’s need |
| Frequency system | Delta or as customer’s need |
| Drive mode | Motor driver |
| Touch screen | Delta or as customer’s need |
| Rolling materials | GCr15(bearing steel)hard chrome plated after heat treatment |
| Length Tolerance | ±2mm |
| Type of cutting | Length-set cutting Guiding pipe |
| Hydraulic cutter | |
| Each side one Oil cylinder |

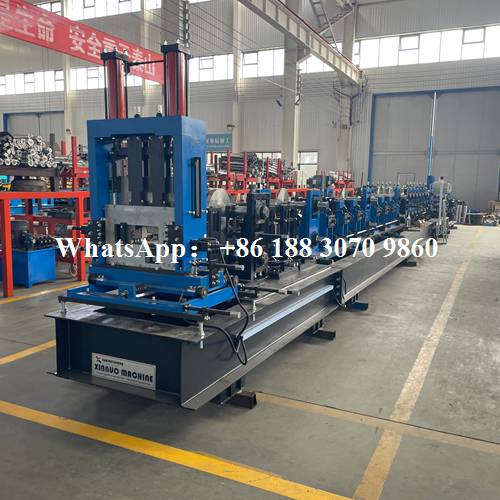

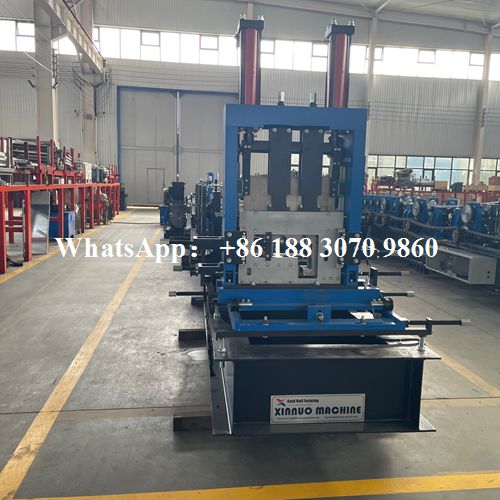

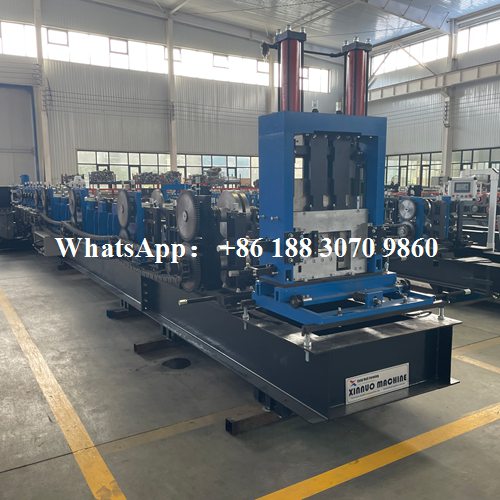

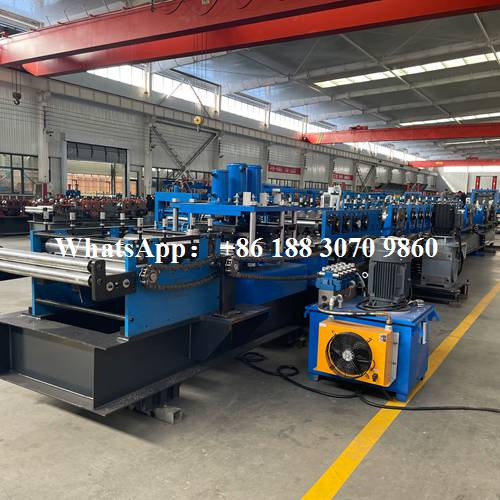

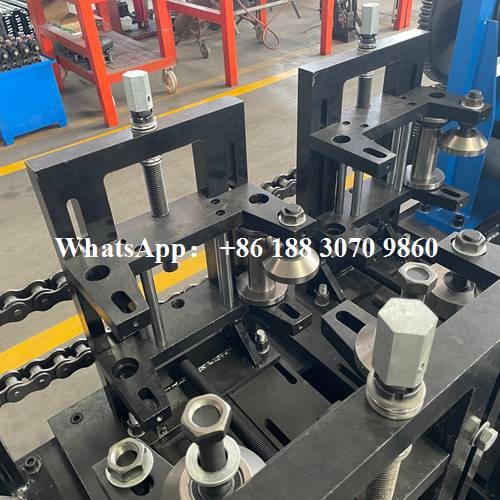

This cz purlin machine integrates decoiling, leveling, guiding, roll forming, punching, and hydraulic cutting into one continuous production line. With PLC control and a touch screen interface, the machine allows easy operation, precise length control, and stable production performance, even during long working hours.

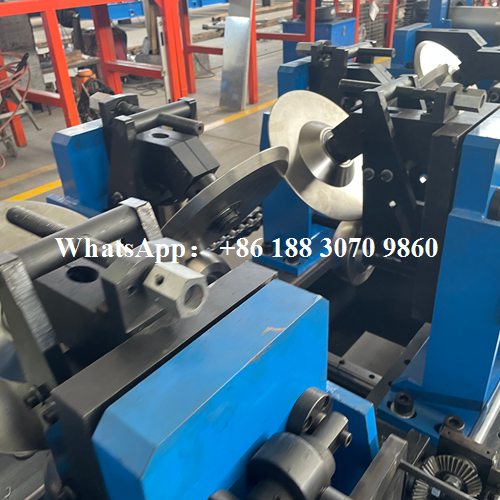

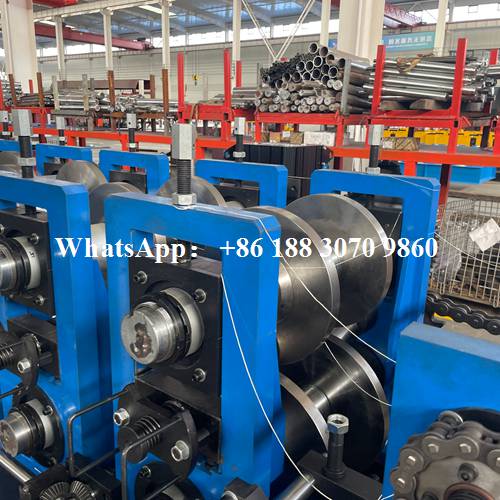

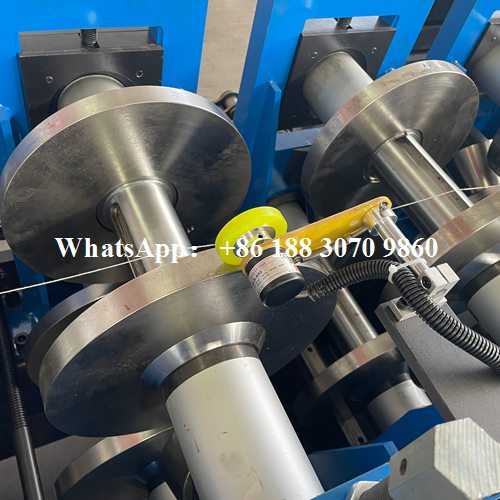

The roll forming system of the cz purlin machine is equipped with precision-machined rollers made from high-quality steel, ensuring accurate profile dimensions and smooth surface finish. The strong machine frame and optimized transmission system reduce vibration and maintain alignment, improving product consistency and extending machine service life.
To meet different customer requirements, the cz purlin machine can be customized for various material thickness ranges, profile sizes, and punching layouts. Hole positions, cutting length, and production parameters can be adjusted automatically, helping reduce labor cost and increase overall production efficiency.
With reliable quality, flexible configuration, and low maintenance requirements, the cz purlin machine is an ideal choice for steel structure manufacturers seeking stable output and long-term operation.
Main Advantages – cz purlin machine
Automatic C and Z purlin forming
PLC control with touch screen operation
Accurate punching and hydraulic cutting
Stable structure for continuous production
High efficiency and reduced labor cost
Customized profile sizes available
Applications
The cz purlin machine is suitable for:
Steel structure buildings
Industrial and commercial warehouses
Workshops and factories
Agricultural and storage buildings
