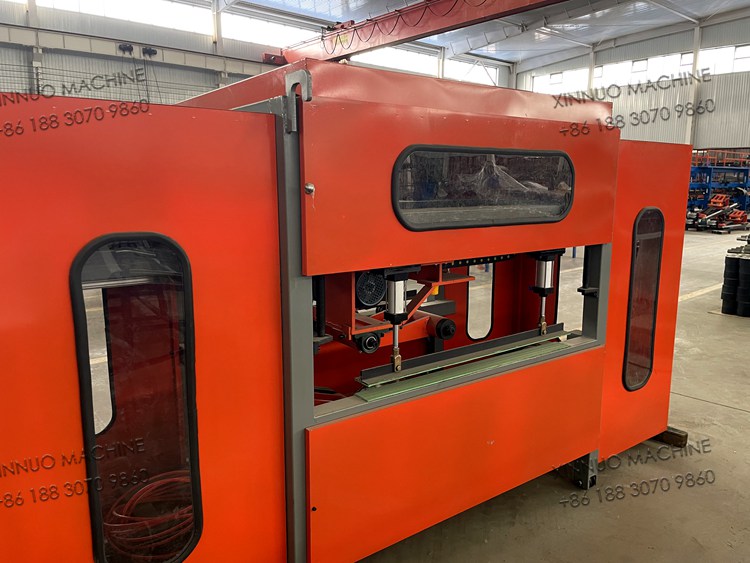

Xinnuo High-Performance Sandwich Panel Cutting Equipment

Introduction

In the dynamic landscape of modern construction and industrial manufacturing, the demand for impeccably cut sandwich panels is paramount for structural integrity and aesthetic finish. Xinnuo Roll Forming Machinery is proud to present its state-of-the-art Sandwich Panel Cutting Equipment, a robust and essential solution engineered to deliver unparalleled precision, efficiency, and reliability to your production line. This equipment ensures that every sandwich panel, irrespective of its core composition or dimensional requirements, meets the most stringent quality benchmarks, facilitating seamless integration into your manufacturing process and yielding superior finished products.

Optimizing Your Sandwich Panel Production with Superior Equipment

The Xinnuo Sandwich Panel Cutting Equipment is meticulously designed to serve as a critical component within any high-volume sandwich panel production line, whether you are operating a mineral wool sandwich panel line, a PU sandwich panel line, or an EPS sandwich panel making machine line. It directly addresses the crucial need for clean, accurate, and consistent cuts, which are fundamental for both the structural soundness and ease of installation of your panels.

Key Features and Advantages of Our Cutting Equipment:

Unrivaled Precision Cutting:

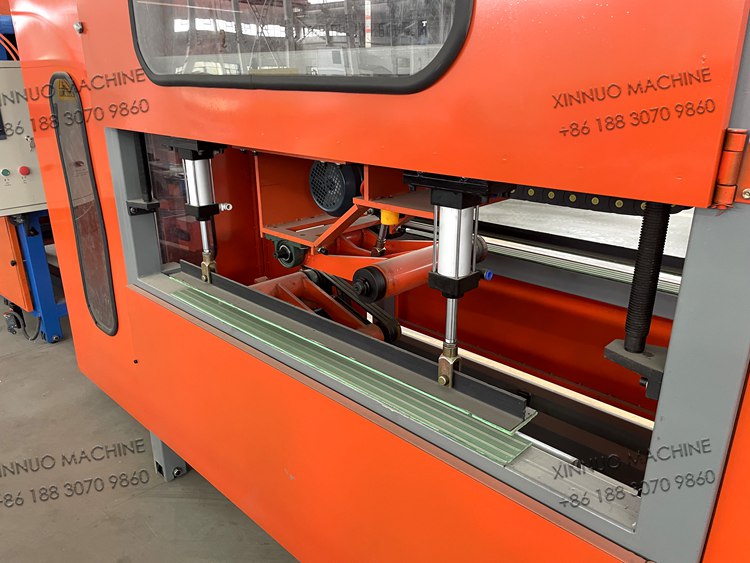

1. At the heart of our equipment lies a highly precise cutting mechanism, rigorously engineered to execute cuts with extreme accuracy. This minimizes dimensional deviations and eliminates material wastage, which is vital for achieving perfect panel joints and elevating overall project quality.

2. Advanced sensor technology and sophisticated control algorithms are integrated to maintain unwavering cutting paths and consistent depths across all operations.

Broad Material Versatility:

1. This equipment is specifically designed to efficiently process diverse sandwich panel core materials, including but not limited to mineral wool, EPS (Expanded Polystyrene), and PU (Polyurethane), thereby accommodating a wide spectrum of production needs.

2. Its adaptable design allows for the precise cutting of panels across an extensive range of thicknesses, ensuring maximum flexibility to meet varied product specifications.

Advanced Automation & Seamless Integration:

1. Our cutting equipment is engineered for full automation, allowing for effortless integration into your existing sandwich panel production line. It seamlessly receives panels directly from lamination or forming stations, ensuring uninterrupted workflow.

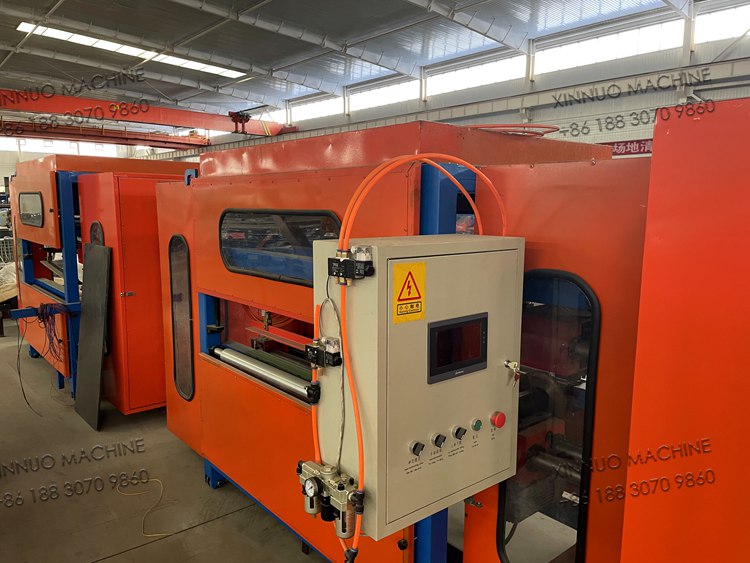

2. Controlled by a cutting-edge PLC system (with options for Siemens or Delta components) and an intuitive Human-Machine Interface (HMI) touch screen, operators benefit from easy parameter configuration, real-time monitoring, and efficient fault diagnosis.

Exceptional Efficiency and High Throughput:

1. Built for continuous, high-speed operation, this equipment significantly maximizes your daily production output and effectively reduces manufacturing lead times.

2. The optimized cutting process facilitates a smooth and consistent material flow, eliminating bottlenecks and contributing to a highly efficient sandwich panel line.

Robust & Durable Cutting Components:

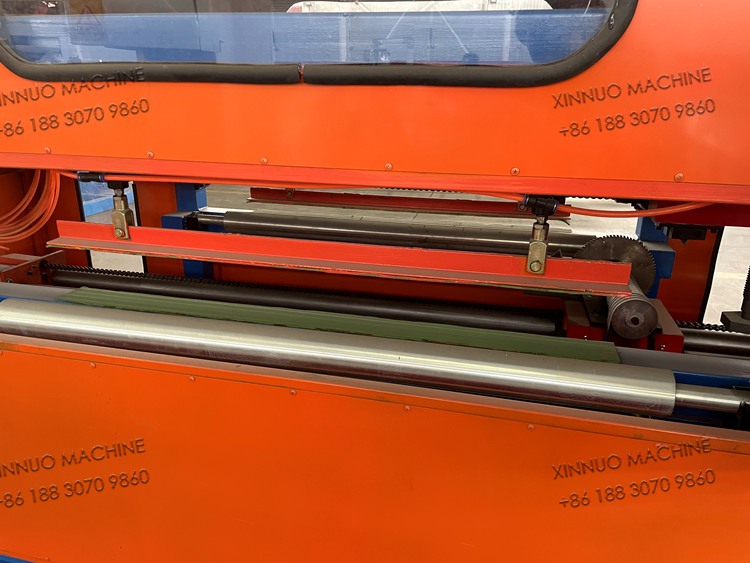

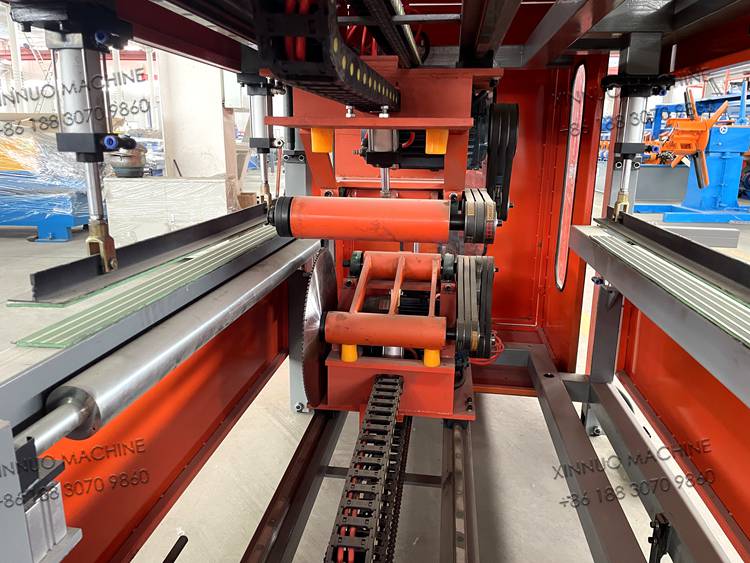

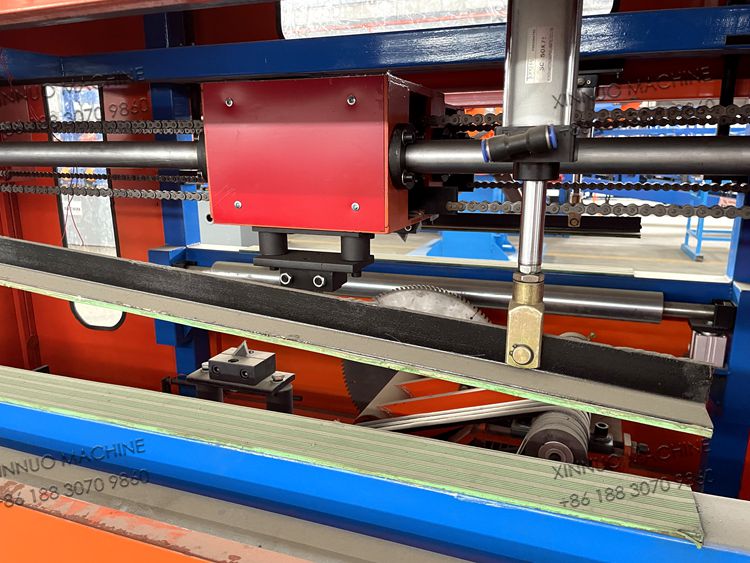

1. Features high-quality, long-lasting cutting tools (such as precision band saw blades, robust circular saw blades, or other specialized elements) specifically selected for their superior performance in cutting composite materials. This ensures extended operational lifespan and consistent cutting quality.

2. The equipment is designed for easy and rapid cutting tool replacement, minimizing downtime and streamlining maintenance procedures.

Comprehensive Safety Measures:

1. Safety is paramount. Our cutting equipment incorporates an array of comprehensive safety features, including secure protective enclosures, readily accessible emergency stop buttons, and robust interlocks, to ensure utmost operator safety during all phases of operation.

2. All designs adhere strictly to international safety standards and regulations.

Integrated Dust and Waste Management:

1. An efficient integrated system is provided for the effective collection and management of cutting dust and debris. This contributes to a cleaner, healthier, and safer working environment while substantially reducing post-processing cleanup efforts.

Heavy-Duty Construction for Longevity:

1. Constructed with industrial-grade, heavy-duty steel frames and premium quality components, this equipment guarantees exceptional structural stability, minimal operational vibration, and enduring reliability under continuous, demanding industrial use.

Technical Specifications (Typical Configuration):

• Model: Xinnuo [Specific Cutting Equipment Model, e.g., XP-SPCE-1200]

• Applicable Panel Types: Mineral Wool, EPS, PU Sandwich Panels

• Max. Panel Width: Up to 1200 mm

• Max. Panel Thickness: 50 mm - 250 mm (Customizable for wider ranges)

• Cutting Speed: 10 - 30 meters/minute (Adjustable based on material)

• Cutting Accuracy: ± 1 mm

• Cutting Tool Specification: Tailored to material and thickness (e.g., specific band saw blades, specialized circular saw blades, etc.)

• Main Motor Power: 5.5 kW - 11 kW (Depending on specific cutting requirements)

• Control System: PLC (Siemens / Delta options) with Color Touch Screen HMI

• Feeding System: Heavy-duty roller or belt conveyor with variable frequency drive

• Equipment Dimensions (Approx.): 3000mm (L) x 2000mm (W) x 2500mm (H) (Cutting Unit)

• Equipment Weight (Approx.): 2.5 - 4 Tons

• Power Requirements: 3 Phase, 380V/50Hz or customized to local standards

Benefits to Your Business:

• Elevated Product Quality: Produce highly accurate panels with impeccably clean edges, significantly enhancing the overall quality and market appeal of your finished products.

• Optimized Material Utilization: Precision cutting drastically reduces material waste, leading to substantial cost savings and improved profitability.

• Boosted Productivity: High-speed, automated operation dramatically increases your production throughput and minimizes reliance on manual labor.

• Enhanced Operational Safety: Advanced automated processes and integrated safety features create a secure and compliant working environment.

• Guaranteed Long-Term Reliability: Robust construction and premium components ensure minimal operational downtime and an extended service life, providing an excellent return on investment for your sandwich panel production line.

Why Choose Xinnuo? With over 29 years of unparalleled expertise in cold roll forming and comprehensive industrial solutions, Xinnuo Roll Forming Machinery stands as your trusted partner. We are a distinguished National High-tech Enterprise, holding numerous patents, and are steadfastly dedicated to innovation and manufacturing excellence. Our high-performance machines have been successfully exported to 141 countries worldwide, underpinned by robust global sales and comprehensive after-sales support teams. Strategically located near Beijing and Tianjin Port, we guarantee efficient delivery and significantly reduced logistics costs for our esteemed clients globally.

Invest in Precision. Invest in Xinnuo. Elevate your sandwich panel production capabilities with Xinnuo's advanced Sandwich Panel Cutting Equipment. Contact us today to meticulously discuss your specific requirements, receive a detailed customized quotation, and discover how our cutting-edge equipment can revolutionize your manufacturing processes.
