Product Attributes :
Develivery time:30-45 days
Model: automatic c purlin roll forming machine
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860

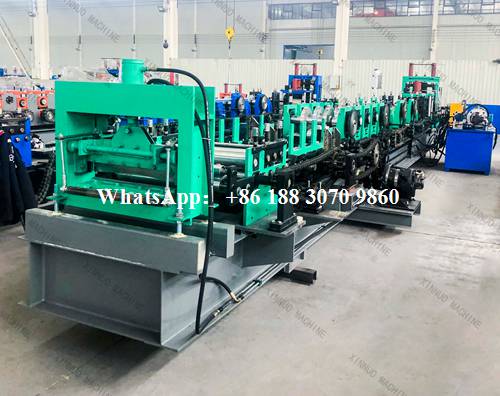

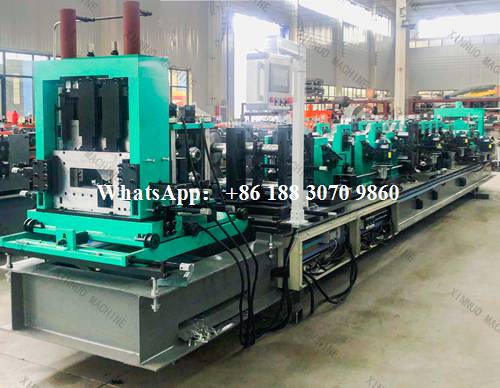

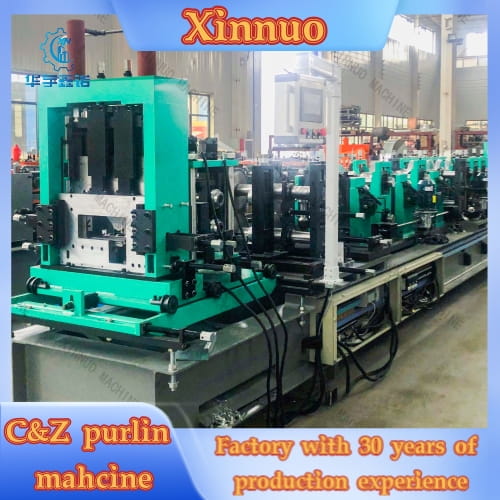

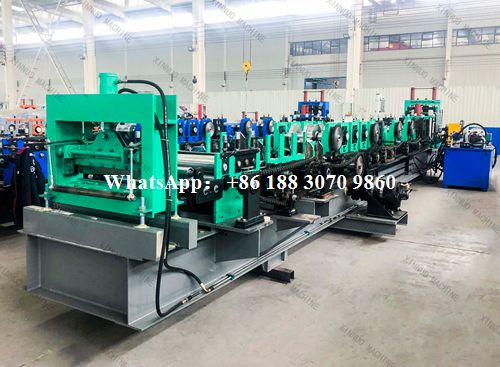

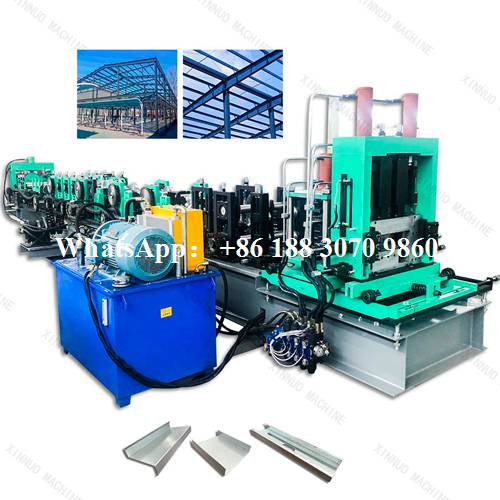

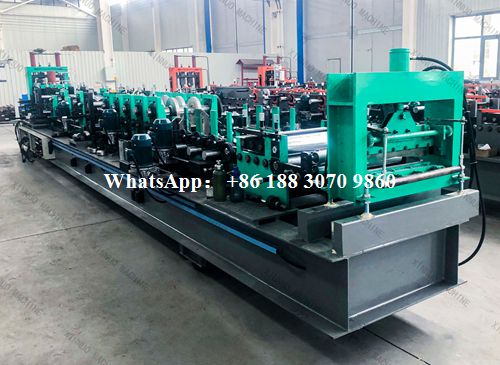

The c z purlin forming machine is engineered to meet the real demands of steel structure manufacturing, where production stability, forming accuracy, and efficiency are critical. It converts steel coils into finished C and Z purlins through a continuous and well-controlled forming process, making it suitable for high-volume industrial production.
| Name | c z purlin forming machine |
| Suitable to process | Galvanized steel strips/cold rolled strips |
| Roller | 16Rows(Before and after the leveling and contains no lead to send passes) |
| Dimensions | 11*1.3*1.5m |
| Motor Power | 11Kw*2 |
| Pump Station Motor | 7.5Kw.Lichao Brand |
| Thickness of the plate | 1.0mm-3.0mm |
| Productivity | 10-15m/min |
| Material of the cutting blade | Cr12MoV,Quenched treatment 58ºC-60ºC |
| Diameter of the roller | 85mm |
| Weight | About 8500Kgs |
| Main structure of the machine | 450 H Beams |
| Processing precision | Within 1.0mm |
| Side panel of machine | 20mm |
| Side panel of machine | 2 Inch |
| Voltage | 380V 50Hz 3phases or as customer’s need |
| Control system | PLC control (Delta) or as customer’s need |
| Frequency system | Delta or as customer’s need |
| Drive mode | Motor driver |
| Touch screen | Delta or as customer’s need |
| Rolling materials | GCr15(bearing steel)hard chrome plated after heat treatment |
| Length Tolerance | ±2mm |
| Type of cutting | Length-set cutting Guiding pipe |
| Hydraulic cutter | |
| Each side one Oil cylinder |
This c z purlin forming machine features a fully automated workflow that combines material feeding, precision roll forming, hole punching, and hydraulic cutting in a single line. With an advanced PLC control system, operators can manage profile sizes, punching sequences, and cutting lengths easily, ensuring consistent output and minimal setup time between different production tasks.
The forming section of the c z purlin forming machine is built around a rigid machine frame and carefully aligned roller stations. Precision-manufactured rollers ensure uniform profile geometry, while the optimized drive system maintains smooth material flow and reduces wear during long-term operation. This design helps maintain accuracy even when processing thicker materials.
To support efficient installation on site, the c z purlin forming machine delivers clean punching and precise length control. Each finished purlin meets structural assembly requirements, reducing rework and improving overall project efficiency for end users.
Flexibility is a key advantage of this c z purlin forming machine. Profile dimensions, material thickness range, and punching layouts can be configured according to customer needs, allowing manufacturers to adapt quickly to different building standards and market requirements.
By combining durability, automation, and adaptability, the c z purlin forming machine serves as a reliable production solution for steel structure manufacturers focused on long-term performance and consistent quality.
Designed for continuous operation, the c z purlin forming machine emphasizes stable forming and production reliability, making it suitable for factories running multiple shifts with minimal downtime.
