Product Attributes :
Develivery time:30-45 days
Model: automatic c purlin roll forming machine
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860
Product Details – c z purlin machine

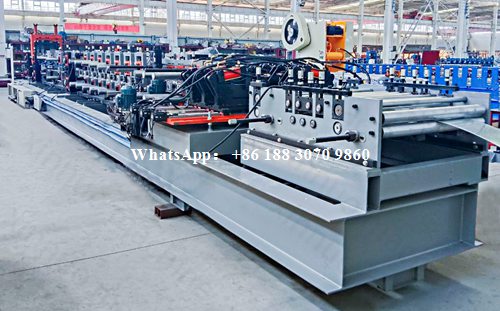

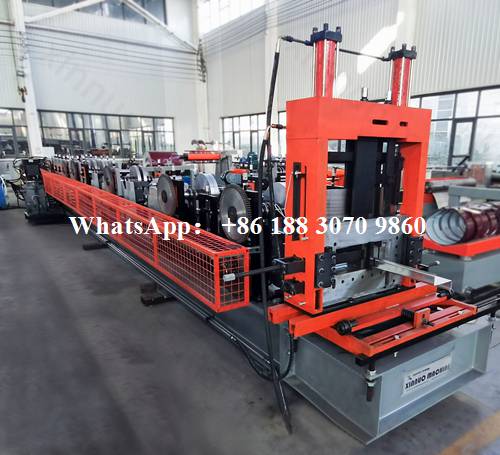

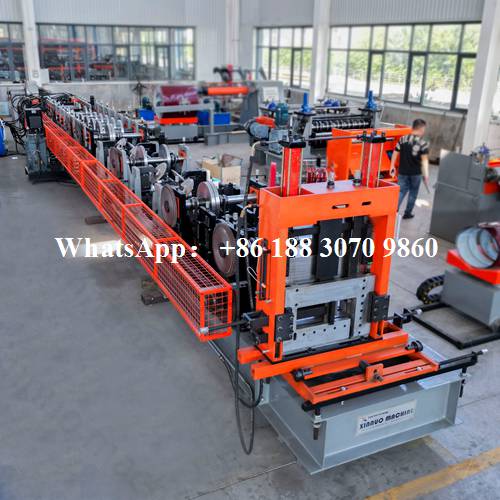

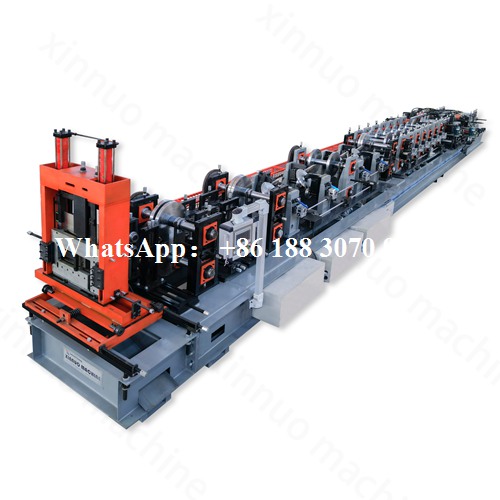

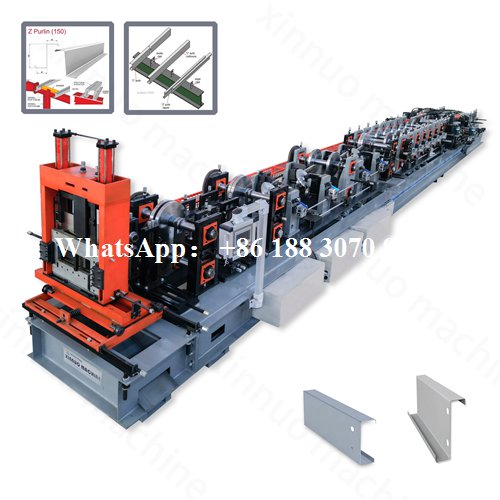

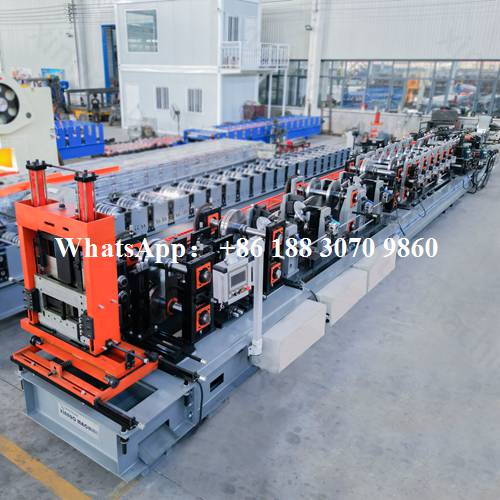

The c z purlin machine is a professional roll forming solution designed for the continuous production of C purlin and Z purlin profiles used in steel structure buildings. It is widely applied in warehouses, factories, workshops, agricultural buildings, and commercial steel construction projects where strength, accuracy, and consistency are critical.
This c z purlin machine processes steel coils through a fully automatic production line, including decoiling, leveling, guiding, roll forming, punching, hydraulic cutting, and finished product output. The entire system is controlled by a PLC with a touch screen interface, allowing operators to easily set production length, punching positions, and running parameters with high repeatability.
The roll forming unit of the c z purlin machine is equipped with precision-machined rollers made from high-quality steel. Through strict machining and heat treatment processes, the rollers ensure accurate profile dimensions, smooth surface finish, and long service life. A heavy-duty machine frame and optimized transmission structure effectively reduce vibration during operation, maintaining stable alignment even under long-term continuous production.
Punching and cutting systems are integrated to meet structural installation requirements. The c z purlin machine supports accurate hole punching and clean hydraulic cutting, ensuring consistent hole positions and precise length control. This improves on-site installation efficiency and reduces material waste.
| Name | c z purlin machine |
| Suitable to process | Galvanized steel strips/cold rolled strips |
| Roller | 16Rows(Before and after the leveling and contains no lead to send passes) |
| Dimensions | 11*1.3*1.5m |
| Motor Power | 11Kw*2 |
| Pump Station Motor | 7.5Kw.Lichao Brand |
| Thickness of the plate | 1.0mm-3.0mm |
| Productivity | 10-15m/min |
| Material of the cutting blade | Cr12MoV,Quenched treatment 58ºC-60ºC |
| Diameter of the roller | 85mm |
| Weight | About 8500Kgs |
| Main structure of the machine | 450 H Beams |
| Processing precision | Within 1.0mm |
| Side panel of machine | 20mm |
| Side panel of machine | 2 Inch |
| Voltage | 380V 50Hz 3phases or as customer’s need |
| Control system | PLC control (Delta) or as customer’s need |
| Frequency system | Delta or as customer’s need |
| Drive mode | Motor driver |
| Touch screen | Delta or as customer’s need |
| Rolling materials | GCr15(bearing steel)hard chrome plated after heat treatment |
| Length Tolerance | ±2mm |
| Type of cutting | Length-set cutting Guiding pipe |
| Hydraulic cutter | |
| Each side one Oil cylinder |
Designed with flexibility in mind, the c z purlin machine can be customized for different material thickness ranges, profile sizes, and punching layouts. Whether producing standard C and Z profiles or project-specific dimensions, the machine can be adjusted to match customer requirements, helping manufacturers respond quickly to different market demands.
With reliable performance, efficient output, and low maintenance requirements, the c z purlin machine is not only a forming machine but a complete production solution for steel structure manufacturers seeking long-term value and stable production capacity.
Key Features
Automatic production line for C and Z steel purlins
PLC control system with touch screen operation
Precision roll forming with stable profile accuracy
Integrated punching and hydraulic cutting system
Strong machine structure for continuous operation
Customizable profile sizes and configurations
Application Areas
The c z purlin machine is suitable for:
Steel structure buildings
Industrial warehouses and factories
Workshops and logistics centers
Agricultural and commercial construction projects
Short Summary
The c z purlin machine delivers stable forming, accurate punching, and reliable cutting, making it an ideal choice for efficient and professional C and Z steel purlin production.
