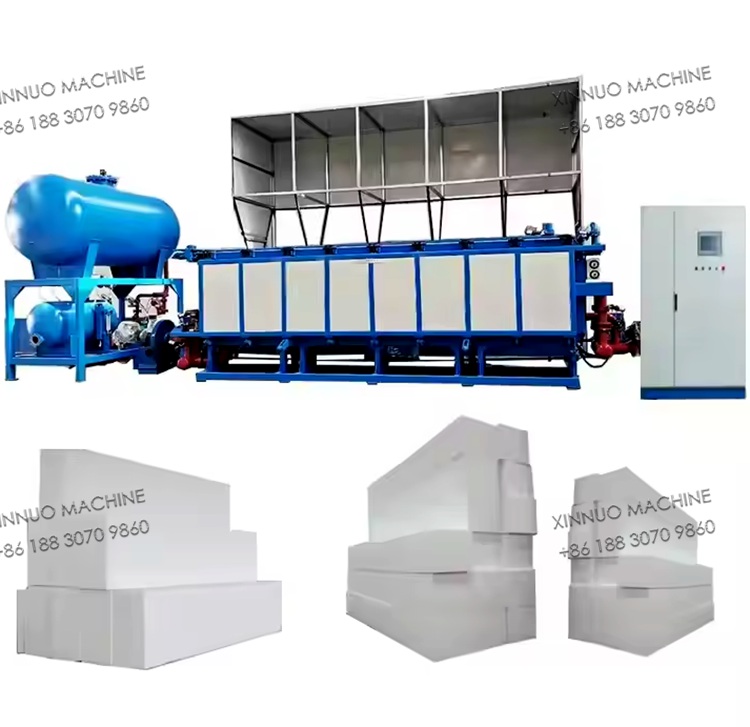

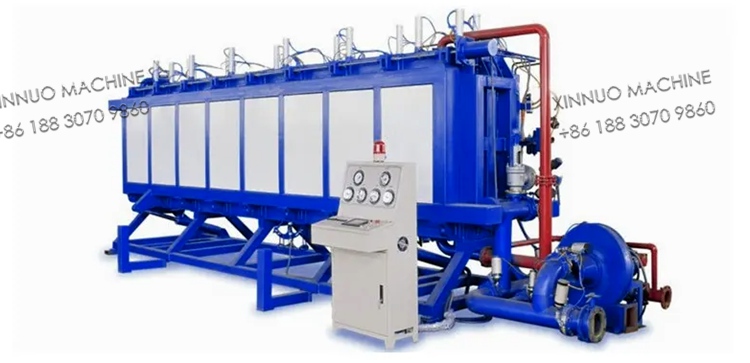

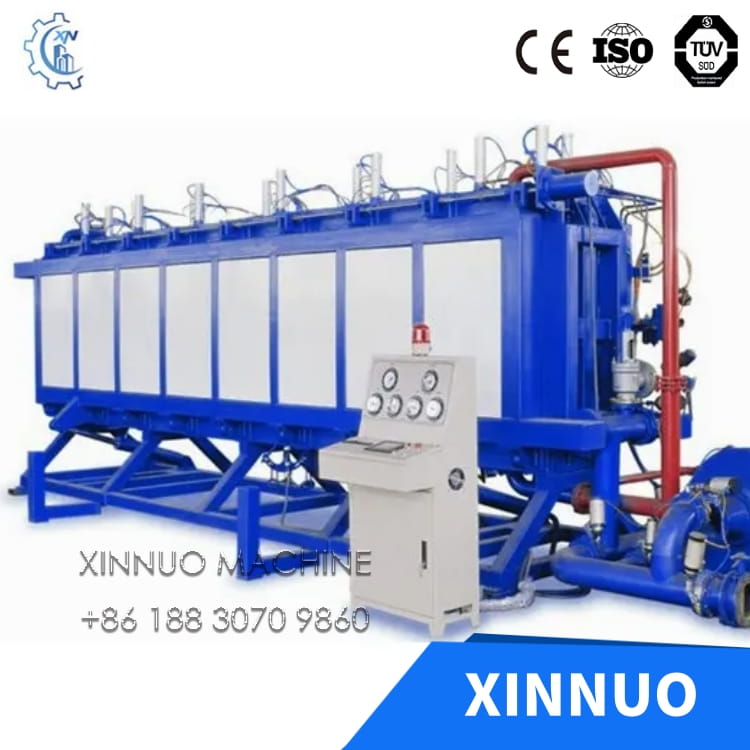

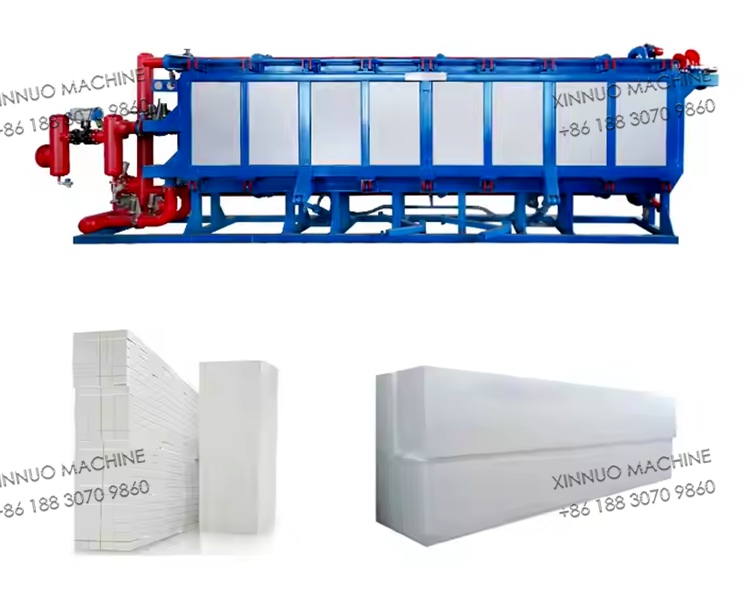

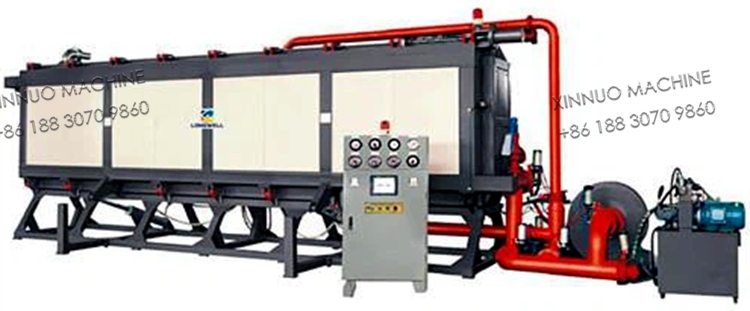

Xinnuo Advanced EPS Block Molding Machine

Introduction

In the rapidly expanding sectors of construction, packaging, and insulation, Expanded Polystyrene (EPS) blocks are fundamental materials, renowned for their lightweight nature, excellent thermal insulation, and versatile applications. The quality and efficiency of EPS block production are paramount to meeting market demands. Xinnuo Roll Forming Machinery, a leader in manufacturing high-performance machinery for the building materials industry, extends its expertise to precision foam processing with the introduction of its advanced EPS Block Molding Machine. This machine is designed to produce high-quality, uniformly dense EPS blocks efficiently and economically, serving as a cornerstone for various downstream applications, including the core material for EPS sandwich panel making machines.

Unleashing Efficiency and Precision in EPS Block Production

The Xinnuo EPS Block Molding Machine is engineered for superior performance, offering a perfect blend of high output, energy efficiency, and operational precision. It is an indispensable asset for manufacturers aiming to produce EPS blocks for diverse applications, from large-scale insulation panels to intricate packaging solutions.

Key Features and Advantages:

High Production Efficiency:

1. Equipped with advanced steam heating systems and efficient vacuum cooling technology, the machine achieves rapid molding cycles, significantly boosting daily production capacity.

2. Optimized mold filling and precise pressure control ensure consistent and fast block formation.

Exceptional Energy Saving:

1. Incorporates intelligent steam management and a high-efficiency vacuum system, drastically reducing steam consumption per ton of EPS.

2. Advanced insulation materials and optimized piping design minimize heat loss, contributing to substantial energy cost savings.

Advanced and User-Friendly Control System:

1. Features a state-of-the-art PLC (Programmable Logic Controller) system (e.g., Siemens or Delta) coupled with a vibrant Human-Machine Interface (HMI) touch screen.

2. Offers precise control over steaming, pressure, temperature, and cycle timing, allowing for easy parameter adjustment, real-time monitoring, and comprehensive fault diagnosis.

Robust and Durable Construction:

1. Built with heavy-duty steel frames, high-quality pressure-resistant components, and corrosion-resistant materials, ensuring exceptional stability, minimal vibration, and a prolonged operational lifespan even under continuous, demanding industrial conditions.

2. The robust design guarantees consistent performance and reduces maintenance frequency.

Versatile Block Production:

1. Capable of molding EPS blocks of various sizes and densities, providing flexibility to meet diverse market demands.

2. Suitable for producing blocks with different expansion ratios, from low-density insulation material to high-density packaging foam.

Superior EPS Block Quality:

1. Ensures uniform block density, excellent dimensional stability, and outstanding cellular structure, crucial for optimal thermal insulation and mechanical strength.

2. Produces blocks with smooth surfaces and minimal water content, enhancing post-processing efficiency.

Comprehensive Safety Features:

1. Integrated with multiple safety interlocks, emergency stop buttons, and pressure relief valves to ensure maximum operator safety and equipment protection during all operational stages.

2. Adherence to international safety standards and regulations.

High Level of Automation:

1. Features automated material feeding, precise steam application, efficient cooling, and automatic demolding, significantly reducing manual intervention and labor costs.

2. Streamlined workflow from raw material to finished block, enhancing overall factory efficiency.

Technical Specifications (Typical Configuration):

• Model: Xinnuo [Specific EPS Machine Model, e.g., XN-EBM-2000]

• Block Dimensions (L x W x H): 2000 x 1200 x 1000 mm (Standard, customizable)

• Block Density Range: 8 - 30 kg/m³

• Molding Cycle Time: 90 - 200 seconds (Dependent on density and block size)

• Steam Pressure: 0.6 - 0.8 MPa

• Steam Consumption: 80 - 150 kg/ton EPS (Varies with density)

• Air Pressure: 0.6 - 0.7 MPa

• Water Consumption: 5 - 10 m³/ton EPS (For cooling and vacuum system)

• Main Motor Power: 15 kW - 30 kW

• Control System: PLC (e.g., Siemens / Mitsubishi / Delta) with Color Touch Screen HMI





• Vacuum System: High-efficiency vacuum pump for rapid cooling and low-density production

• Filling System: Automatic proportional filling gun

• Demolding System: Hydraulic automatic ejection

• Machine Dimensions (Approx.): 4000mm (L) x 2500mm (W) x 3000mm (H)

• Machine Weight (Approx.): 5 - 8 Tons

• Power Requirements: 3 Phase, 380V/50Hz or customized to local standards

Applications:

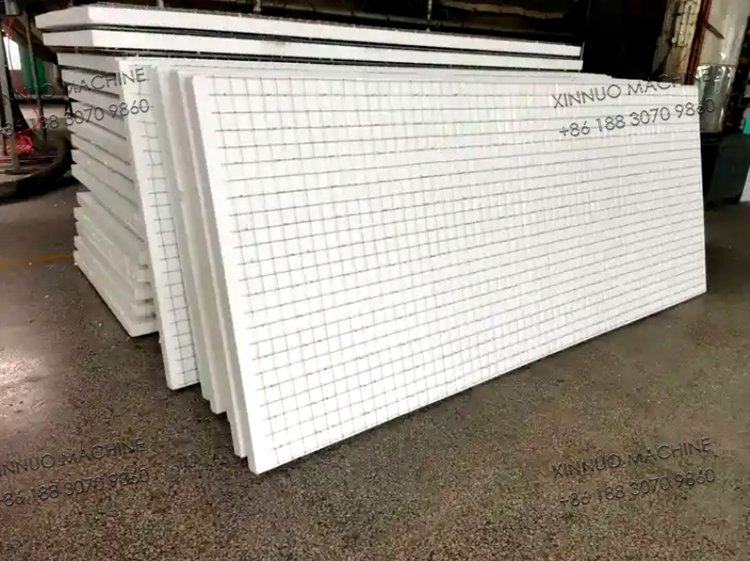

• Building Insulation: High-performance insulation boards for walls, roofs, and floors (e.g., as core for EPS sandwich panel making machine).

• Packaging: Protective packaging solutions for electronics, appliances, and delicate goods.

• Civil Engineering: Lightweight fill material, road construction.

• Decorative Elements: Architectural moldings, artistic forms.

Benefits to Your Business:

• High Return on Investment: Optimized production costs and superior product quality lead to increased profitability.

• Consistent Product Quality: Achieve uniform density and stable dimensions across all manufactured blocks.

• Reduced Operational Costs: Significant savings on energy consumption (steam, power) and labor.

• Increased Production Efficiency: Fast cycle times and automated processes maximize throughput.

• Versatile Production Capabilities: Adapt to diverse market needs by producing various block sizes and densities.

Why Choose Xinnuo?

With over 30 years of unparalleled expertise in manufacturing machinery for the building materials and metal processing industries, Xinnuo Roll Forming Machinery stands as your trusted partner. We are a distinguished National High-tech Enterprise, holding numerous patents, and are steadfastly dedicated to innovation and manufacturing excellence. Our high-performance machines have been successfully exported to 141 countries worldwide, underpinned by robust global sales and comprehensive after-sales support teams. Strategically located near Beijing and Tianjin Port, we guarantee efficient delivery and significantly reduced logistics costs for our esteemed clients globally.

Invest in Quality. Invest in Efficiency. Invest in Xinnuo.

Elevate your EPS block production capabilities with Xinnuo's advanced EPS Block Molding Machine. Contact us today to discuss your specific requirements, receive a detailed customized quotation, and discover how our cutting-edge solutions can enhance your manufacturing processes and market competitiveness.
