At the forefront of specialized construction and insulation technology, Xinnuo Roll Forming Machinery proudly presents its advanced Discontinuous PU/PIR Sandwich Panel Production Line. This cutting-edge discontinuous sandwich panel production line is meticulously engineered to manufacture high-performance Polyurethane (PU) and Polyisocyanurate (PIR) sandwich panels – essential for cold rooms, cleanrooms, and energy-efficient industrial facilities. As a leading provider of Discontinuous polyurethane sandwich panel manufacturing lines, Xinnuo offers unparalleled flexibility and precision in batch production. Our Discontinuous polyurethane sandwich panel line provides a versatile and cost-effective solution, enabling businesses to produce superior quality PU/PIR panels with ultimate control. If you're seeking a robust Discontinuous polyurethane sandwich panel machine or a comprehensive Discontinuous polyurethane sandwich panel making machine, Xinnuo delivers the state-of-the-art Discontinuous polyurethane sandwich panel machinery required for precision manufacturing.
| Parameter | Value (Typical Range, Customizable) |
| Applicable Panel Type | PU (Polyurethane) / PIR (Polyisocyanurate) Sandwich Panels |
| Core Material Density | 30 - 60 kg/m³ (Adjustable through foaming machine parameters) |
| Panel Thickness Range | 30 mm - 250 mm (Standard; thicker options available) |
| Panel Width | 1000 mm, 1150 mm, 1200 mm (Customizable up to 1500 mm) |
| Panel Length | Max 12000 mm (Limited by factory space and transportation logistics) |
| Press Platens Dimensions | (Length x Width) e.g., 12500 mm x 1250 mm (Matches Max Panel Dimensions) |
| Pressing Force | 200 - 500 Tons (Varies with platen size and panel thickness) |
| Number of Press Layers | 1 to 5 layers (Single-daylight or Multi-daylight press configurations) |
| Heating Method | Electric Heating or Thermal Oil Heating (Energy-efficient options) |
| Foaming Machine Type | High-Pressure Foaming Machine (e.g., 20 kg/min to 60 kg/min output) |
| Mixing Head Type | L-type Mixing Head (for precision and versatility) |
| Daily Production Capacity | 200 - 800 sqm/day (Varies significantly with panel thickness, length, and number of press layers) |
| Control System | Advanced PLC (Siemens / Delta) + Intuitive HMI Touch Screen |
| Total Installed Power | 80 kW - 200 kW (Depending on overall configuration and heating method) |
| Required Factory Space | Approx. 30m (L) x 10m (W) x 5m (H) (Excluding raw material storage area) |
A Discontinuous PU/PIR Sandwich Panel Production Line operates on a batch-production principle, fundamentally differing from continuous lines in its method of foam expansion and curing. Instead of a continuous lamination process, individual panels are assembled and cured under a powerful hydraulic press. This method is the optimal choice for manufacturers prioritizing flexibility, product diversity, and efficient batch production, offering several compelling advantages that make our discontinuous sandwich panel production line a smart investment:
--Exceptional Flexibility: The batch-wise nature of this Discontinuous polyurethane sandwich panel manufacturing line allows for rapid and easy changes in panel thickness, length, and even the type of facing materials. This adaptability is invaluable for manufacturers catering to diverse customer orders or specialized project requirements that a continuous line might struggle with.
--Cost-Effectiveness: A Discontinuous polyurethane sandwich panel line typically involves a lower initial capital investment compared to its continuous counterparts. This makes it an attractive and accessible entry point for businesses looking to produce high-quality PU/PIR panels without the massive upfront expenditure of a high-volume continuous system.
--Superior Foam Quality for Thicker Panels: The controlled environment within the hydraulic press enables uniform foam expansion and consistent curing. This is particularly beneficial for producing very thick panels (e.g., up to 250mm or more) where maintaining consistent density and a void-free insulation core across the panel's entire cross-section is absolutely critical.
--Higher Density Potential: The pressing process inherent to a Discontinuous polyurethane sandwich panel machine facilitates achieving higher foam densities, which directly translates to enhanced compressive strength and superior insulation performance for specific, demanding applications.
--Optimized Space Utilization: A complete Discontinuous polyurethane sandwich panel making machine setup generally requires a smaller operational footprint compared to the extensive length of continuous lines, making it an ideal choice for factories with limited available space.
--Reduced Material Waste: The batch nature of this Discontinuous polyurethane sandwich panel machinery allows for more precise raw material consumption based on exact order requirements, significantly minimizing scrap and optimizing resource utilization.
A comprehensive Xinnuo Discontinuous PU/PIR Sandwich Panel Production Line integrates several high-precision components, all working in perfect harmony to ensure efficient and top-quality panel production:
Decoiling & Sheeting System for Facings: This initial section of the discontinuous sandwich panel production line precisely handles the metal coils (e.g., Pre-Painted Galvanized Iron/Steel (PPGI/PPGS), Pre-Painted Galvalume (PPGL), aluminum, or even stainless steel) that will form the top and bottom skins of the sandwich panel. It includes:
--Hydraulic/Manual Decoiler: For smooth and controlled unwinding of the metal coils.
--Film Lamination Unit (Optional): For applying a protective film to the metal surface, safeguarding aesthetics during processing.
--Feeding & Guiding System: Ensures the metal sheet is accurately fed into the cutting machine, maintaining alignment for perfect panel dimensions.
--Hydraulic Shearing Machine: Precisely cuts the metal sheets to the required panel length with clean, burr-free edges.
--Conveyor System: Efficiently transfers the cut metal sheets to the assembly area, preparing them for the next stage of the Discontinuous polyurethane sandwich panel manufacturing line.

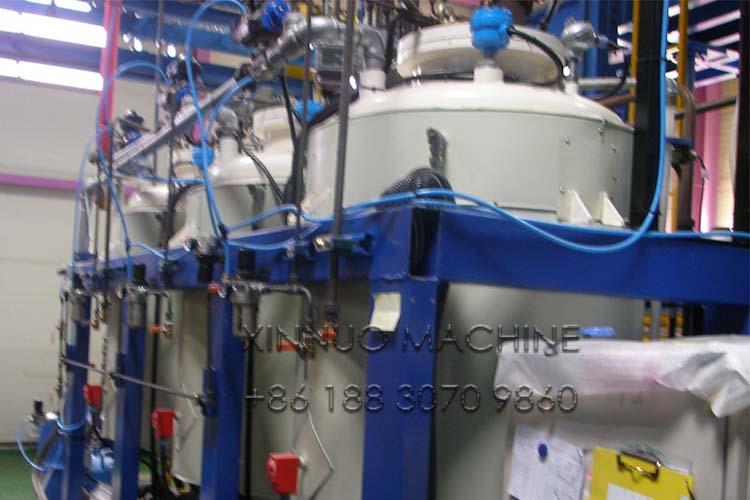

High-Pressure PU/PIR Foaming Machine: This is the critical core equipment of the Discontinuous polyurethane sandwich panel line for producing the insulation material itself.
--Polyol and Isocyanate Tanks: Robust storage tanks for the two primary liquid chemical components of the PU/PIR foam system.
--Metering Pumps: High-precision pumps that precisely control the ratio and flow rate of chemicals, crucial for consistent foam quality and reaction.

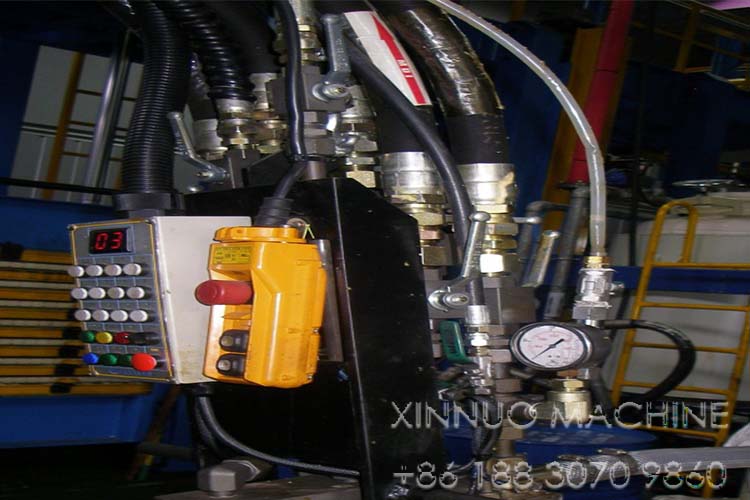

--High-Pressure Mixing Head: The pivotal component where the chemicals are intimately mixed under high pressure just moments before dispensing. This ensures a homogeneous blend and optimal foam expansion.
--Dispensing Unit: Automatically traverses across the lower metal facing, evenly applying the mixed liquid PU/PIR foam, ensuring full coverage and consistent thickness.
--Temperature Control System: Meticulously maintains optimal chemical temperatures, which is vital for a stable reaction and consistently high foam quality within your Discontinuous polyurethane sandwich panel machine.

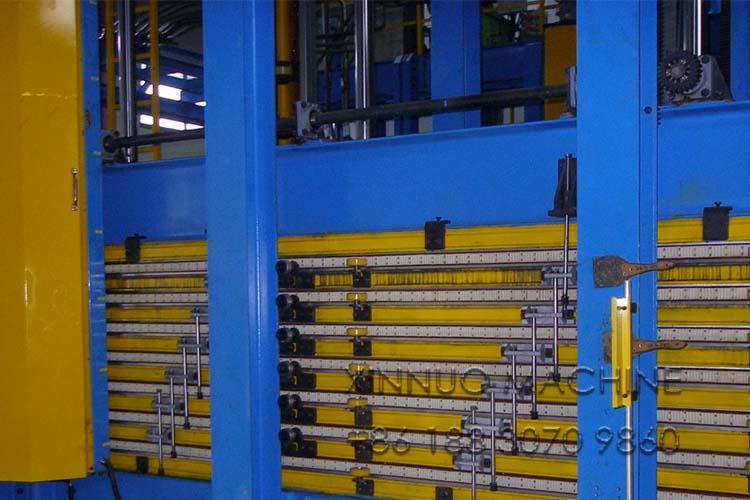

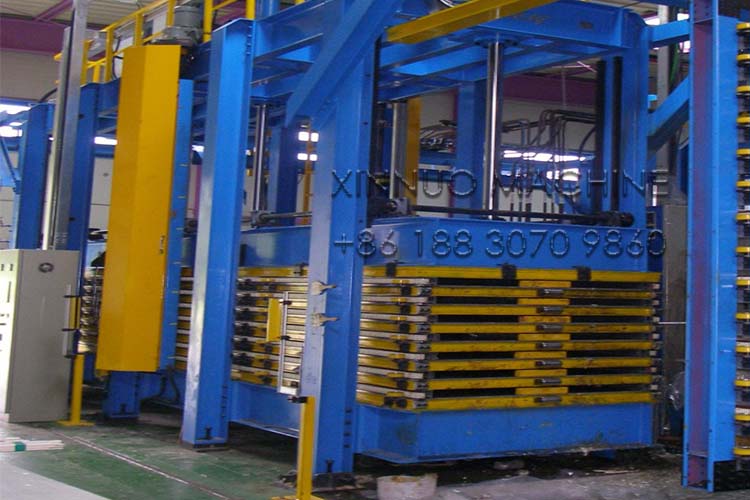

Hydraulic Press (Main Pressing Unit): The central and most powerful component of the Discontinuous polyurethane sandwich panel making machine, where the "sandwich" truly forms.
--Robust Steel Frame: Designed with a heavy-duty, reinforced steel structure to withstand immense and uniform pressing forces during the foam expansion and curing process.

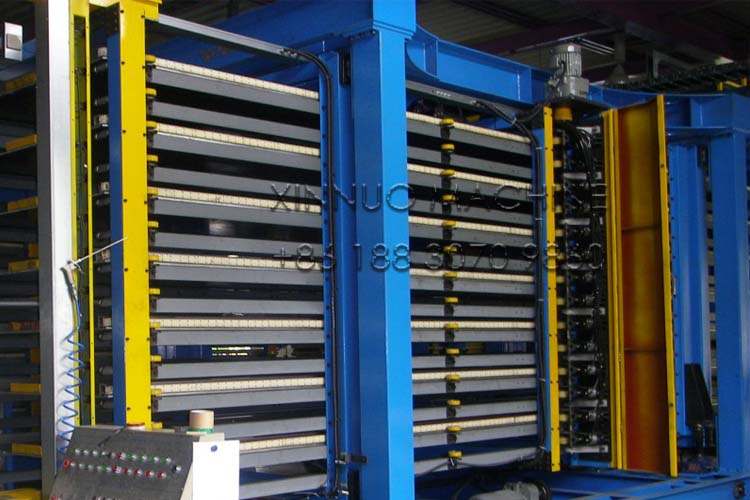

--Multiple Platens/Layers (Optional): Available as single-daylight (for producing one panel at a time) or multi-daylight presses (for simultaneously producing multiple panels), significantly enhancing daily production capacity.
--Heating System: Integrated heating elements (either electric heaters or advanced thermal oil heaters) within the platens maintain the precise temperature required for optimal foam expansion, rapid curing, and strong, permanent adhesion between the foam core and the metal facings.
--Hydraulic Cylinders: Provide uniform and powerful pressing force across the entire panel surface, ensuring consistent panel thickness and flatness.
--Comprehensive Safety Features: Incorporates essential safety mechanisms such as safety light curtains, easily accessible emergency stop buttons, and pressure relief valves to ensure maximum operator protection during operation of this heavy-duty Discontinuous polyurethane sandwich panel machinery.
Panel Conveying and Transfer Systems:
--In-feed Conveyor: Reliably moves the assembled panel (bottom facing with dispensed foam and the top facing carefully placed) into the hydraulic press.
--Out-feed Conveyor: Smoothly transports the fully formed and cured panel out of the press for subsequent trimming operations.
Edge Trimming and Cutting Machine:
--Side Trimming Saws: Precisely trim the excess foam and irregular edges from the long sides of the cured panel, ensuring clean, sharp finishes.
--Cross Cutting Saw: Cuts the long, cured panel into the desired final lengths, with high accuracy.
Stacking System: (Can be manual or integrated with an automated Panel Stacker for maximum efficiency).
--Collects and neatly stacks the finished panels, preparing them efficiently for packaging and immediate storage or dispatch.
Central Control System (PLC & HMI):
--A sophisticated PLC (Programmable Logic Controller) system governs the entire Discontinuous polyurethane sandwich panel production line, ensuring perfect synchronization and precise operation of all integrated components.
--An intuitive Human-Machine Interface (HMI) touch screen provides operators with comprehensive real-time monitoring of all parameters, easy adjustment of settings, efficient recipe management, and robust diagnostic capabilities, guaranteeing seamless and optimized production cycles.
The production of a PU/PIR sandwich panel on a Xinnuo discontinuous sandwich panel production line follows a meticulously orchestrated sequence:
1. Facing Preparation: Metal coils are first unwound, straightened, and precisely cut into the exact lengths required for both the top and bottom facings of the panel. If specified, a protective film is accurately applied to the metal surface.
2. Bottom Facing Positioning: The pre-cut bottom metal facing is carefully positioned on the loading conveyor of the press line, ready for foam application.
3. Foam Dispensing: The high-pressure PU/PIR foaming machine's precision mixing head traverses over the bottom facing, accurately dispensing the precisely mixed liquid chemicals evenly across its entire surface. This crucial step ensures a consistent and high-quality foam core.
4. Top Facing Placement: Immediately after the foam dispensing, the pre-cut top metal facing is carefully placed over the freshly dispensed liquid foam, completing the "sandwich" assembly.
5. Pressing & Curing: The assembled "sandwich" is then efficiently transferred into the heated hydraulic press. The press closes, applying uniform and powerful pressure. Simultaneously, the integrated heating system maintains the precise temperature. Under these controlled conditions, the PU/PIR chemicals react vigorously, expand uniformly, and then bond firmly to both metal facings, curing into a rigid, high-performance, closed-cell foam core. This curing process is vital for achieving optimal insulation properties, compressive strength, and overall panel integrity.
6. Ejection & Transfer: Once the meticulously controlled curing cycle is complete, the press automatically opens, and the fully formed and cured sandwich panel is smoothly ejected onto an out-feed conveyor.
7. Trimming & Finishing: The excess foam and irregular edges from the long sides of the cured panel are then precisely trimmed by automatic side saws. Subsequently, a cross-cutting saw accurately cuts the long panel into the final desired lengths, ensuring precise dimensions for installation.
8. Stacking & Packaging: The finished panels are then efficiently stacked (either manually or automatically via an integrated Panel Stacker), strapped, and prepared for organized storage or immediate shipment to project sites.
The high-performance PU/PIR panels produced by Xinnuo's Discontinuous PU/PIR Sandwich Panel Production Line are indispensable for a wide array of demanding applications:
Cold Rooms & Freezing Chambers: Providing superior, airtight insulation critical for maintaining ultra-low temperatures efficiently and economically.
Cleanrooms & Controlled Environments: Essential for creating and maintaining sterile conditions in pharmaceutical, medical, and electronics manufacturing facilities due to their precise construction and high thermal performance.
Industrial & Commercial Buildings: Ideal for high-performance wall and roof cladding for factories, warehouses, shopping centers, and offices requiring excellent thermal envelopes and enhanced fire resistance.
Modular & Prefabricated Structures: Enabling the rapid assembly of high-efficiency, energy-saving buildings.
Fire-Rated Partitions: PIR panels, in particular, offer enhanced fire properties for internal divisions and fire compartments.
Telecommunication Shelters & Energy Efficient Housing: Where consistent temperature control and energy saving are paramount.
Xinnuo Roll Forming Machinery is not merely a supplier; we are your strategic partner, deeply invested in your manufacturing success. Choosing Xinnuo for your Discontinuous polyurethane sandwich panel manufacturing line ensures a long-term collaboration built on trust, innovation, and unparalleled support.
Decades of Proven Expertise: With over 29 years of unparalleled experience in the cold roll forming machine industry, we bring profound knowledge and practical expertise to every project, particularly in the domain of sandwich panel production lines (including both continuous and discontinuous systems).
Technological Leadership & Innovation: As a National High-tech Enterprise with over ten active patents, our dedicated R&D team relentlessly innovates. This commitment translates into integrating the latest advancements in automation, precision control, and energy efficiency into every Discontinuous polyurethane sandwich panel line we deliver.
Customization Excellence: We recognize that every client's needs are unique. Our expert design team collaborates closely with you to tailor the Discontinuous polyurethane sandwich panel machine to your specific panel dimensions, desired production capacity, and existing factory layout, ensuring a perfect fit.
Global Trust and Comprehensive Support: Having successfully exported our cutting-edge Discontinuous polyurethane sandwich panel making machinery to 141 countries across the globe, we boast extensive international project experience. Our comprehensive after-sales service, including professional installation guidance, thorough operator training, readily available spare parts, and responsive technical assistance, ensures seamless operation and maximized uptime for your investment.
Uncompromising Quality Assurance: From meticulous raw material sourcing for our own machine components to precision machining and rigorous final assembly, every Xinnuo Discontinuous polyurethane sandwich panel machinery undergoes stringent multi-stage quality control checks. Our robust construction guarantees exceptional durability and consistently reliable performance over decades of operation.
Strategic Logistical Advantage: Our prime location near the bustling Beijing and Tianjin Ports provides a significant logistical benefit, enabling us to guarantee timely and cost-effective shipping of your equipment to any destination worldwide.
Investing in a Xinnuo Discontinuous PU/PIR Sandwich Panel Production Line means investing in superior panel quality, versatile manufacturing capabilities, and securing a sustainable competitive advantage in the high-demand insulated panel market. Let us help you achieve new benchmarks in efficiency and product excellence.
Contact Xinnuo Roll Forming Machinery today to discuss your vision for producing superior PU/PIR sandwich panels. Our experts are ready to provide a customized solution and detailed quotation tailored to your exact manufacturing needs.
Xinnuo Machinery Co., Ltd., established in 1995, is a subsidiary of Hebei Xinnuo Roll Forming Machine Co., Ltd., previously known as Botou Huayu Roll Forming Machine Factory. We focus on the design, manufacturing, and sales of cold-formed machinery, offering a broad range of high-performance equipment.
Our star product, the sandwich panel production line, is one of our most popular machines and has been exported to countries across the globe. Renowned for its high efficiency and versatility, this machine is key in the production of insulated panels used in various industries. Our commitment to innovation is reflected in the over ten patents we hold, and our recognition as a National High-Tech Enterprise further solidifies our reputation as an industry leader.
