Product Attributes :
Develivery time:30-45 days
Model: automatic c purlin roll forming machine
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860

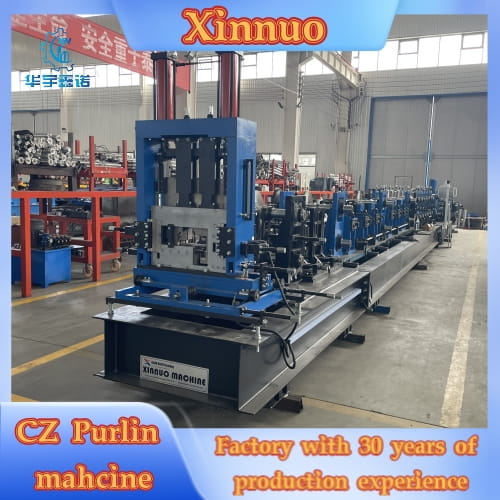

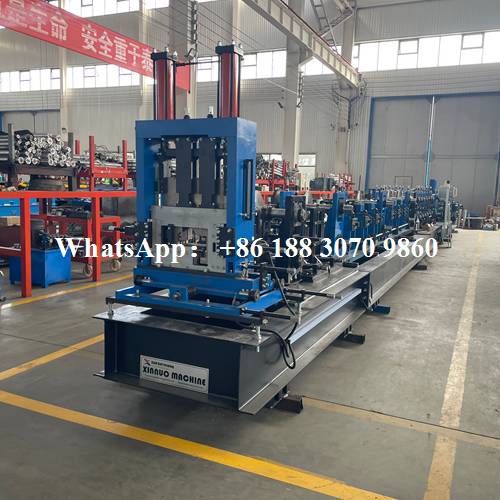

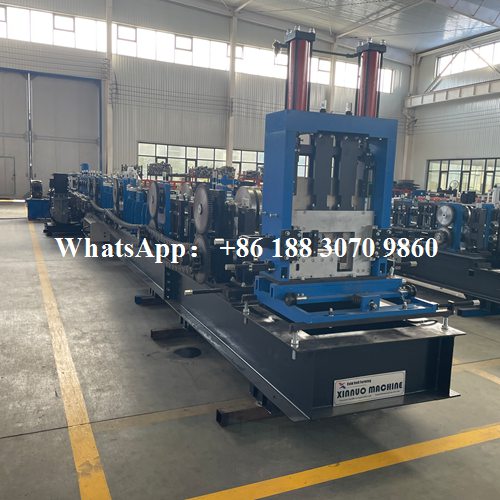

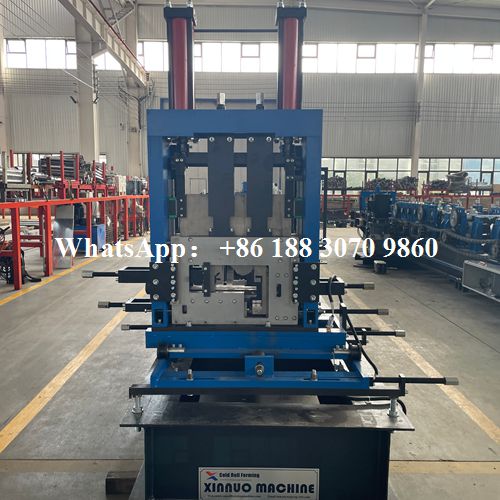

This purlin roll forming machine is a fully automatic production line designed for manufacturing high-strength C and Z purlins used in steel structure buildings. The complete line integrates decoiling, leveling, automatic punching, roll forming, flying cutting, and finished product discharge, ensuring continuous and efficient production.
| Name | purlin roll forming machine |
| Suitable to process | Galvanized steel strips/cold rolled strips |

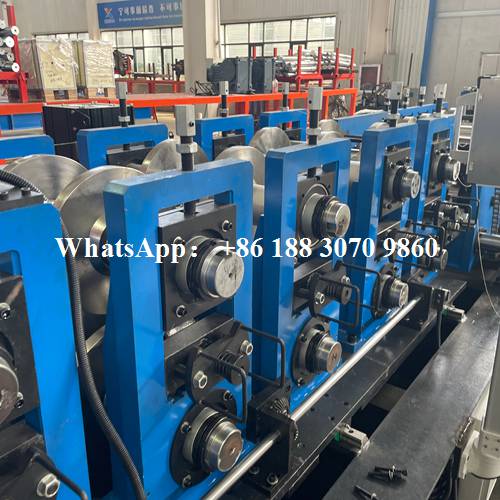

| Roller | 16Rows(Before and after the leveling and contains no lead to send passes) |
| Dimensions | 11*1.3*1.5m |
| Motor Power | 11Kw*2 |
| Pump Station Motor | 7.5Kw.Lichao Brand |
| Thickness of the plate | 1.0mm-3.0mm |
| Productivity | 10-15m/min |
| Material of the cutting blade | Cr12MoV,Quenched treatment 58ºC-60ºC |
| Diameter of the roller | 85mm |
| Weight | About 8500Kgs |
| Main structure of the machine | 450 H Beams |
| Processing precision | Within 1.0mm |
| Side panel of machine | 20mm |
| Side panel of machine | 2 Inch |
| Voltage | 380V 50Hz 3phases or as customer’s need |
| Control system | PLC control (Delta) or as customer’s need |
| Frequency system | Delta or as customer’s need |
| Drive mode | Motor driver |
| Touch screen | Delta or as customer’s need |

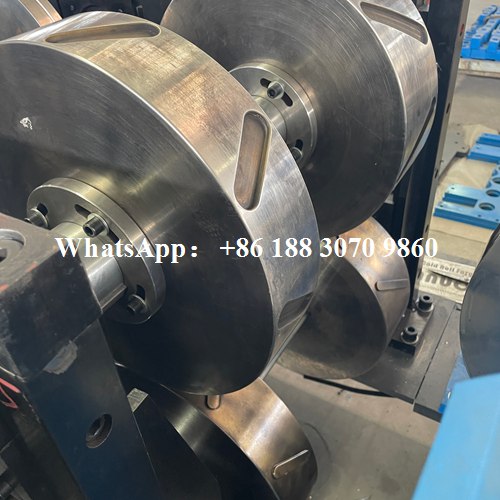

| Rolling materials | GCr15(bearing steel)hard chrome plated after heat treatment |
| Length Tolerance | ±2mm |
| Type of cutting | Length-set cutting Guiding pipe |
| Hydraulic cutter | |
| Each side one Oil cylinder |

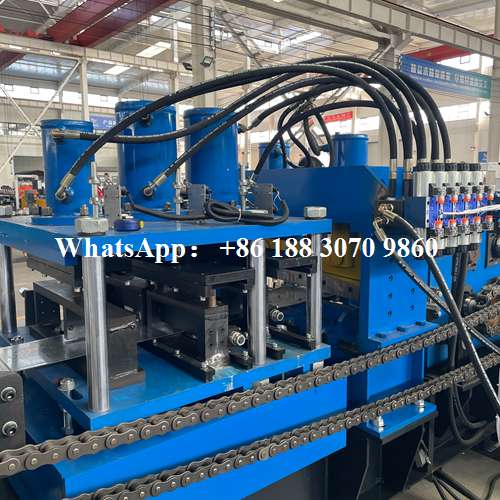

The machine is equipped with a fully automatic punching system, allowing precise hole positioning and consistent punching quality without stopping the line. The purlin profiles feature lipped edges and double stiffening ribs, improving load-bearing capacity and structural stability.

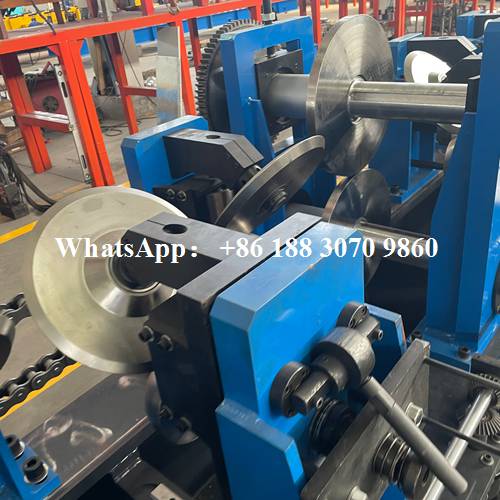

This purlin roll forming machine supports manual C/Z profile change, providing a cost-effective solution for customers who require both C and Z purlins without investing in a fully automatic change system. The forming size can be adjusted easily according to different project requirements.

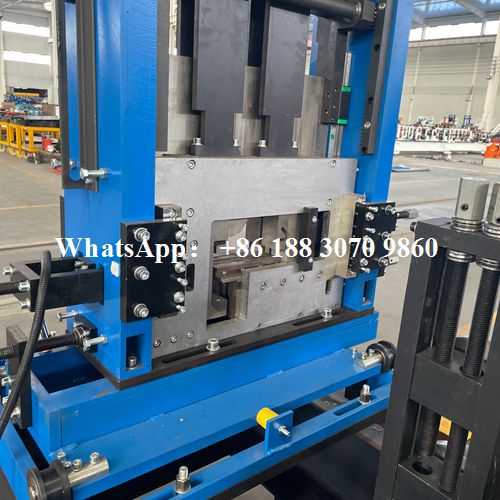

The infinite length cutting system ensures smooth, high-speed cutting with accurate length control and clean cutting edges, reducing material waste and improving overall production efficiency.
Designed for stable operation and long service life, this machine is suitable for galvanized steel and black steel coils, making it an ideal solution for professional purlin manufacturers.
