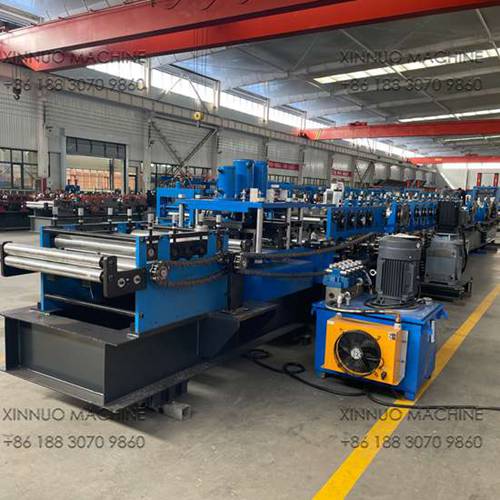

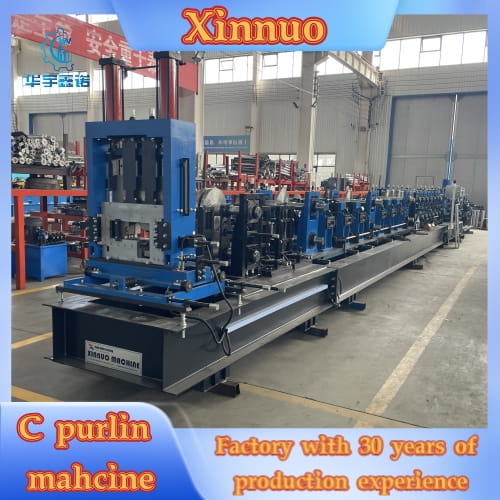

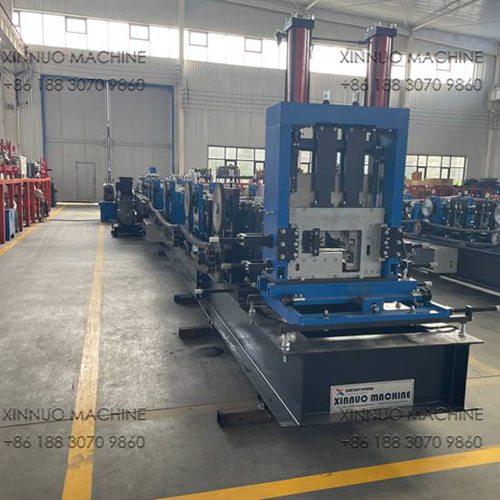

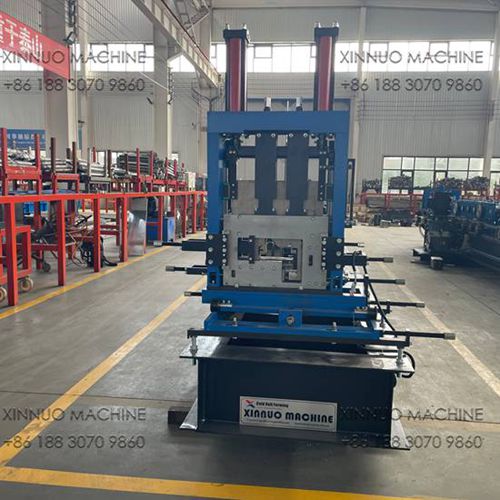

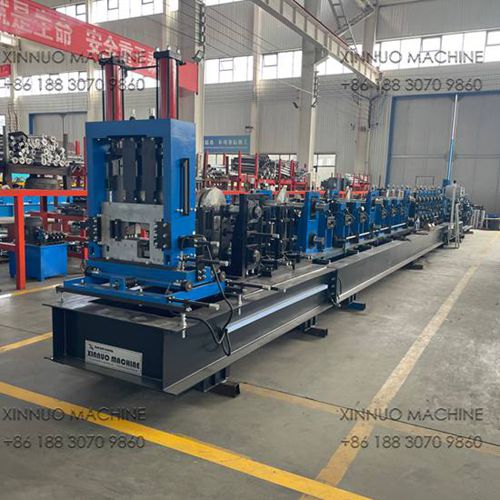

The CZ purlin roll forming machine is designed for efficient production of C and Z steel purlins used in steel structure buildings, warehouses, and industrial projects. With a fast automatic size change system, one machine can produce multiple C and Z profiles, improving productivity and reducing tooling costs.

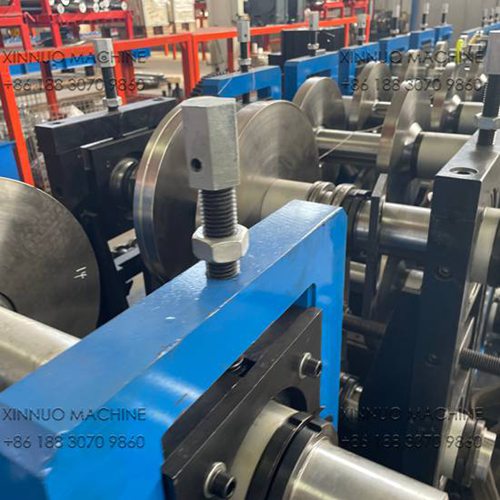

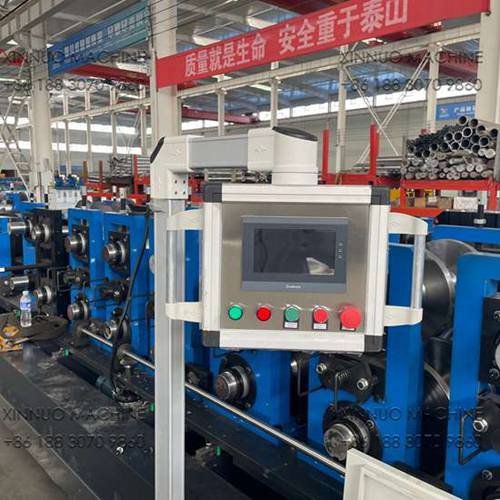

This CZ purlin roll forming machine adopts high-precision rollers, hardened shafts, and a stable frame structure to ensure accurate profile dimensions and long service life. The PLC control system allows easy operation, quick profile switching, and precise length cutting with minimal material waste.
| Name | cz purlin roll forming machine |
| Suitable to process | Galvanized steel strips/cold rolled strips |

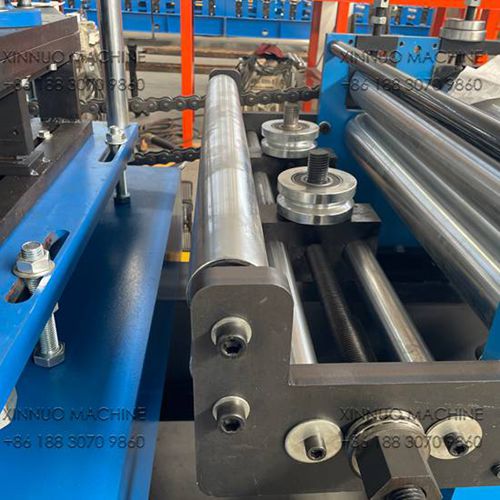

| Roller | 16Rows(Before and after the leveling and contains no lead to send passes) |
| Dimensions | 11*1.3*1.5m |
| Motor Power | 11Kw*2 |
| Pump Station Motor | 7.5Kw.Lichao Brand |
| Thickness of the plate | 1.0mm-3.0mm |
| Productivity | 10-15m/min |
| Material of the cutting blade | Cr12MoV,Quenched treatment 58ºC-60ºC |
| Diameter of the roller | 85mm |
| Weight | About 8500Kgs |
| Main structure of the machine | 450 H Beams |
| Processing precision | Within 1.0mm |
| Side panel of machine | 20mm |
| Side panel of machine | 2 Inch |
| Voltage | 380V 50Hz 3phases or as customer’s need |
| Control system | PLC control (Delta) or as customer’s need |
| Frequency system | Delta or as customer’s need |
| Drive mode | Motor driver |
| Touch screen | Delta or as customer’s need |
| Rolling materials | GCr15(bearing steel)hard chrome plated after heat treatment |
| Length Tolerance | ±2mm |
| Type of cutting | Length-set cutting Guiding pipe |
| Hydraulic cutter | |
| Each side one Oil cylinder |
Our machine supports customized web width, flange height, thickness range, and punching patterns according to project requirements. The CZ purlin roll forming machine can process galvanized steel and black steel coils, ensuring smooth forming and consistent quality for long-term continuous production.
As a manufacturer with over 30 years of experience in roll forming equipment, we provide complete technical support, installation guidance, and reliable after-sales service worldwide.
