Product Attributes :
Develivery time:30-45 days
Model: automatic c purlin roll forming machine
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860
| Name | Purlin Machine |
| Suitable to process | Galvanized steel strips/cold rolled strips |

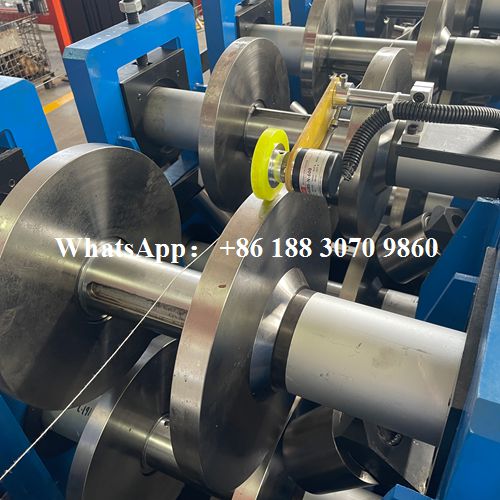

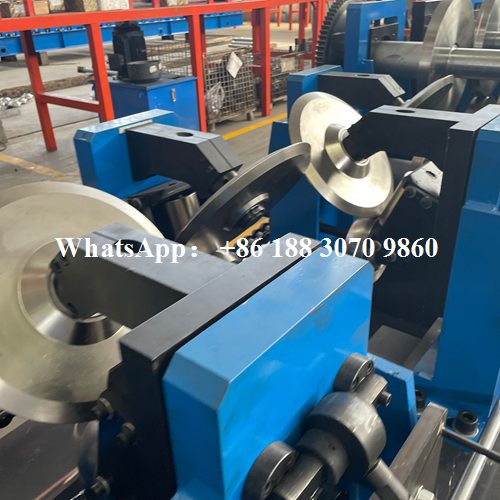

| Roller | 16Rows(Before and after the leveling and contains no lead to send passes) |
| Dimensions | 11*1.3*1.5m |
| Motor Power | 11Kw*2 |
| Pump Station Motor | 7.5Kw.Lichao Brand |
| Thickness of the plate | 1.0mm-3.0mm |
| Productivity | 10-15m/min |
| Material of the cutting blade | Cr12MoV,Quenched treatment 58ºC-60ºC |

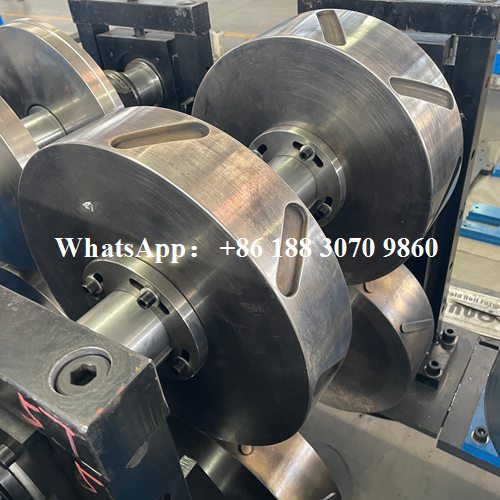

| Diameter of the roller | 85mm |
| Weight | About 8500Kgs |
| Main structure of the machine | 500+ 450 H Beams |
| Processing precision | Within 1.0mm |
| Side panel of machine | 20mm |
| Side panel of machine | 2+2.5 Inch |
| Voltage | 380V 50Hz 3phases or as customer’s need |
| Control system | PLC control (Delta) or as customer’s need |
| Frequency system | Delta or as customer’s need |
| Drive mode | Motor driver |
| Touch screen | Delta or as customer’s need |
| Rolling materials | GCr15(bearing steel)hard chrome plated after heat treatment |
| Length Tolerance | ±2mm |
| Type of cutting | Length-set cutting Guiding pipe |
| Hydraulic cutter | |
| Each side one Oil cylinder |

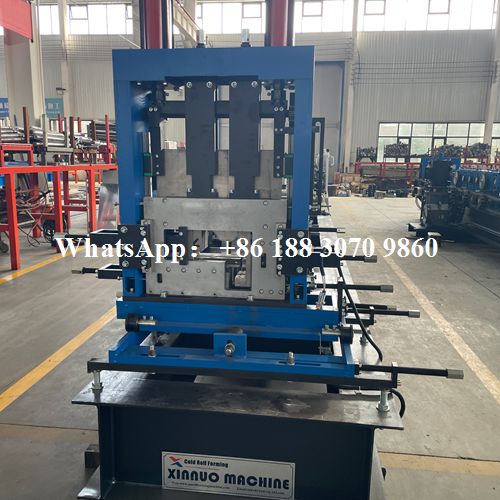

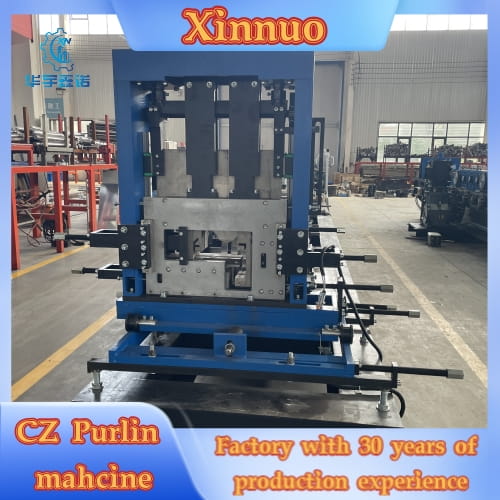

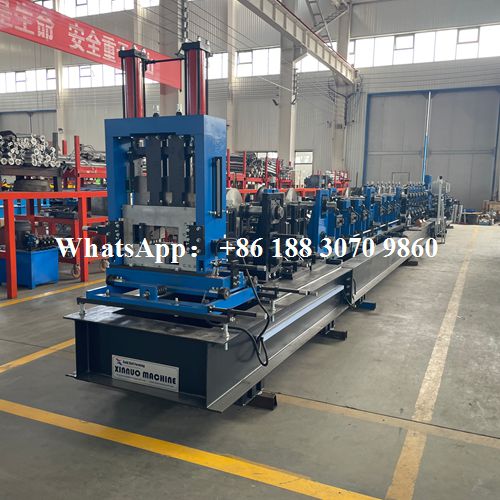

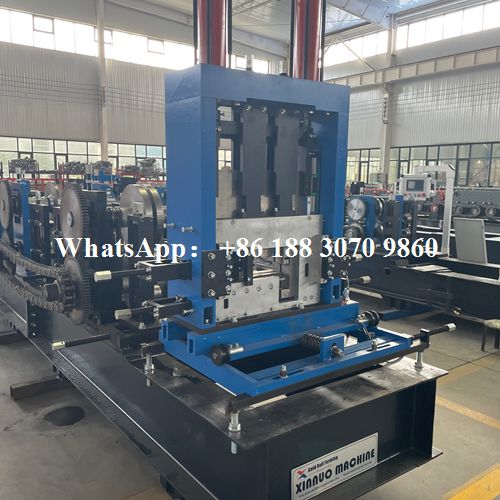

This purlin machine is designed for efficient production of C and Z steel purlins for steel structure buildings. The machine features a manual C/Z change system, allowing flexible switching between C and Z profiles with a simple adjustment, providing a cost-effective solution for manufacturers.
The purlin profiles are formed with reinforced lipped edges and strengthened double ribs, which significantly improve structural strength and load-bearing performance. This design ensures high stability and durability of the finished purlins.

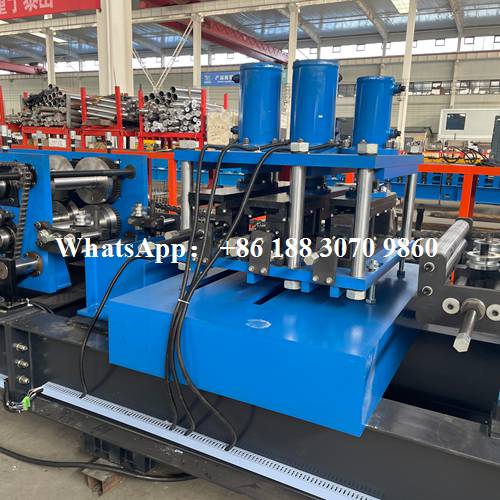

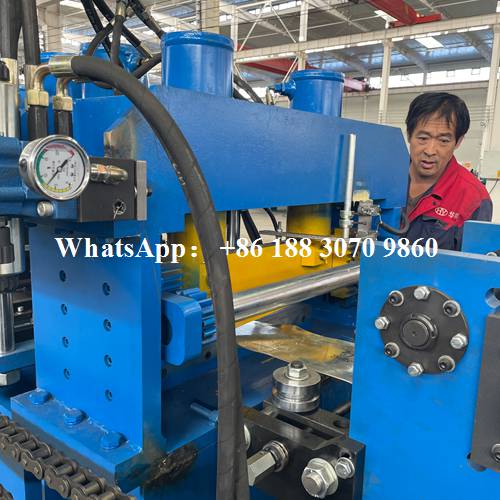

Equipped with a fully automatic hydraulic punching system, the machine delivers precise hole positioning and consistent punching quality. The punching process is integrated into the production line to maintain high efficiency and reduce manual operation.
The front cutting system allows cutting before forming, ensuring clean cutting edges and accurate length control. This design is especially suitable for projects requiring high punching and cutting accuracy.
With stable performance and reliable structure, this purlin machine is suitable for continuous production using galvanized or black steel coils.
