Develivery time:30-45 days

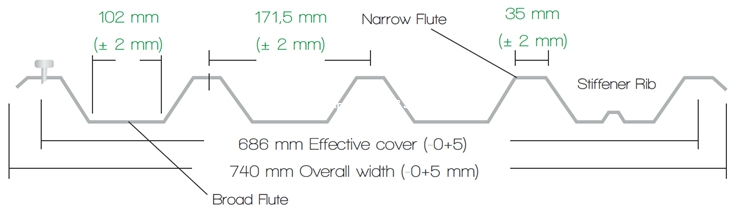

Model: IBR686
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860

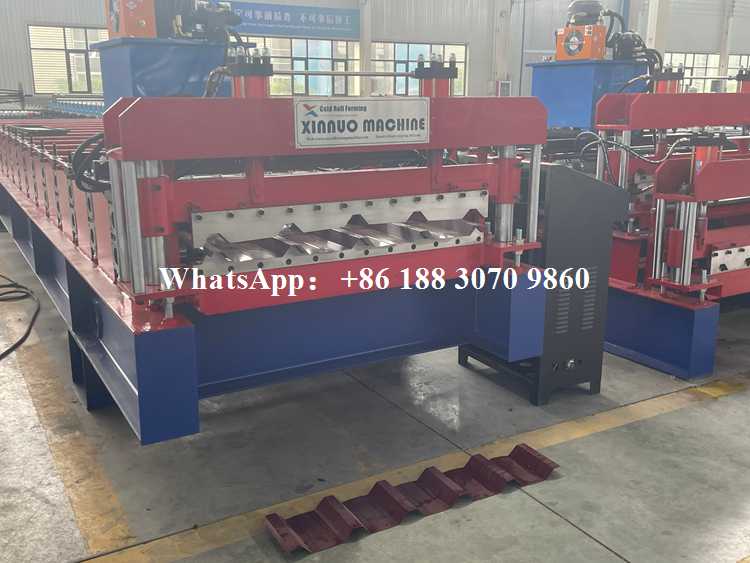

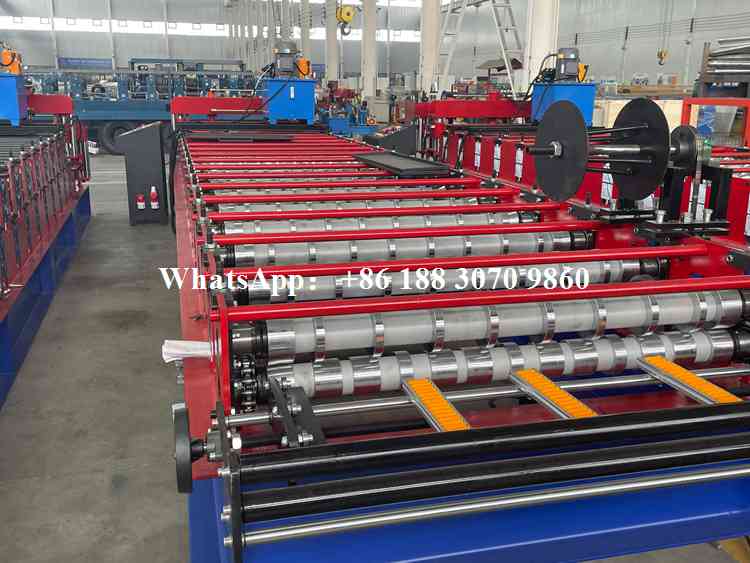

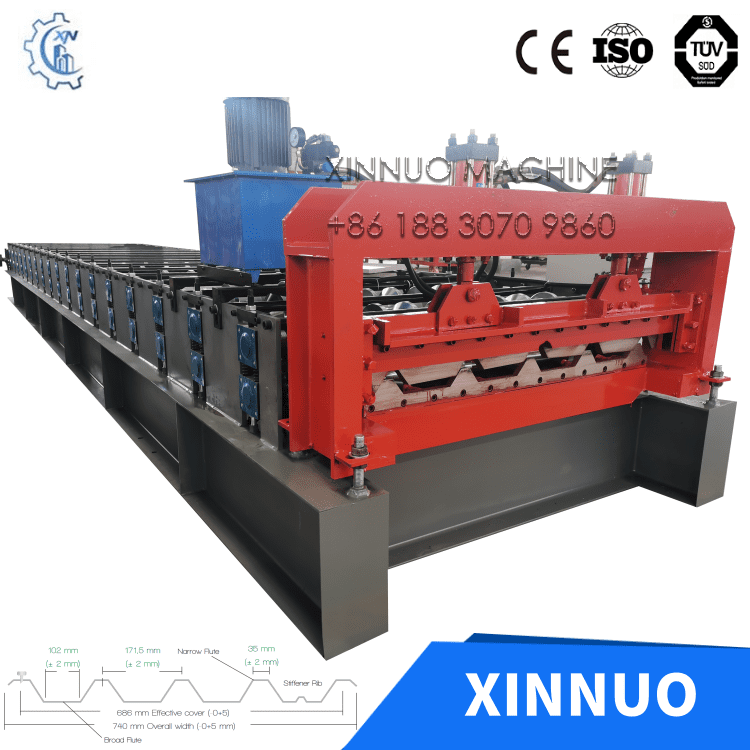

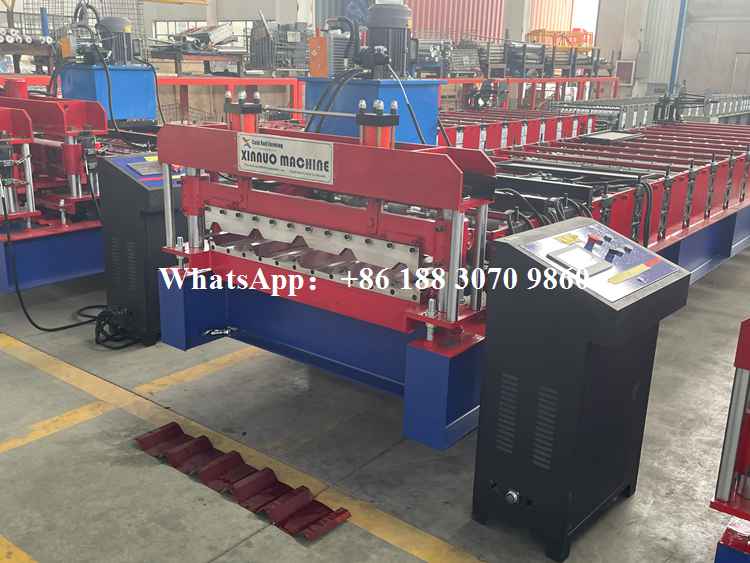

ibr roof sheeting machine
ibr roof sheeting machine with different models based on different designs or customer’s samples.It is a new building material, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.
| No. | ibr roof sheeting machine | |
| 1 | Suitable to process | Color alu-zinc steel coil |

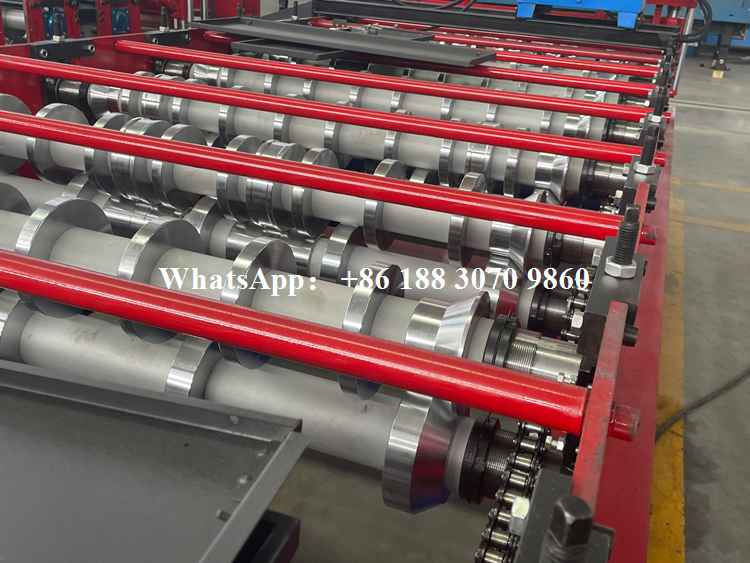

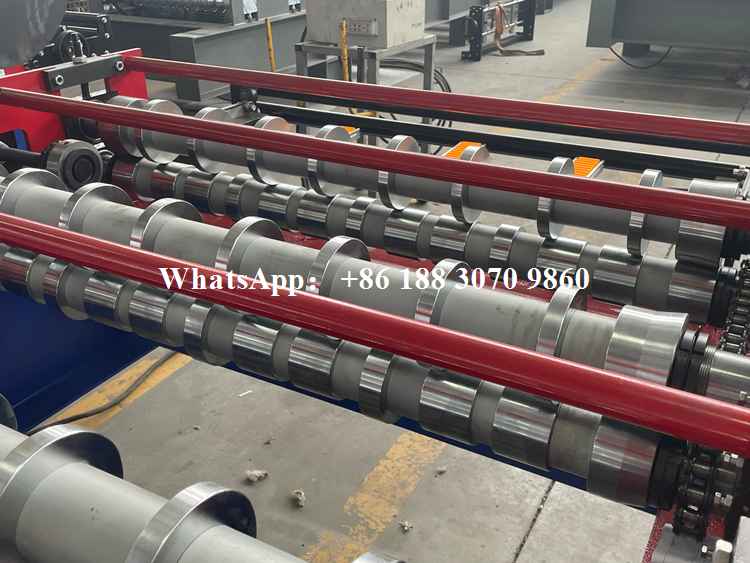

| 2 | Roller | 18Rows |
| 3 | Dimensions | 9.0*1.7*1.8m |
| 4 | Motor Power | 5.5Kw |
| 5 | Pump Station Motor | 4Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |

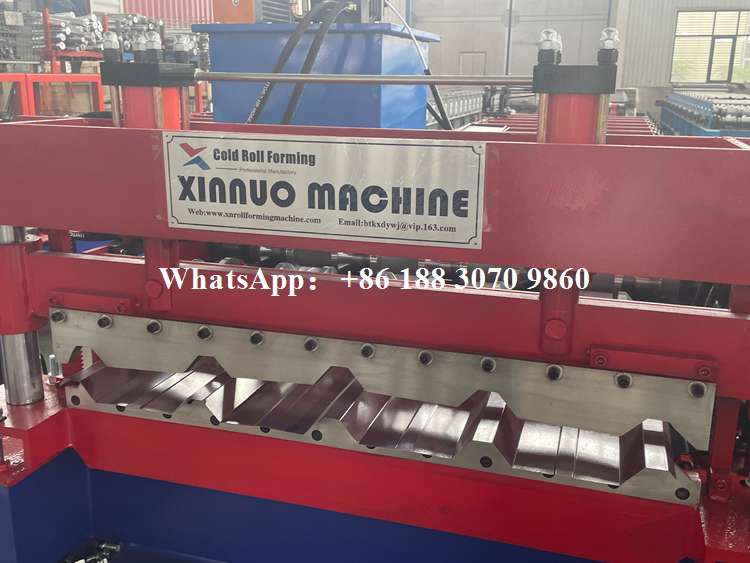

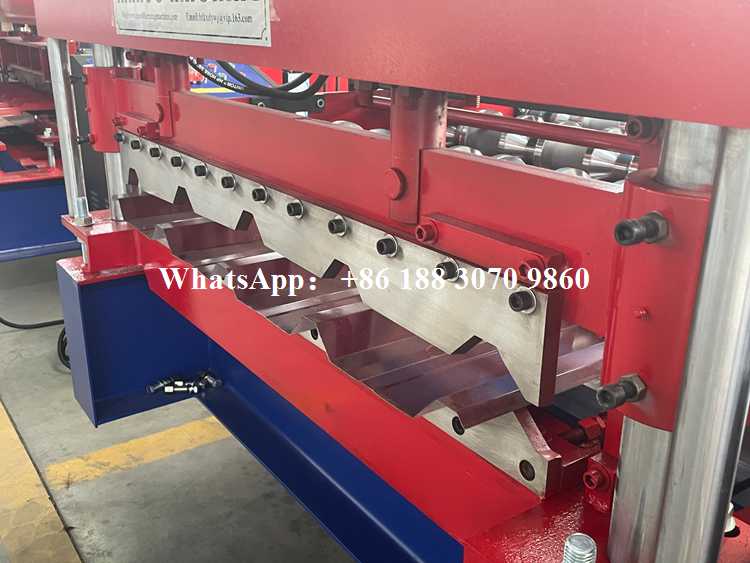

| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 4800kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
After-Sales Service – IBR Roof Sheeting Machine
Warranty
We provide 24 months warranty for the IBR roof sheeting machine. During this period, any parts damaged due to quality issues will be replaced free of charge. We also guarantee lifetime technical support for all our equipment.
Delivery Time
Standard delivery is 25–35 working days after receiving the advance payment. For customized machines, delivery time may be adjusted accordingly.
Service Guarantee
Free service for 24 months (including parts replacement due to quality problems).
Paid service for the whole machine lifetime, covering spare parts and on-site support if required.
Installation & Training
If customers visit our factory, we will provide face-to-face training for machine installation, operation, and maintenance.
For overseas installation, we can dispatch professional technicians to the customer’s site for guidance. The buyer will cover visa, round-trip tickets, accommodation, and labor costs.
Remote technical support is always available through video calls, emails, or online tools.
