Develivery time:30-45 days
Model: IBR686
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860

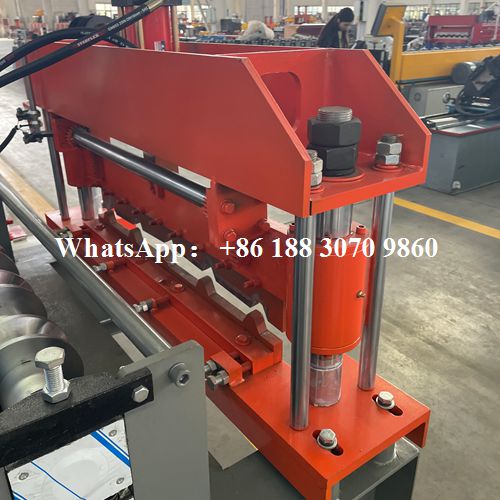

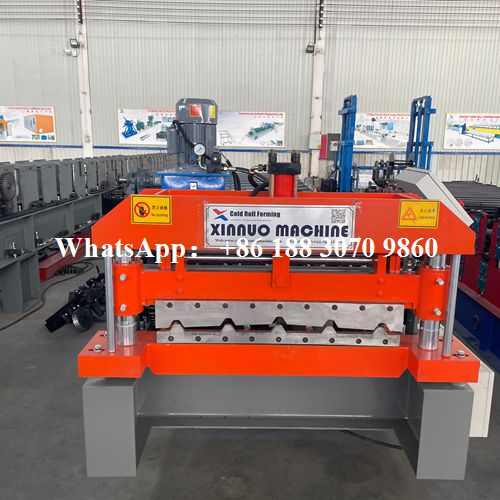

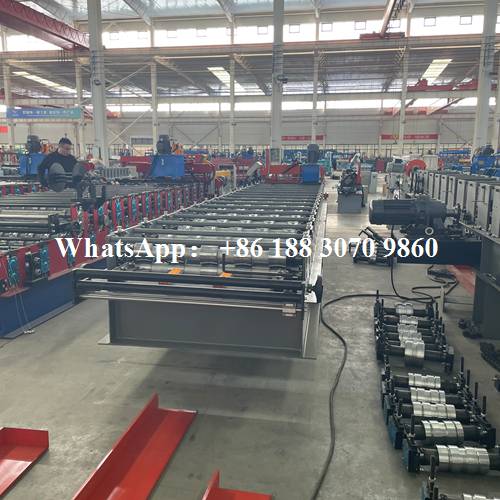

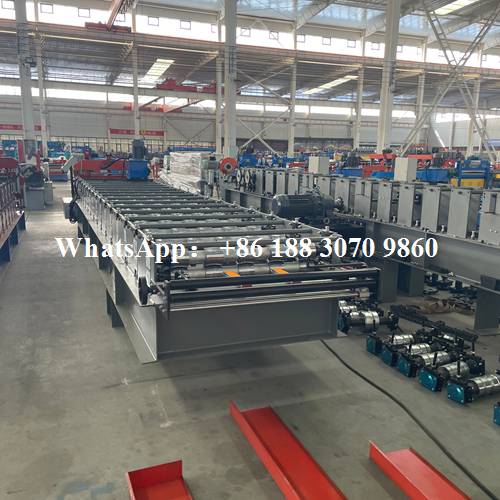

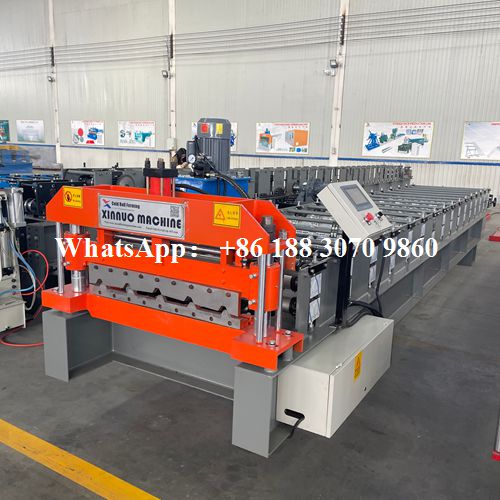

The ibr roofing sheet making machine is designed for the continuous production of IBR metal roofing sheets used in industrial, commercial, and residential building projects. It forms flat steel coils into precise IBR profiles with consistent shape and clean edges, meeting the demands of modern roofing applications.
| ibr roofing sheet making machine | |
| Suitable to process | Color alu-zinc steel coil |
| Roller | 18Rows |
| Dimensions | 9.0*1.7*1.8m |
| Motor Power | 5.5Kw |
| Pump Station Motor | 4Kw.Lichao Brand |
| Thickness of the plate | 0.3-0.8mm |
| Productivity | 10-15m/min |
| Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| Diameter of the roller | Φ70mm |
| Weight | About 4800kgs |
| Main structure of the machine | 350H beams |
| Processing precision | Within 1.0mm |
| Side panel of machine | 16mm |
| Chain Wheel and Cycle Chain | 1 Inch |
| Voltage | 380V 50Hz 3phases or as customer’s need |
| Control system | PLC control (Delta) |
| Frequency system | Delta |
| Drive mode | Motor driver |
| Touch screen | Delta |
| Rolling materials | 45# forging steel with chromium plate |
| Length Tolerance | ±2mm |
This ibr roofing sheet making machine focuses on production stability and repeatable quality. Steel coils are smoothly guided through the forming stations, allowing uniform pressure distribution during shaping. As a result, finished roofing sheets maintain straightness and accurate profile geometry, even during long production runs.
Operation of the ibr roofing sheet making machine is straightforward and efficient. With an automatic control system, operators can easily set sheet length, cutting parameters, and running speed. Accurate cutting ensures each roofing sheet is ready for installation, reducing on-site adjustments and material waste.

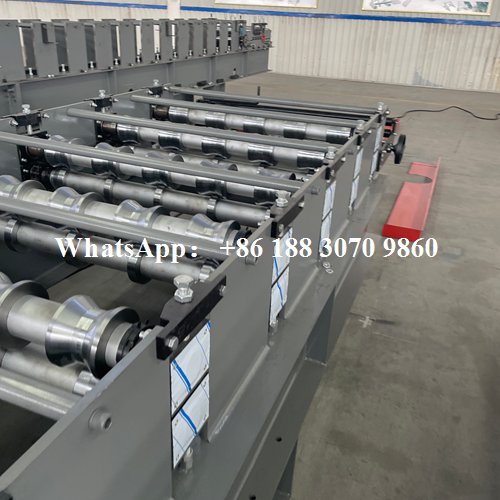

Built with a rigid machine structure and precision-manufactured rollers, the ibr roofing sheet making machine supports long-term operation in demanding production environments. The robust design minimizes vibration and wear, helping reduce maintenance requirements and downtime.
The ibr roofing sheet making machine is suitable for processing galvanized steel, pre-painted steel, and other commonly used roofing materials. Configuration options can be adjusted according to customer requirements, allowing manufacturers to adapt to different market needs and project specifications.
By combining stable forming performance, reliable operation, and flexible configuration, the ibr roofing sheet making machine serves as a practical production solution for roofing sheet manufacturers seeking consistent output and long-term value.
