Develivery time:30-45 days
Model: IBR686
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860

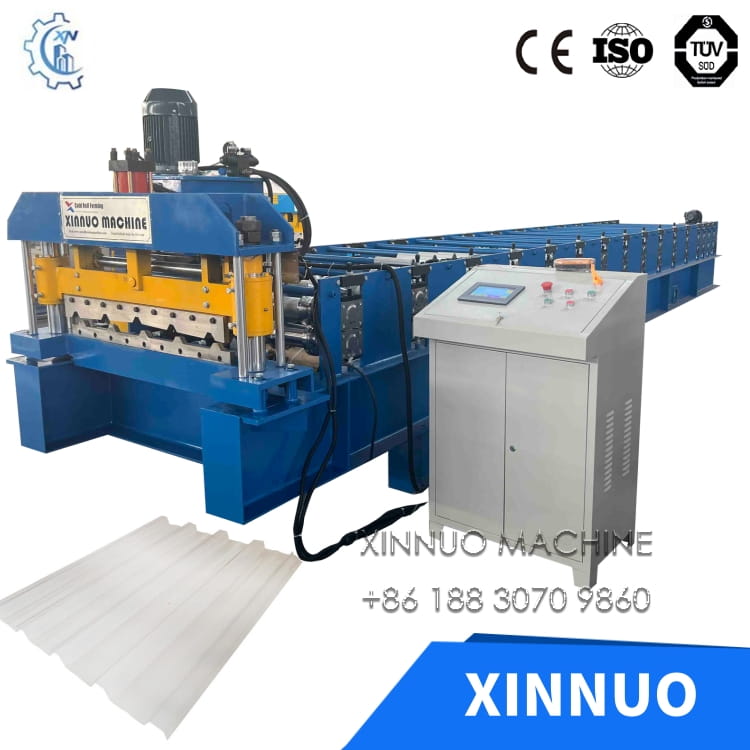

ibr roll forming machine for sale
1. As an investor, it is the best choice, the price is very cost-effective and can be customized according to customer needs!
2. The raw materials used are well-known Chinese brands, and the raw materials from China's top companies are very trustworthy!
3. The PLC control system is independently developed by our factory. It is easier to operate and more user-friendly! It is a necessary method in the mechanized era and can improve efficiency！
| No. | ibr roll forming machine for sale | |
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | 18Rows |
| 3 | Dimensions | 9.0*1.7*1.8m |
| 4 | Motor Power | 5.5Kw |
| 5 | Pump Station Motor | 4Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 4800kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |

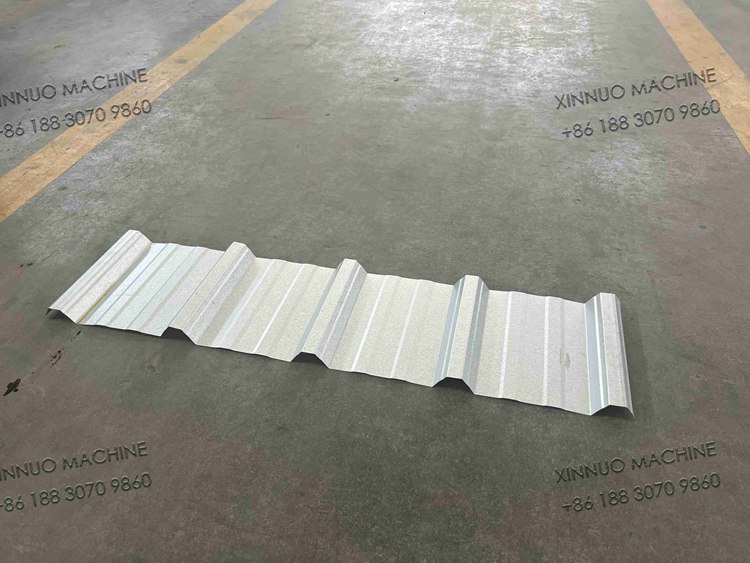

ibr roll forming machine for sale with different models based on different designs or customer’s samples.It is a new building material, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.
1. Warranty :Two years,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25-35 working days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
workers/technician face to face.
