Develivery time:30-45 days
Model: IBR686
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860

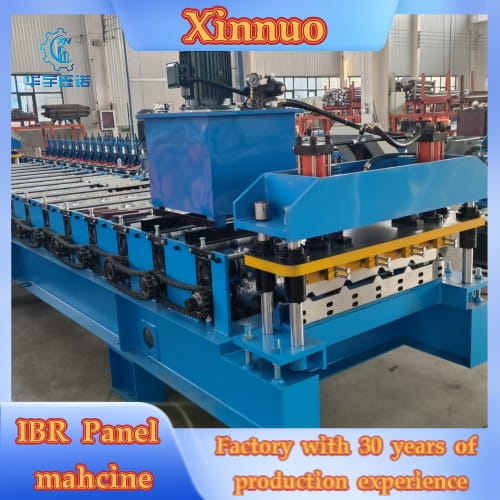

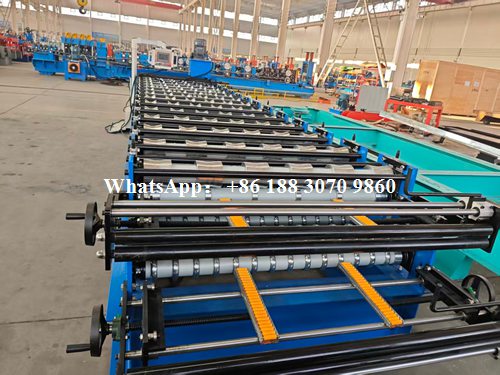

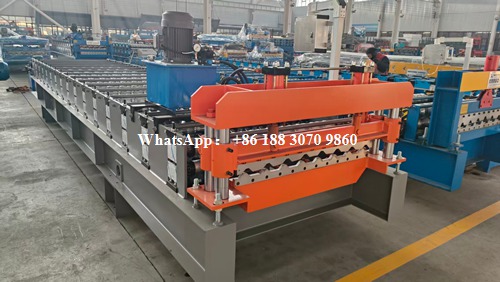

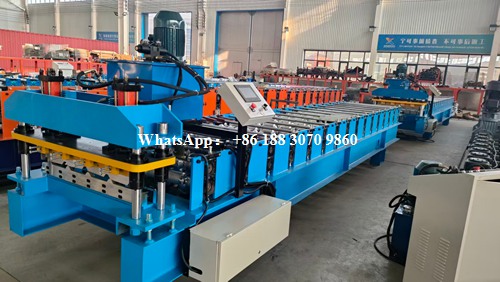

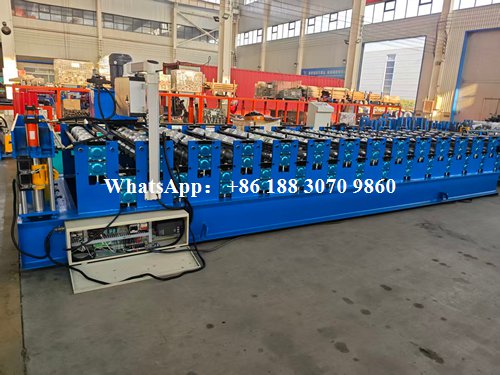

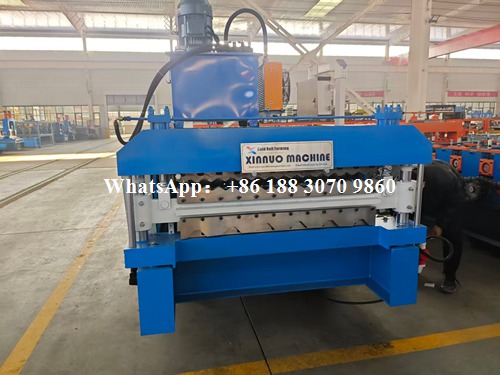

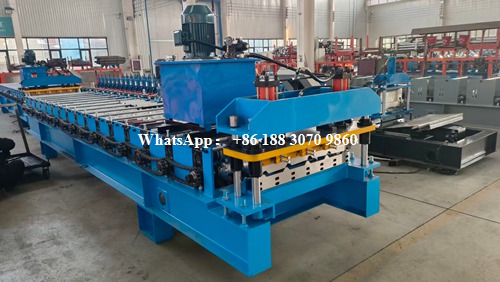

The ibr manufacturing machine is designed for producers who require consistent and reliable forming of IBR roofing sheets for industrial, commercial, and residential applications. It supports stable production of roofing profiles commonly used in metal building systems.
| No. | ibr manufacturing machine | |
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | 18Rows |
| 3 | Dimensions | 9.0*1.7*1.8m |
| 4 | Motor Power | 5.5Kw |
| 5 | Pump Station Motor | 4Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 4800kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
This ibr manufacturing machine uses a rigid forming structure and precision-machined rollers to guide the steel strip smoothly through each forming stage. The controlled forming process helps maintain uniform rib height, accurate profile dimensions, and clean surface finish during continuous operation.
For daily factory use, the ibr manufacturing machine provides stable feeding and accurate length control, ensuring consistent sheet length and reliable cutting performance. The machine is suitable for handling commonly used roofing materials and thickness ranges without frequent manual adjustments.
Built for durability, the ibr manufacturing machine is suitable for long working hours in demanding production environments. Its practical mechanical design helps reduce wear, supports predictable maintenance schedules, and contributes to long-term production stability.
Overall, the ibr manufacturing machine focuses on dependable performance, consistent product quality, and long service life, making it a reliable solution for professional roofing sheet manufacturers.
Xinnuo Machinery Co., Ltd., established in 1995, is a subsidiary of Hebei Xinnuo Roll Forming Machine Co., Ltd., previously known as Botou Huayu Roll Forming Machine Factory. We focus on the design, manufacturing, and sales of cold-formed machinery, offering a broad range of high-performance equipment.
Our star product, the sandwich panel production line, is one of our most popular machines and has been exported to countries across the globe. Renowned for its high efficiency and versatility, this machine is key in the production of insulated panels used in various industries. Our commitment to innovation is reflected in the over ten patents we hold, and our recognition as a National High-Tech Enterprise further solidifies our reputation as an industry leader.
