Develivery time:30-45 days
Model: IBR686
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860

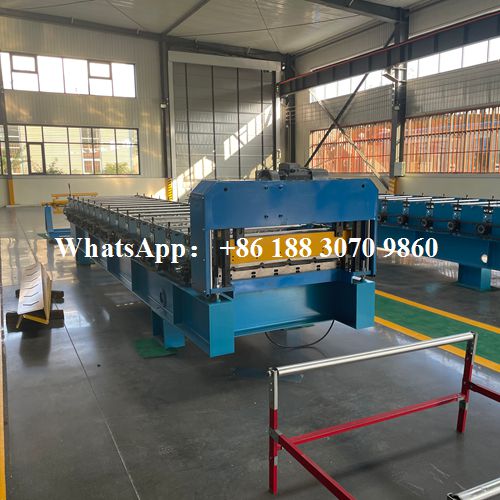

The IBR roof sheet making machine price is mainly determined by the machine configuration and production requirements. This machine is designed to offer a reliable structure with a competitive cost-performance ratio for metal roofing manufacturers.
| No. | IBR Roof Sheet Making Machine Price | |
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | 18Rows |
| 3 | Dimensions | 9.0*1.7*1.8m |
| 4 | Motor Power | 5.5Kw |
| 5 | Pump Station Motor | 4Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 4800kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
1. Cost-Effective Decoiling and Feeding System
The production line is equipped with a manual decoiler and stable feeding system, ensuring smooth coil operation while keeping the overall IBR roof sheet making machine price at an economical level.

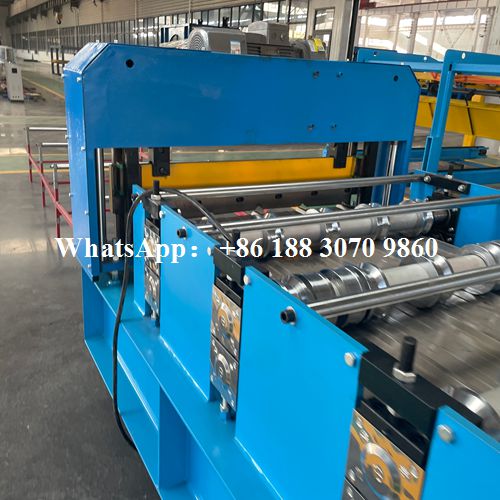

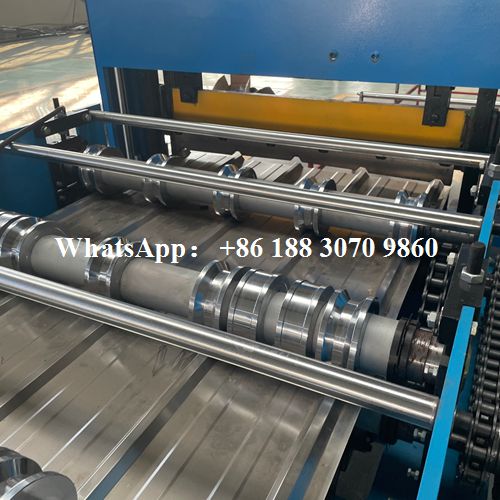

2. Stable Forming and Transmission Structure
A robust roll forming system with reliable transmission guarantees consistent profile accuracy and long-term operation. This structure is easy to maintain and suitable for continuous production, helping control the total machine cost.

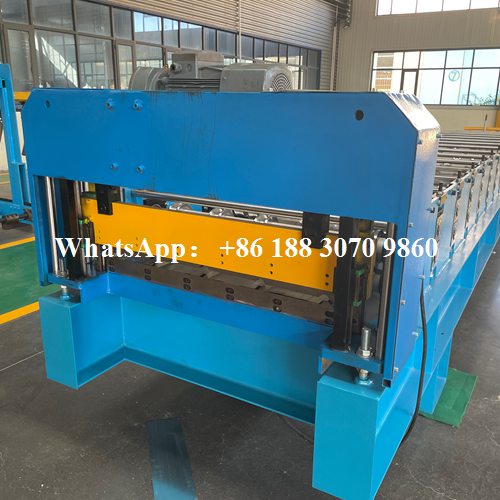

3. Electric Cutting System
The machine features an electric cutting device, providing accurate length control and clean cutting edges. Compared with basic mechanical cutting, electric cutting improves cutting precision while maintaining a reasonable machine price.
Due to different material thickness, sheet length, and production speed requirements, the final IBR roof sheet making machine price can be confirmed based on your specific project needs.
