Develivery time:30-45 days

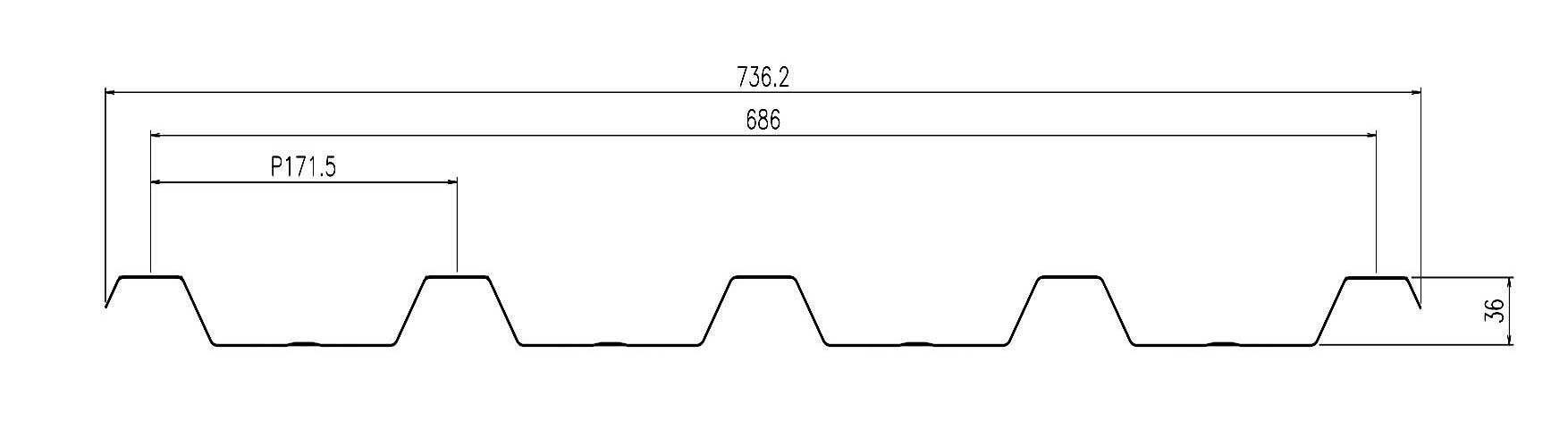

Model: IBR686
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860

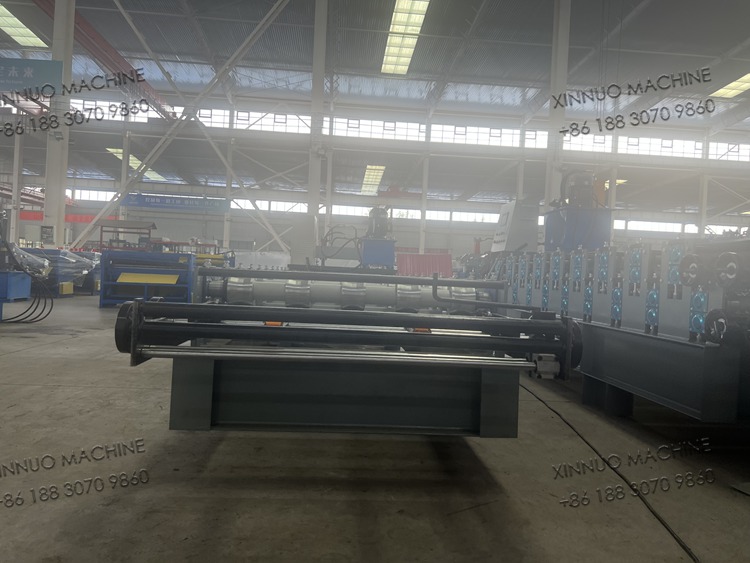

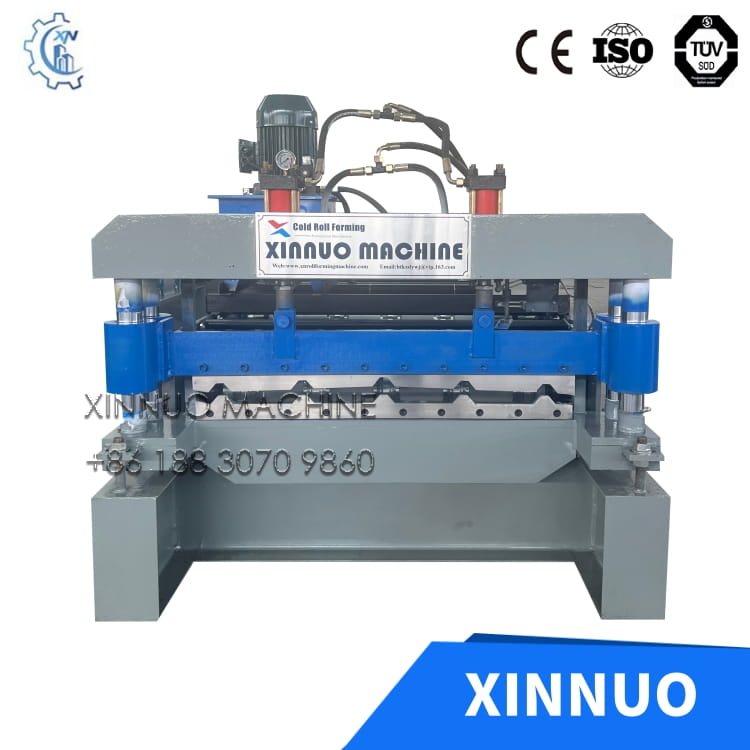

roll forming machine price south africa

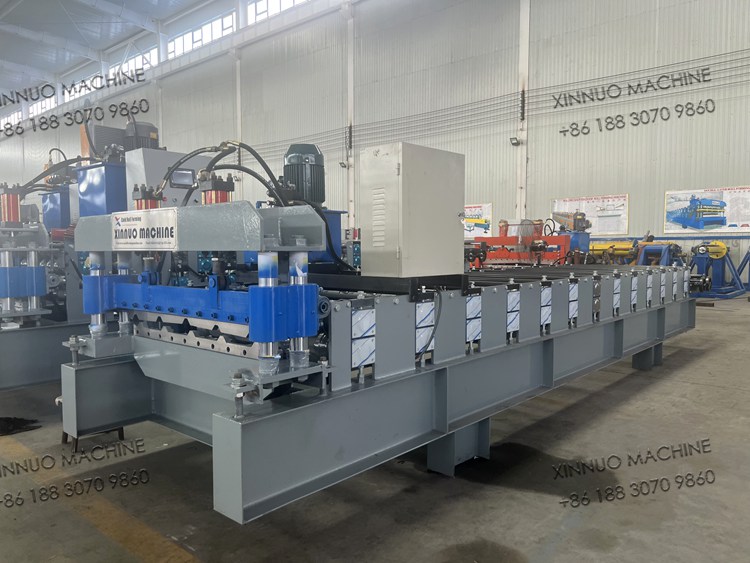

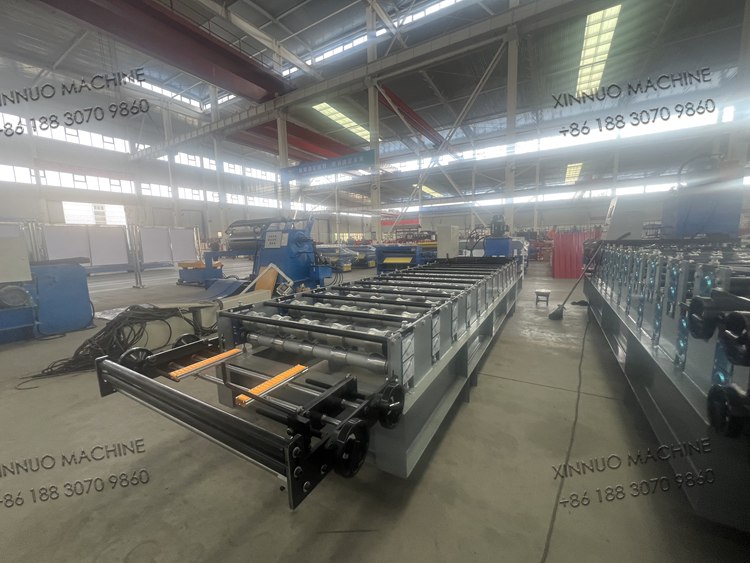

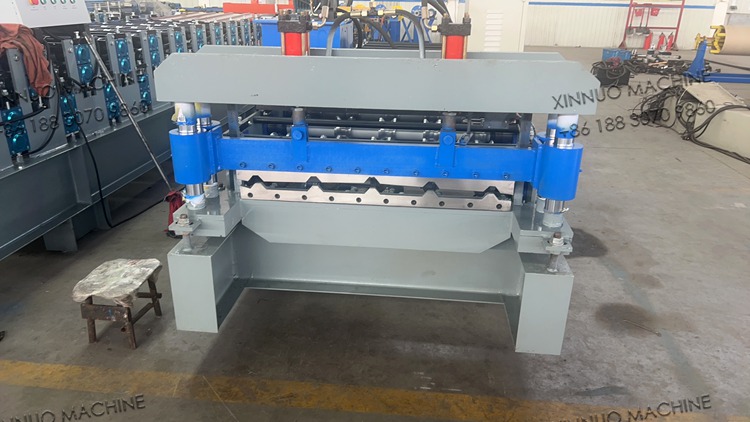

1. The most popular machine in South Africa ibr roofing sheet making machine
2. Suitable for roofs, buildings, fences, and fences. It has a very wide range of applications and is the best investment project!
| No. | roll forming machine price south africa | |
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | 18Rows |
| 3 | Dimensions | 9.0*1.7*1.8m |
| 4 | Motor Power | 5.5Kw |
| 5 | Pump Station Motor | 4Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 4800kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
Frequently Asked Questions (FAQ)-tile making machine for sale south africa
Q: Do you offer machine customization services for specific profile designs or production requirements?
A: Yes, we provide comprehensive customization services. We can tailor cold roll forming machine solutions to your unique profile designs, specific dimensions, or desired production capacities, based on your drawings or samples.
Q: Beyond factory training, do you provide on-site installation, commissioning, and training services?
A: Yes, we offer flexible on-site services. Our experienced engineering team can travel to your location to provide installation guidance, machine commissioning, and thorough training for your operators, ensuring a smooth and efficient startup.
Q: What are the power and utility requirements for your machines?
A: Our machines typically require a three-phase power supply (e.g., 380V/50Hz or 440V/60Hz, adjustable to customer needs) and compressed air. Specific requirements will vary by machine model and configuration, detailed in the technical specifications.
Q: How do you ensure the supply of spare parts for long-term machine operation?
A: We ensure a robust spare parts supply for the continuous, stable operation of our machines. All wear parts and critical components are kept in stock for quick dispatch. We also provide spare parts lists and purchasing guidance for your maintenance planning.
Q: What types of materials and thickness ranges can your machines typically process?
A: Our machines can process a wide range of metal materials, including galvanized steel, pre-painted coils, cold-rolled steel, aluminum, and stainless steel. Processing thickness typically ranges from 0.3 mm to 3.0 mm, though some heavy-duty models can handle thicker materials.
Q: Do you offer pre-purchase consultation to help us select the most suitable machine?
A: Absolutely. Our expert sales and technical teams are available to provide free pre-sales consultation. We'll thoroughly assess your production needs, material specifications, and budget to recommend the cold roll forming machine solution best suited for your business objectives.
Xinnuo Machinery Co., Ltd., established in 1995, is a subsidiary of Hebei Xinnuo Roll Forming Machine Co., Ltd., previously known as Botou Huayu Roll Forming Machine Factory. We focus on the design, manufacturing, and sales of cold-formed machinery, offering a broad range of high-performance equipment.
Our star product, the sandwich panel production line, is one of our most popular machines and has been exported to countries across the globe. Renowned for its high efficiency and versatility, this machine is key in the production of insulated panels used in various industries. Our commitment to innovation is reflected in the over ten patents we hold, and our recognition as a National High-Tech Enterprise further solidifies our reputation as an industry leader.
