Develivery time:30-45 days
Model: IBR686
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860

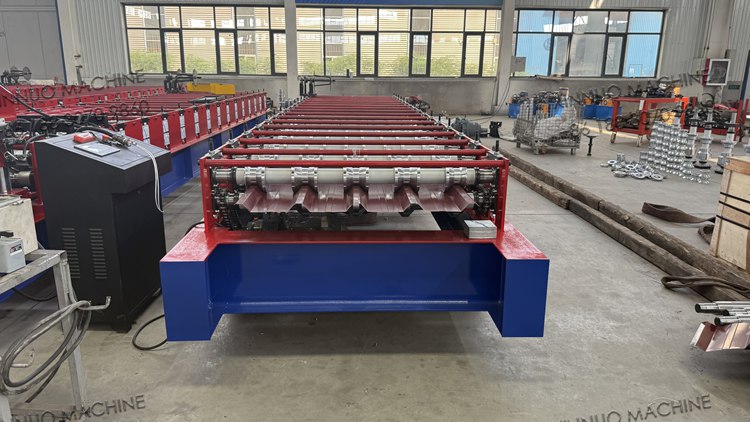

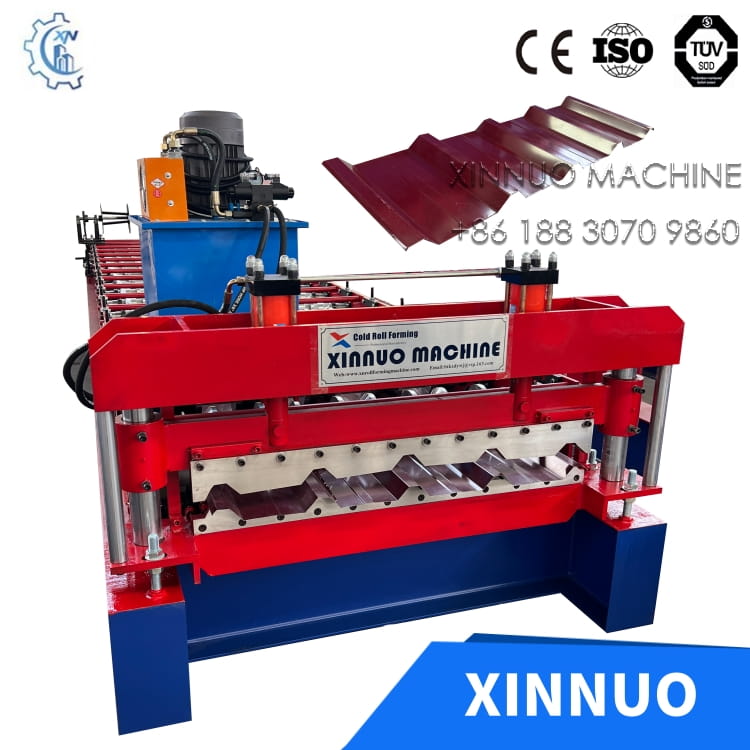

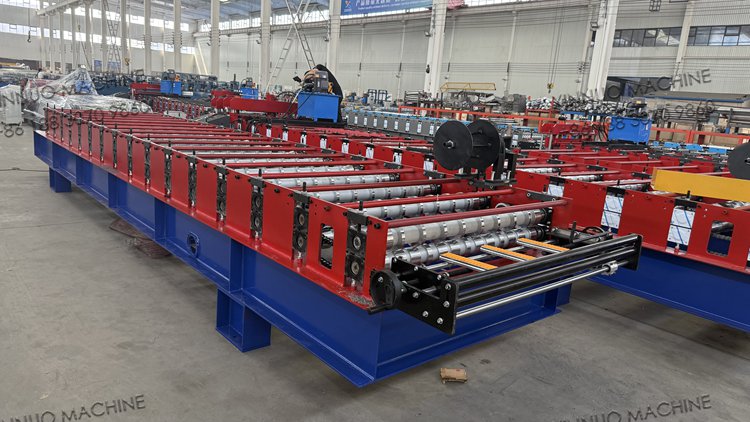

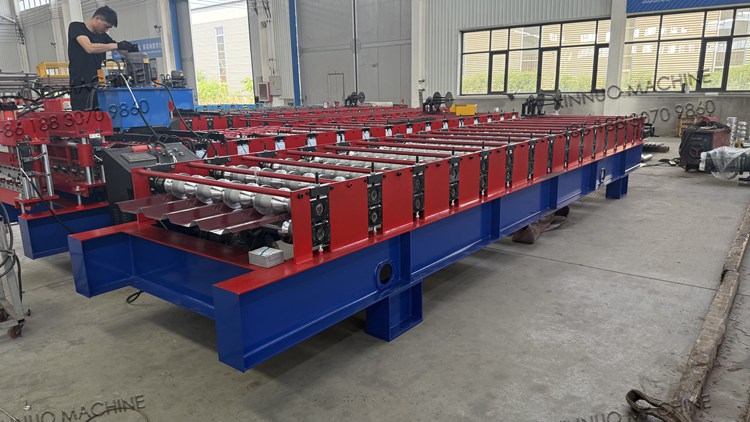

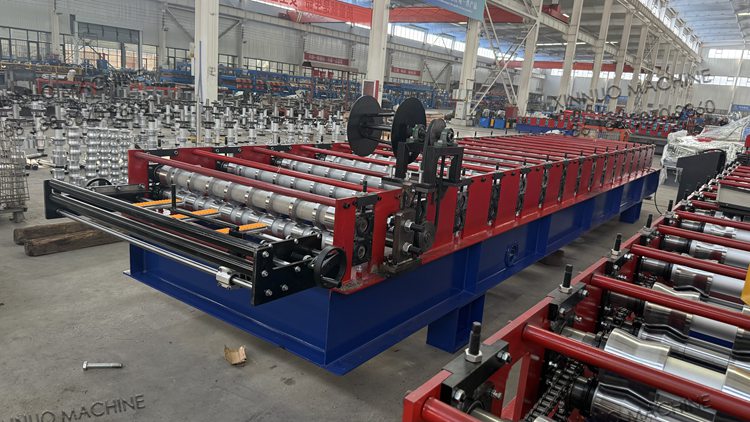

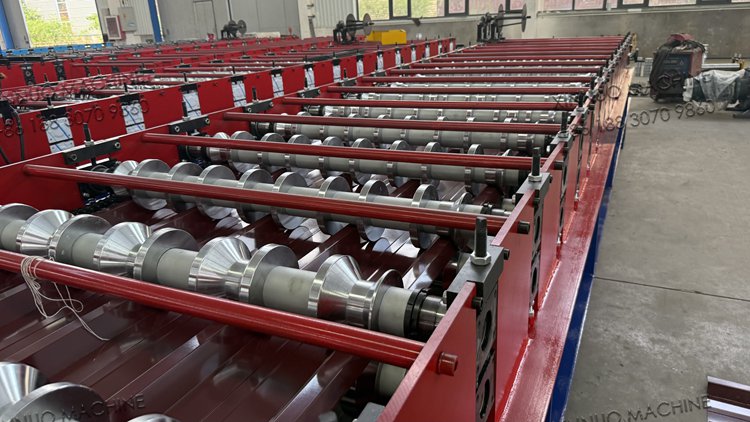

roof sheet making machine in south africa

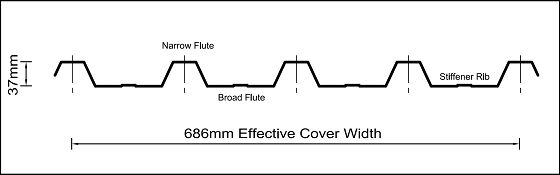

1. Our professional team customized the 686IBR molding machine for South African customers, and it is very popular in the market!
2. The roofing tiles sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.
| No. | roof sheet making machine in south africa | |
| 1 | Suitable to process | Color alu-zinc steel coil |

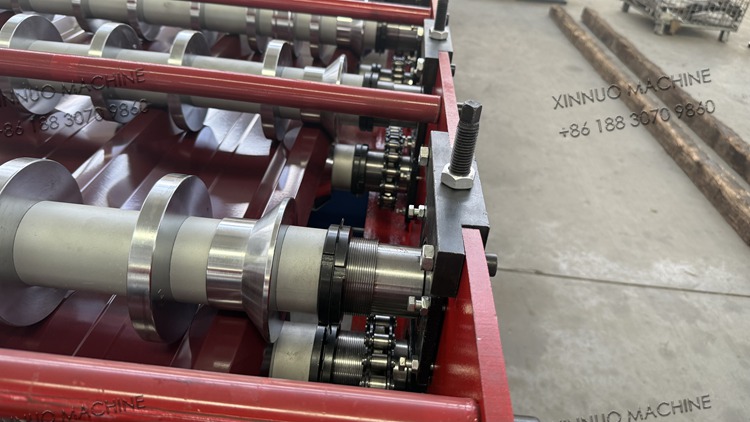

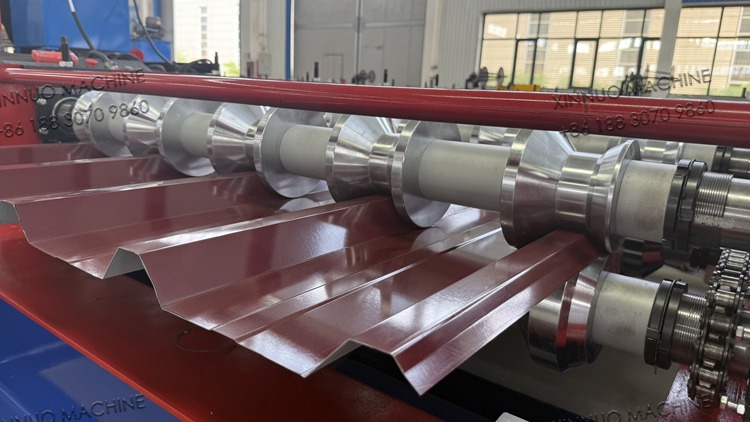

| 2 | Roller | 18Rows |
| 3 | Dimensions | 9.0*1.7*1.8m |
| 4 | Motor Power | 5.5Kw |
| 5 | Pump Station Motor | 4Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 4800kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
After-Sales Support
Warranty & Support: Your roof sheet making machine includes a 24-month warranty and lifetime technical assistance.
Delivery: Machines are dispatched within 25-35 working days following deposit confirmation.
Training: We offer comprehensive training at our factory for installation, operation, and maintenance.
