Develivery time:30-45 days
Model: IBR686
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860

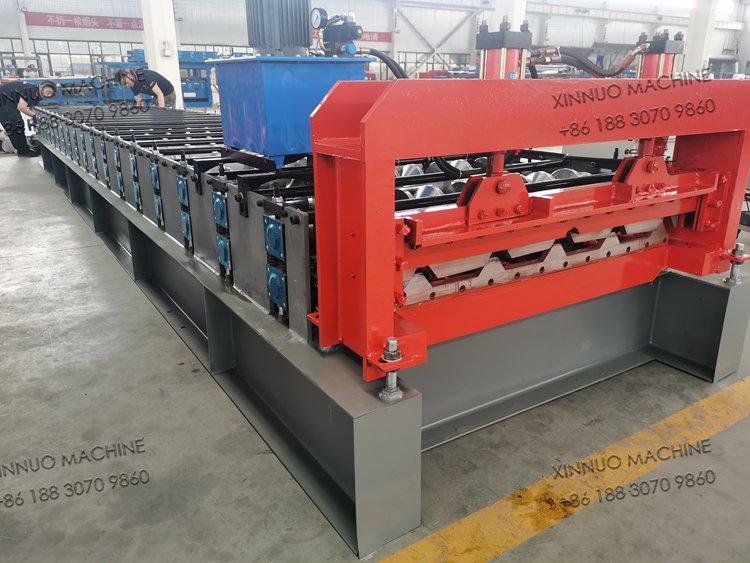

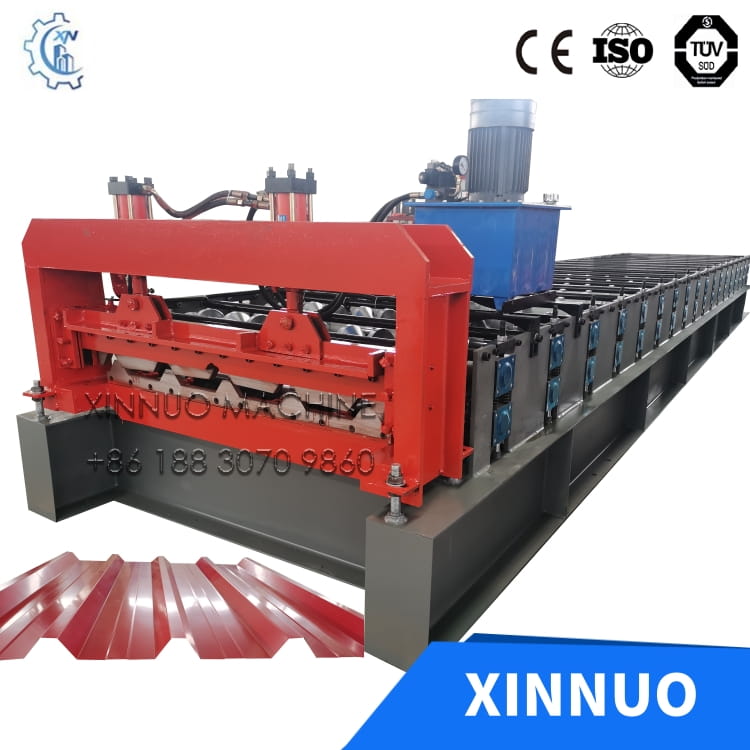

roll forming machine manufacturers south africa
1. If you need to buy a 686IBR molding machine, we can design a machine for you that suits the Zimbabwean market!2. Our factory covers an area of more than 100,000 square meters. We produce multiple machines at the same time, so we can deliver the machines to you faster!
| No. | roll forming machine manufacturers south africa | |
| 1 | Suitable to process | Color alu-zinc steel coil |

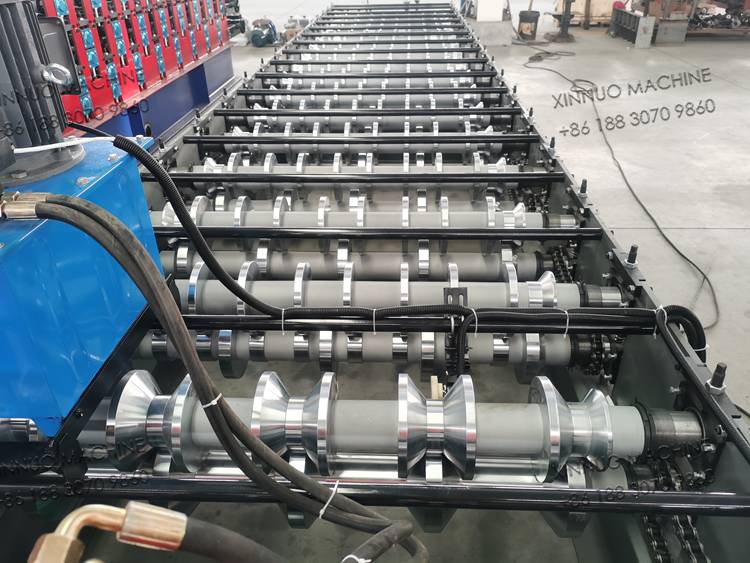

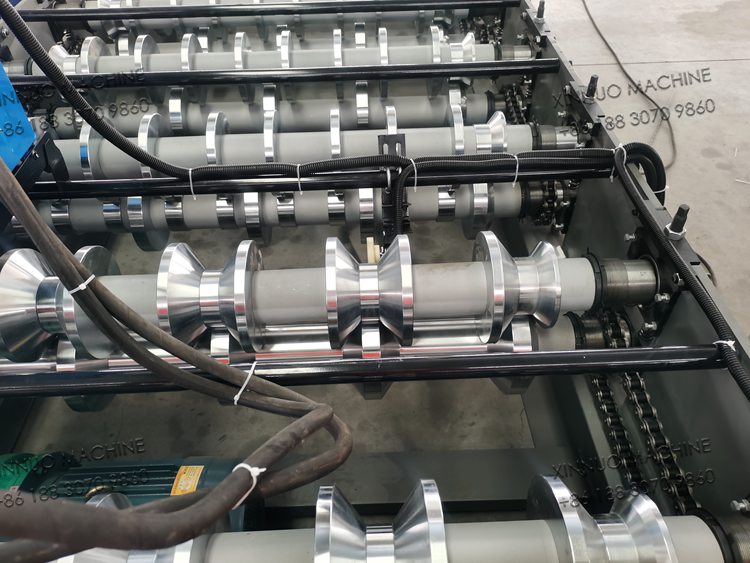

| 2 | Roller | 18Rows |
| 3 | Dimensions | 9.0*1.7*1.8m |
| 4 | Motor Power | 5.5Kw |
| 5 | Pump Station Motor | 4Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 4800kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
Xinnuo Machinery Co., Ltd., established in 1995, is a subsidiary of Hebei Xinnuo Roll Forming Machine Co., Ltd., previously known as Botou Huayu Roll Forming Machine Factory. We focus on the design, manufacturing, and sales of cold-formed machinery, offering a broad range of high-performance equipment.
Our star product, the sandwich panel production line, is one of our most popular machines and has been exported to countries across the globe. Renowned for its high efficiency and versatility, this machine is key in the production of insulated panels used in various industries. Our commitment to innovation is reflected in the over ten patents we hold, and our recognition as a National High-Tech Enterprise further solidifies our reputation as an industry leader.
