Develivery time:30-45 days

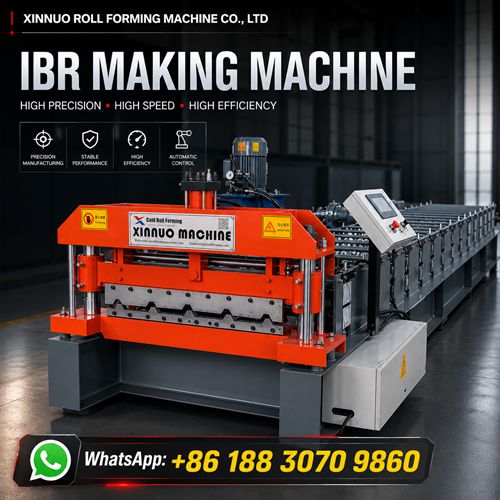

Model: IBR Sheeting Machine
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860
The IBR sheeting machine is a professional roll forming system designed for manufacturing high-quality IBR roofing sheets with excellent dimensional accuracy and stable performance. This model is widely used in the South African market due to its reliability and efficient production capability.
Equipped with a PLC automatic control system and durable forming components, the machine ensures smooth operation and long service life. It is suitable for continuous roofing sheet production in industrial and commercial applications.

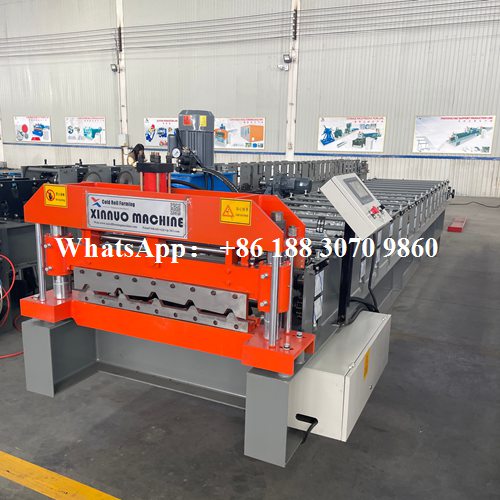

The main body of the IBR sheeting machine adopts a heavy-duty steel frame structure to ensure stability during high-speed production. The compact layout improves operational efficiency and reduces vibration.
Precision assembly and reinforced construction provide consistent forming quality and support long-term industrial operation.

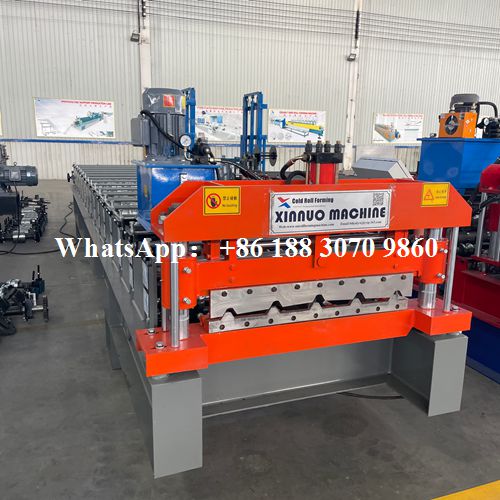

The hydraulic cutting system with guide columns provides accurate and stable cutting performance. It ensures smooth cutting edges while protecting the formed profile from deformation.
The guided cutting structure improves cutting precision and enhances overall machine durability during long production cycles.
Profile Type: IBR Roofing Sheet
Material Type: Galvanized Steel / Color Steel
Material Thickness: 0.3 – 0.8 mm
Forming Speed: 10 – 20 m/min
Roller Material: 45# Steel with Heat Treatment
Control System: PLC Automatic Control
Cutting Type: Hydraulic Cutting
Power Supply: 380V / 50Hz / 3 Phase
The IBR sheeting machine can be customized according to different profile requirements and market specifications.

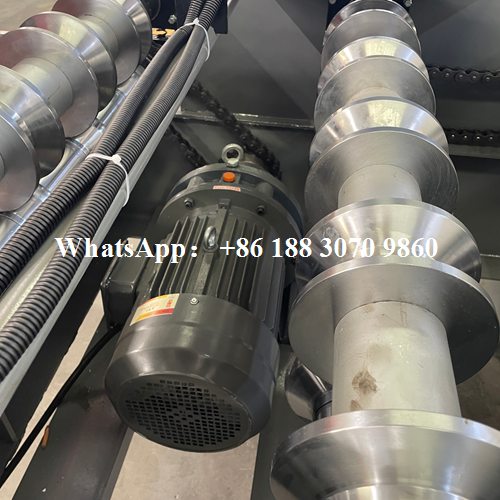

The electric motor system provides stable driving power for the roll forming process. High-quality motors ensure smooth operation and efficient energy utilization.
The reliable transmission system improves machine performance and supports continuous production with reduced maintenance requirements.

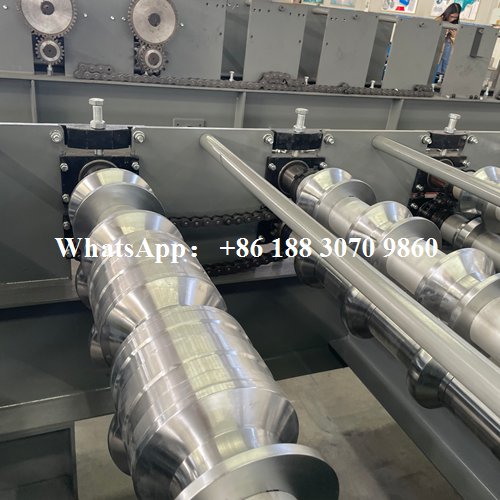

The rollers are manufactured from high-quality 45# steel and undergo heat treatment to improve hardness and wear resistance. This significantly extends the service life of the machine.
Precision-machined rollers ensure accurate sheet forming and stable production quality throughout long-term operation.
With over 30 years of experience in roll forming machine manufacturing, we provide reliable and advanced roofing sheet production solutions for global customers.
Our equipment has been exported to more than 110 countries, with extensive experience in the African roofing market.
We offer full customization services, technical support, installation guidance, and after-sales service to ensure long-term stable operation.
Q1: Why is this machine popular in South Africa?
A: It supports commonly used IBR roofing profiles and provides stable, efficient production performance.
Q2: What material are the rollers made of?
A: The rollers are made of 45# steel with heat treatment for improved durability.
Q3: Is the machine fully automatic?
A: Yes, it uses a PLC automatic control system for easy and efficient operation.
Q4: Can the machine be customized?
A: Yes, we provide customization based on profile design and production requirements.
Xinnuo Machinery Co., Ltd., established in 1995, is a subsidiary of Hebei Xinnuo Roll Forming Machine Co., Ltd., previously known as Botou Huayu Roll Forming Machine Factory. We focus on the design, manufacturing, and sales of cold-formed machinery, offering a broad range of high-performance equipment.
Our star product, the sandwich panel production line, is one of our most popular machines and has been exported to countries across the globe. Renowned for its high efficiency and versatility, this machine is key in the production of insulated panels used in various industries. Our commitment to innovation is reflected in the over ten patents we hold, and our recognition as a National High-Tech Enterprise further solidifies our reputation as an industry leader.
