Develivery time:30-45 days
Model: IBR686
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860

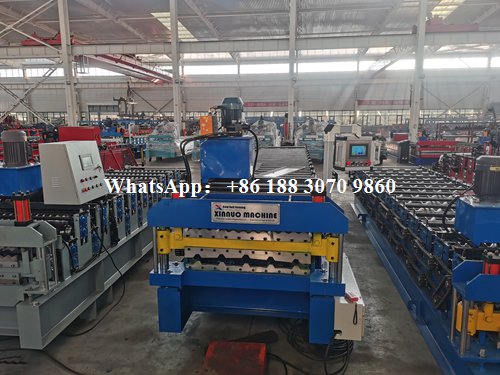

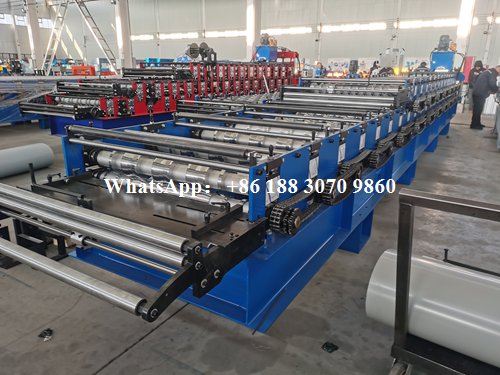

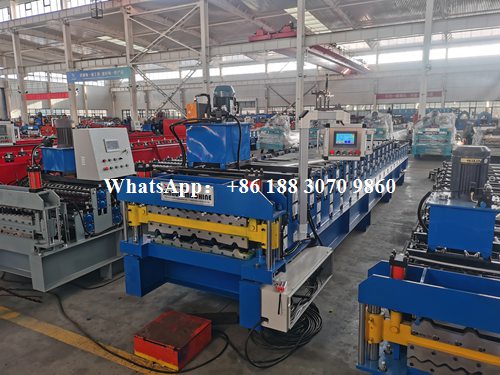

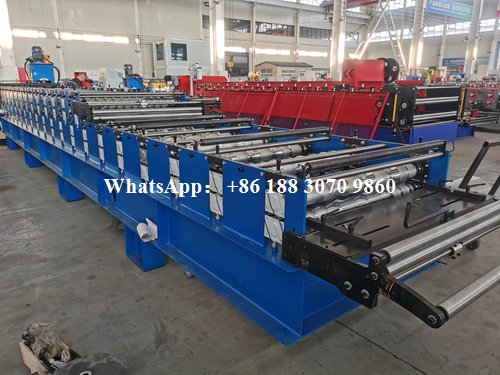

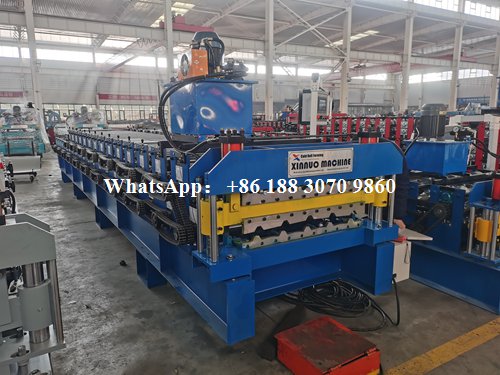

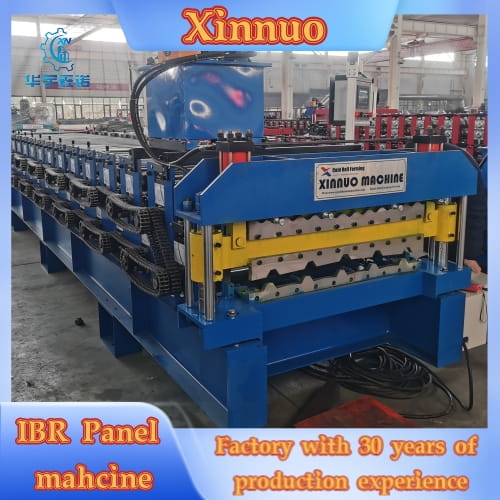

The ibr and corrugated iron manufacturing process is designed for producers who need reliable and repeatable forming of both IBR roofing sheets and corrugated iron profiles. This manufacturing approach supports the production of widely used roofing materials for industrial buildings, warehouses, agricultural structures, and residential projects.
| No. | ibr and corrugated iron manufacturing | |
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | Up Layer :13Rows（762） |
| Down Layer:18Rows(686） | ||
| 3 | Dimensions | 9.0*1.7*1.8m |
| 4 | Motor Power | 5.5Kw |
| 5 | Pump Station Motor | 4Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 6800kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
In ibr and corrugated iron manufacturing, stable forming accuracy is essential to ensure uniform profile dimensions and consistent surface quality. The forming system guides the steel coil smoothly through each forming stage, helping to minimize deformation, edge damage, and profile variation during continuous production.
The ibr and corrugated iron manufacturing setup is suitable for daily factory operation, allowing manufacturers to switch between different roofing profiles according to project demand. Controlled forming and synchronized cutting help maintain consistent sheet length and clean edges, supporting efficient downstream installation and handling.
Built for long-term use, ibr and corrugated iron manufacturing equipment is designed to operate reliably under demanding production conditions. Its practical structure supports predictable maintenance planning and stable output, making it a dependable solution for manufacturers focused on long-term production efficiency rather than short-term capacity.
Overall, ibr and corrugated iron manufacturing emphasizes consistency, durability, and operational stability, providing manufacturers with a balanced solution for producing multiple roofing profiles within a single production system.
