Develivery time:30-45 days
Model: IBR686
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860

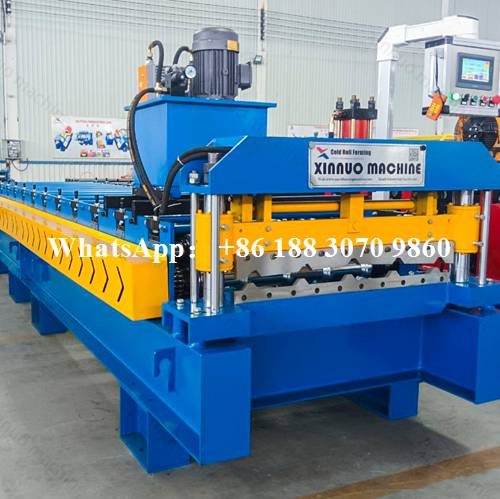

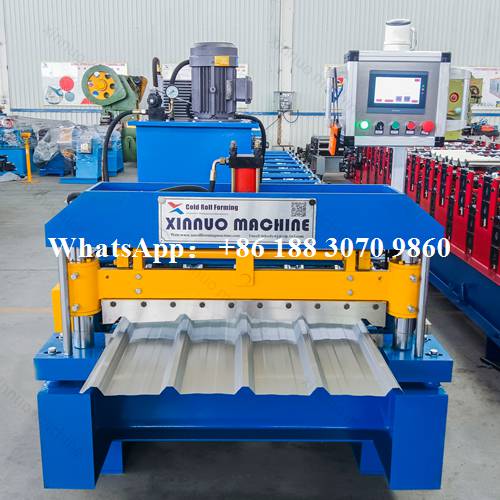

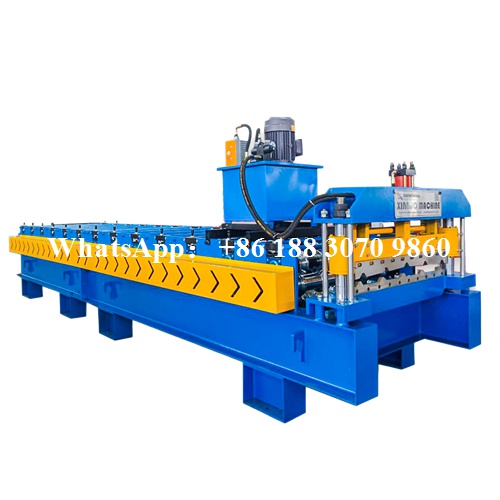

The IBR manufacturing machine is a professional roll forming machine designed for producing IBR roofing sheets. It is widely used in industrial buildings, warehouses, commercial projects, and residential roofing. Our machines handle a variety of metal materials, including PPGI, galvanized steel, and aluminum coils.
With over 30 years of experience in cold roll forming machinery, we provide reliable, high-speed, and customizable IBR sheet making machines for clients worldwide.
The machine produces 15–25 meters of IBR sheets per minute, suitable for large-scale production.
Heavy-duty steel frame and precision machining ensure long-lasting durability and smooth operation.

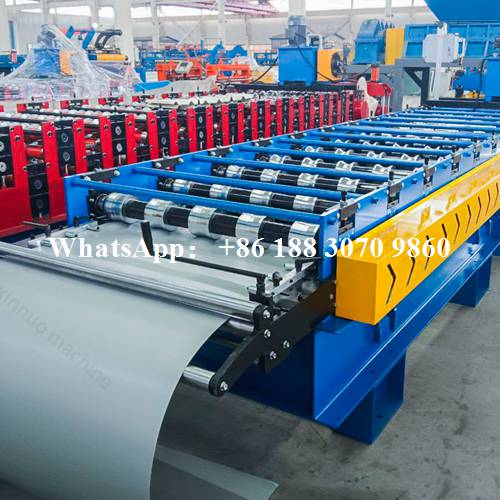

Multiple roller stations guarantee precise sheet profiles with smooth surfaces and uniform dimensions.

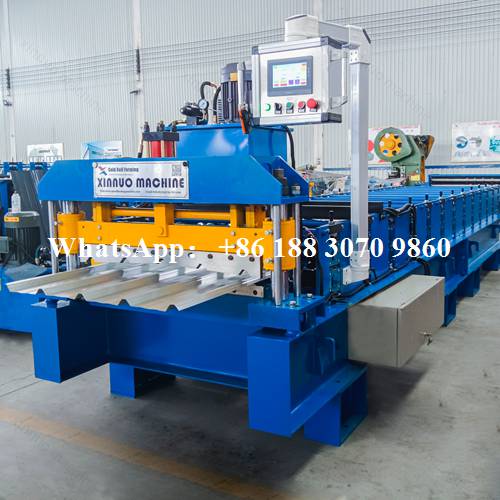

Equipped with PLC control and touch screen, making production fully automated and easy to monitor.
We provide tailored solutions according to sheet thickness, material type, and IBR profile design.
| No. | IBR Manufacturing Machine | |
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | 18Rows |
| 3 | Dimensions | 9.0*1.7*1.8m |
| 4 | Motor Power | 5.5Kw |
| 5 | Pump Station Motor | 4Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 4800kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |

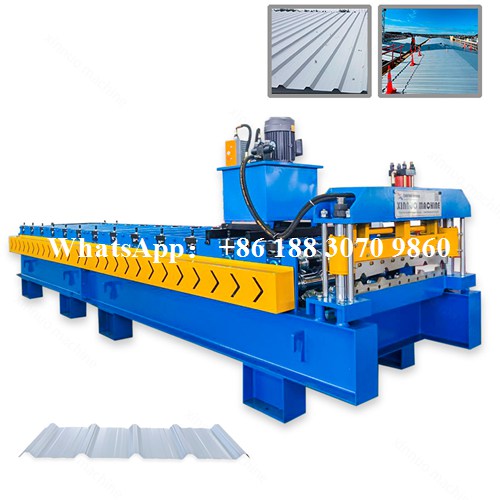

IBR sheets produced by this machine are ideal for:
1. Industrial factories
2. Warehouses
3. Steel structure buildings
4. Residential roofing
5. Commercial & agricultural buildings
Advantages: lightweight, strong, corrosion-resistant, and easy to install.
1. Over 30 years of experience in roll forming machines
2. High precision and stable performance
3. Custom solutions for different sheet profiles and production needs
4. Full technical support and professional after-sales service
5. Competitive factory direct price
We have exported IBR sheet making machines to Africa, South America, Southeast Asia, and the Middle East.
Q1: What materials can this machine process?
A: PPGI, GI, aluminum, and other coated metal coils.
Q2: Can the machine be customized?
A: Yes, we can design the machine according to your IBR profile drawing and production capacity.
Q3: What is the production speed?
A: Standard speed is 15–25 meters per minute, depending on material thickness.
Q4: Do you provide installation and training?
A: Yes, we offer installation guidance, online support, and engineer services if needed.
