Develivery time:30-45 days
Model: IBR686
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860

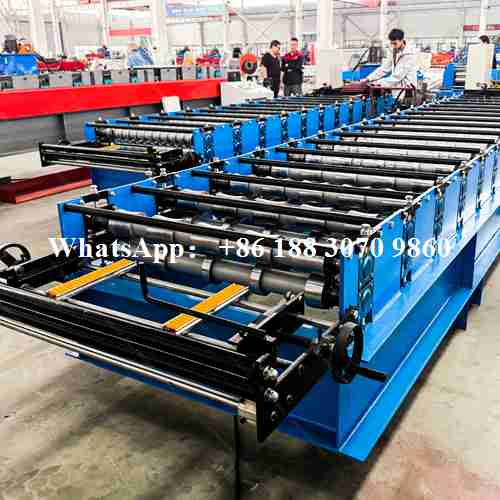

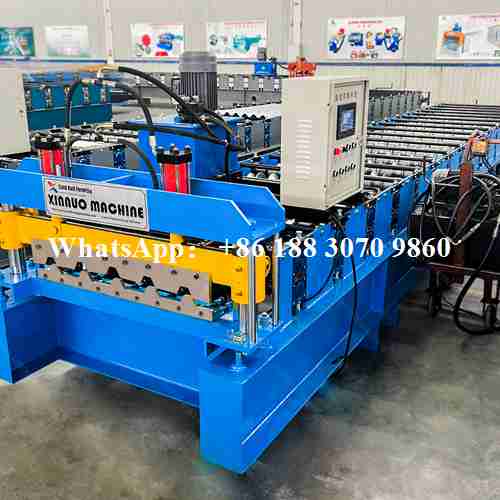

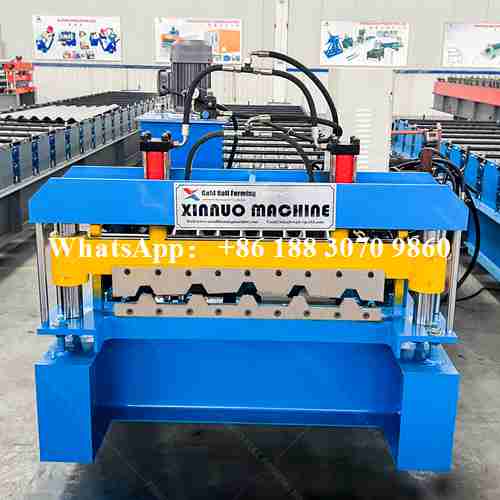

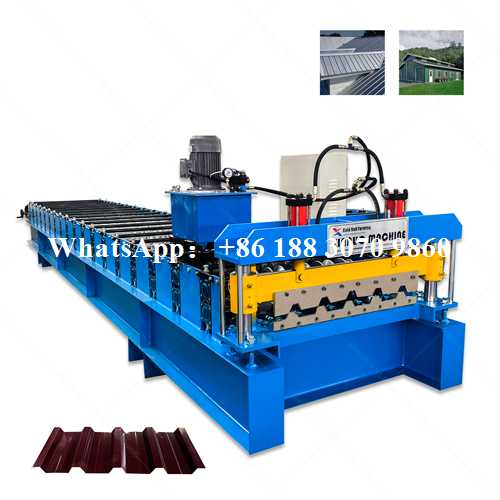

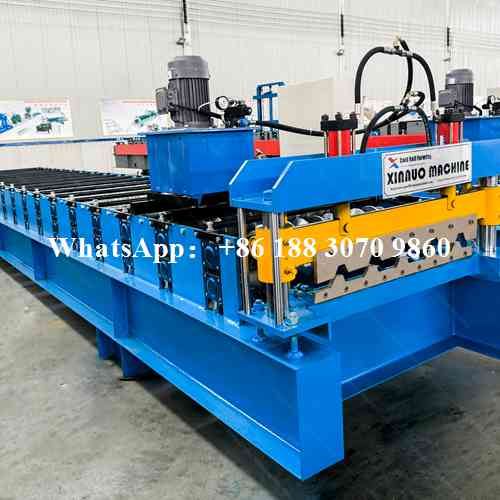

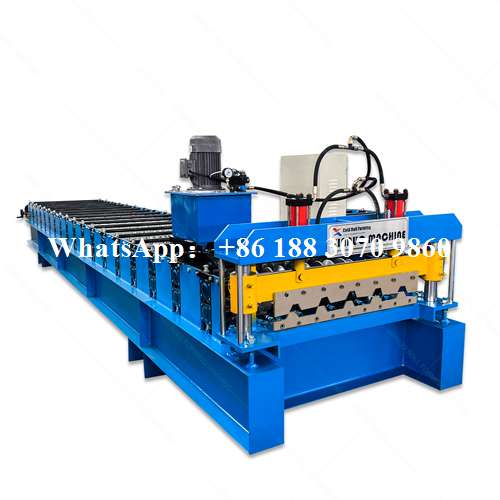

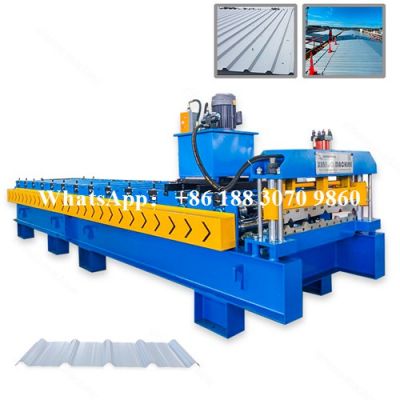

The IBR roof sheet making machine is a professional roll forming machine designed for producing IBR roofing sheets used in industrial, commercial, and residential buildings. It can process a variety of metal materials including PPGI, GI, and aluminum coils.
With over 30 years of experience in cold roll forming machinery, we provide reliable, high-speed, and customizable IBR roof sheet machines for global customers.
The machine produces 15–25 meters of roofing sheets per minute, making it ideal for large-scale production.
Heavy-duty steel frame ensures long-term stability and smooth operation even under continuous production.
Multiple roller stations ensure precise IBR sheet profiles with smooth surfaces and consistent dimensions.
Equipped with PLC control and touch screen, allowing automatic operation and easy monitoring.
We can customize the machine according to your roof sheet profile, material thickness, and production requirements.
| No. | IBR Roof Sheet Making Machine | |
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | 21Rows |
| 3 | Dimensions | 9.0*1.7*1.8m |
| 4 | Motor Power | 5.5Kw |
| 5 | Pump Station Motor | 4Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 4800kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
The IBR roof sheet making machine produces sheets widely used in:
1. Industrial factories
2. Warehouses
3. Steel structure buildings
4. Residential roofing
5. Commercial & agricultural buildings
Advantages: lightweight, corrosion-resistant, strong, and easy to install.
1. Over 30 years of roll forming machine manufacturing experience
2. High precision rollers and stable forming system
3. Customizable solutions for different profiles and production requirements
4. Professional after-sales support, including installation guidance and training
5. Competitive factory direct price
We have exported our machines to Africa, South America, Southeast Asia, and the Middle East.
Q1: What materials can the IBR roof sheet machine process?
A: PPGI, GI, aluminum, and other coated metal coils.
Q2: Can the machine be customized?
A: Yes, we can design the machine according to your roof sheet profile, sheet thickness, and production capacity.
Q3: What is the production speed?
A: Standard speed is 15–25 meters per minute, depending on material thickness.
Q4: Do you provide installation and training?
A: Yes. We offer installation guidance, online support, and engineer services if needed.
