Develivery time:30-45 days

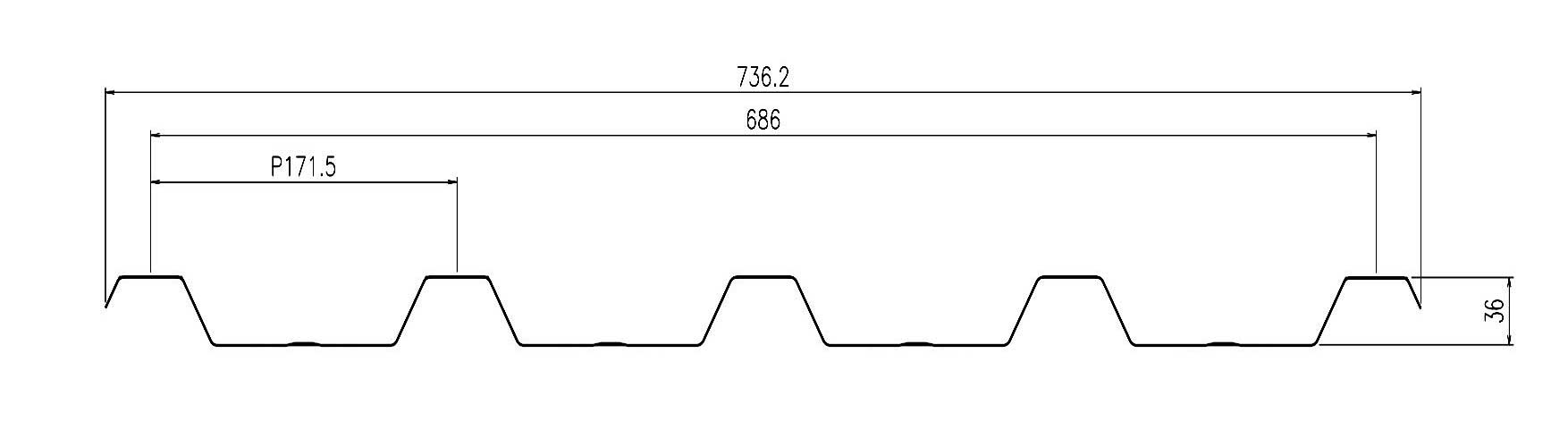

Model: IBR686
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860

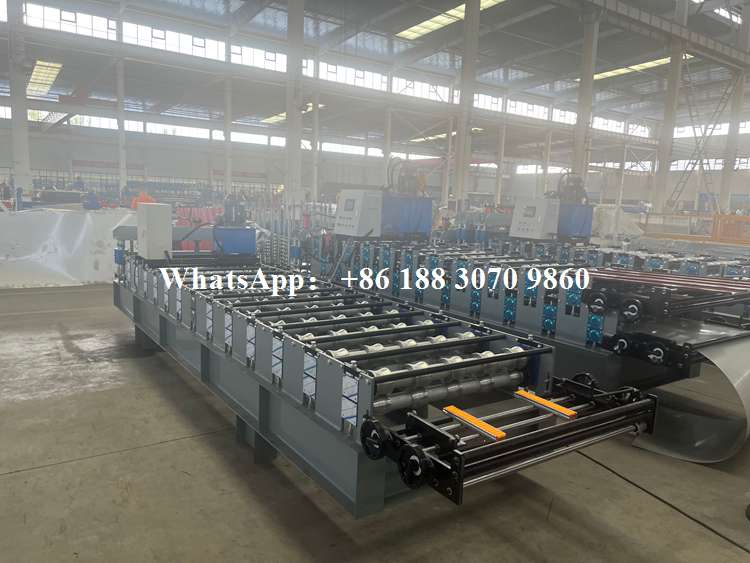

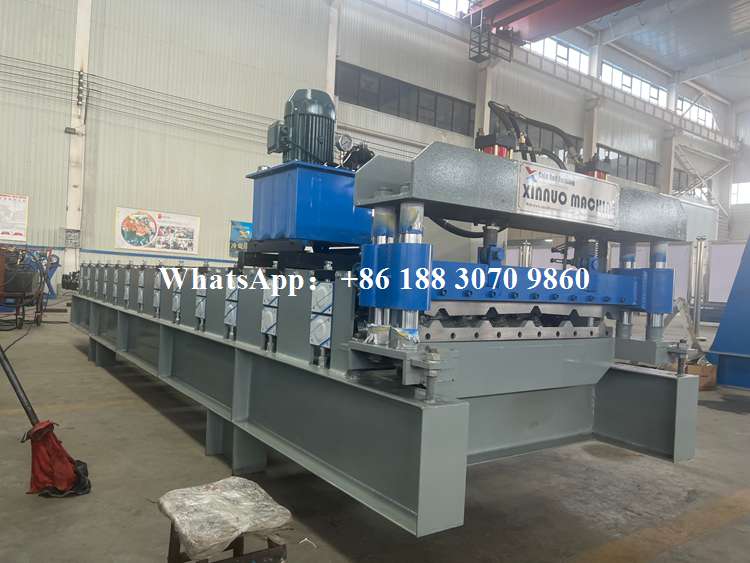

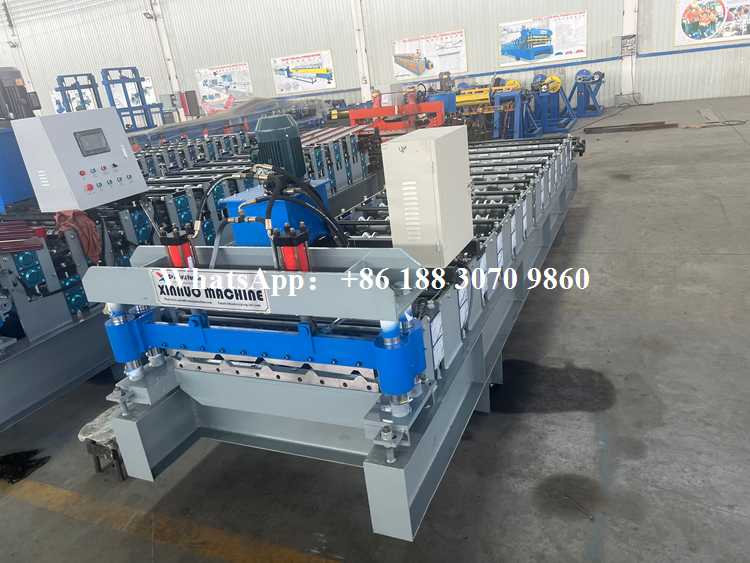

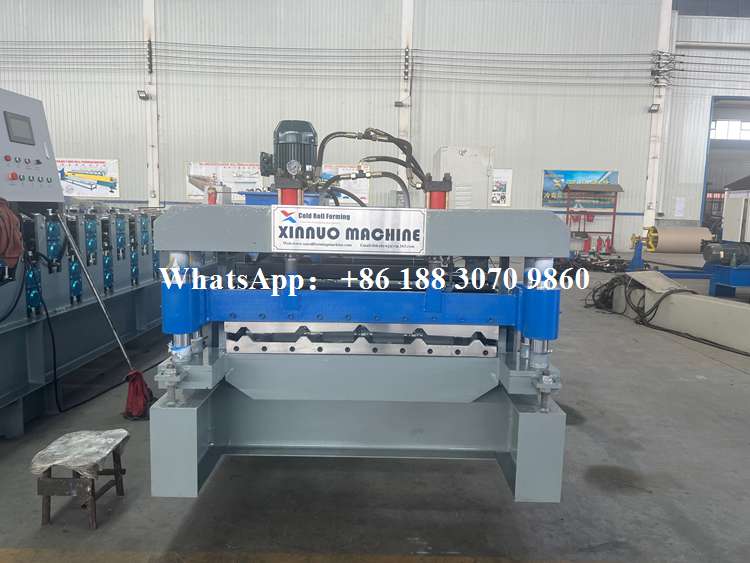

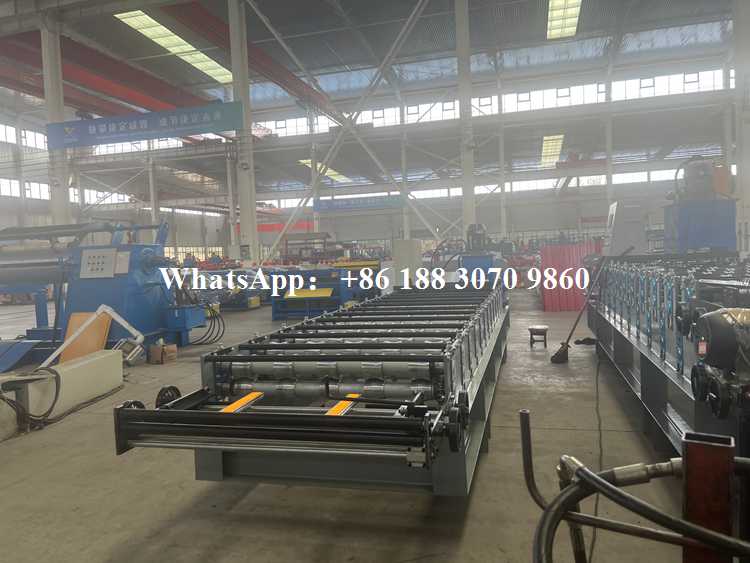

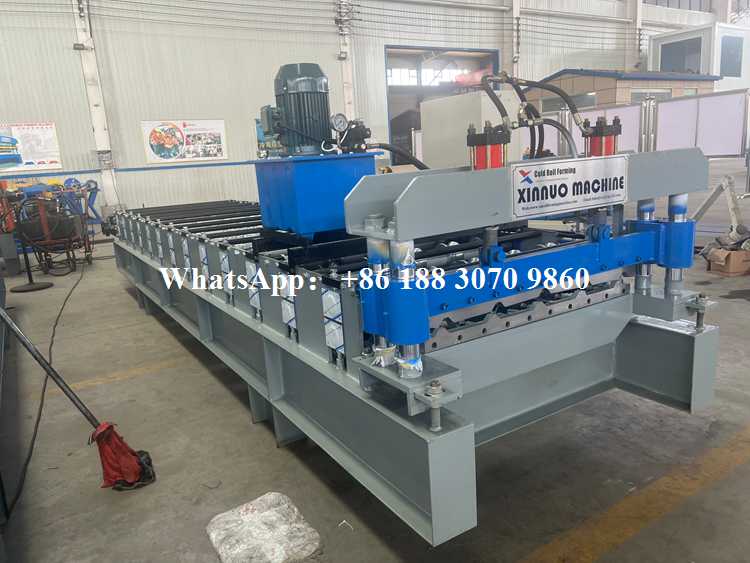

ibr roof sheeting roll forming machine
| No. | ibr roof sheeting roll forming machine | |
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | Up Layer :13Rows（762） |
| Down Layer:18Rows(686） | ||
| 3 | Dimensions | 9.0*1.7*1.8m |
| 4 | Motor Power | 5.5Kw |
| 5 | Pump Station Motor | 4Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 6800kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
After-Sales Service – IBR Roof Sheeting Roll Forming Machine
Warranty Policy
The IBR roof sheeting machine comes with a two-year warranty. Within this period, we provide free replacement of defective components caused by manufacturing issues. Beyond the warranty, we ensure continuous lifetime technical assistance.
Delivery Schedule
Machines are normally delivered within 25–35 business days after receipt of the deposit. Lead times for customized solutions may vary depending on specific requirements.
Service Commitment
24 months of free maintenance and support, including part replacement when necessary.
Lifetime paid service available for spare parts supply, machine upgrades, and technical consultation.
Installation & Training Support
Customers visiting our facility can receive hands-on instruction on installation, adjustment, operation, and machine maintenance.
If requested, our skilled engineers can travel abroad to assist with on-site installation and training. The customer is responsible for travel, visa, and related expenses.
Remote support through online communication platforms is available anytime to resolve problems quickly and efficiently.
Xinnuo Machinery Co., Ltd., established in 1995, is a subsidiary of Hebei Xinnuo Roll Forming Machine Co., Ltd., previously known as Botou Huayu Roll Forming Machine Factory. We focus on the design, manufacturing, and sales of cold-formed machinery, offering a broad range of high-performance equipment.
Our star product, the sandwich panel production line, is one of our most popular machines and has been exported to countries across the globe. Renowned for its high efficiency and versatility, this machine is key in the production of insulated panels used in various industries. Our commitment to innovation is reflected in the over ten patents we hold, and our recognition as a National High-Tech Enterprise further solidifies our reputation as an industry leader.
