Develivery time:30-45 days
Model: IBR686
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860
| No. | IBR Roof Sheet Machine | |
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | 21Rows |
| 3 | Dimensions | 9.0*1.7*1.8m |
| 4 | Motor Power | 5.5Kw |
| 5 | Pump Station Motor | 4Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 15-25m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ85mm |
| 10 | Weight | About 4800kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 18mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |

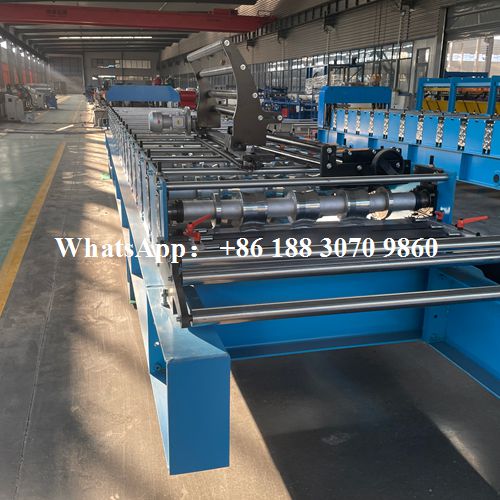

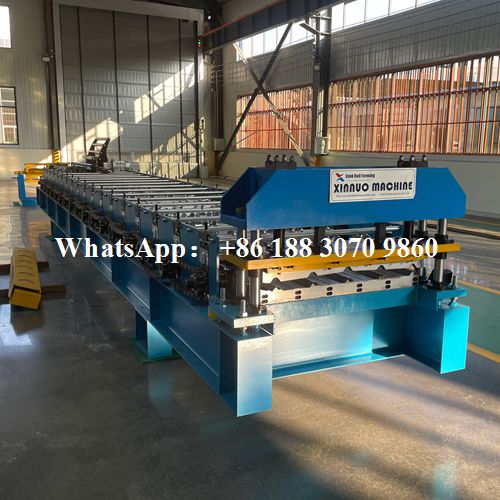

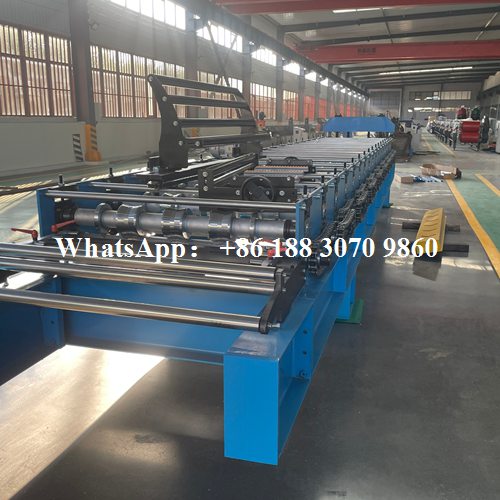

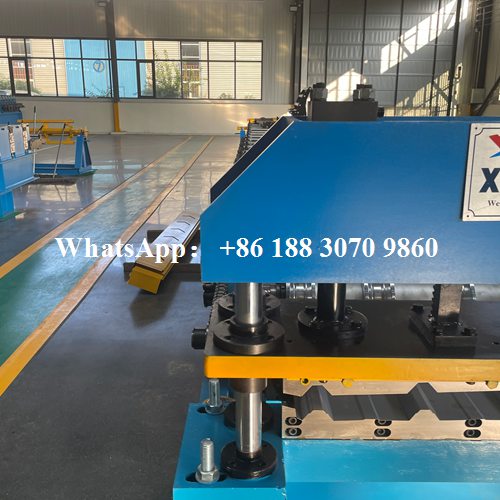

This IBR roof sheet machine is designed for efficient and stable production of IBR metal roofing sheets used in industrial and commercial buildings. The production line is equipped with a manual decoiler, providing a simple and cost-effective solution for steel coil feeding.

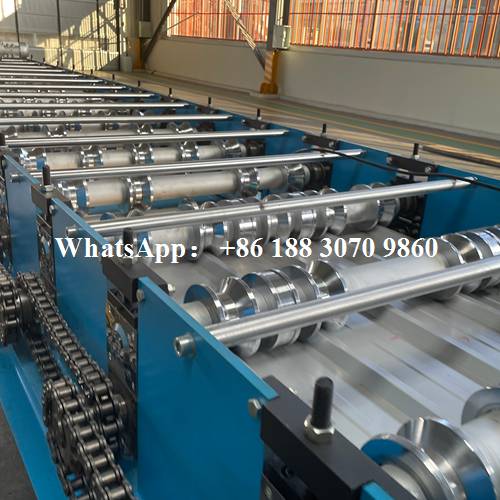

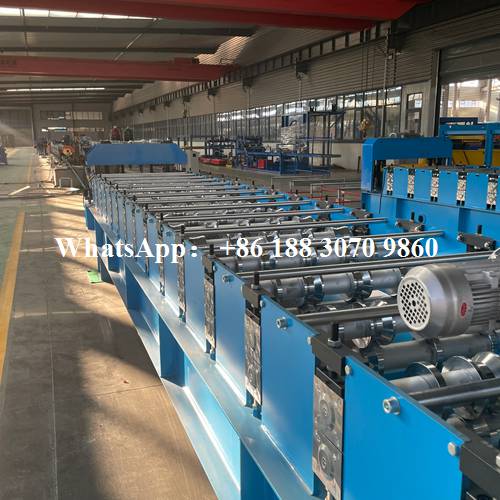

The machine adopts a 1-inch chain transmission system, ensuring reliable power transfer and smooth forming performance during continuous operation. This drive structure is easy to maintain and suitable for long-term production environments.

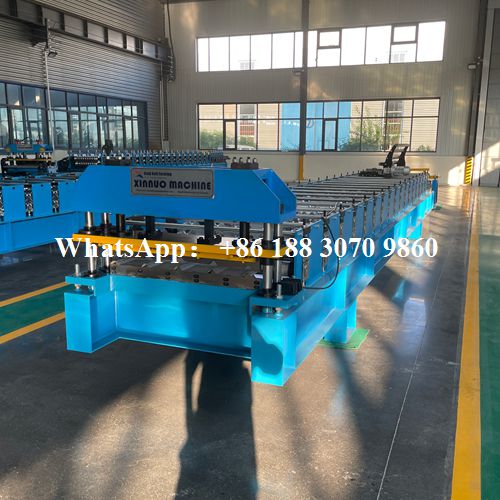

The cutting system features a four-post hydraulic cutting structure, which guarantees stable cutting action, high accuracy, and clean cutting edges. This design improves cutting consistency and extends the service life of the cutting tools.
With a robust frame and precision-forming rollers, the IBR roof sheet machine delivers consistent profile dimensions and high-quality roofing sheets. It is suitable for processing galvanized steel and color-coated steel coils, meeting the requirements of roofing projects in various markets.
