Develivery time:30-45 days
Model: ibr roof sheet forming machine
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860
The IBR roof sheet forming machine is a high-performance roll forming system designed for producing IBR (Inverted Box Rib) roofing sheets with excellent structural strength and surface quality. It is widely used in industrial buildings, warehouses, and commercial roofing applications where durability and load-bearing capacity are critical.
This machine is fully customizable according to customer requirements, including profile design, thickness range, and material grade. It supports processing high-strength materials such as G350 and G550 steel, ensuring reliable performance in demanding construction environments.

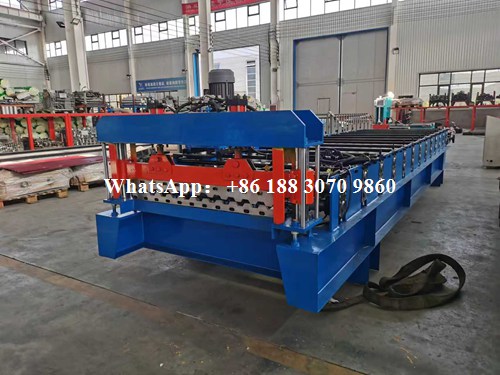

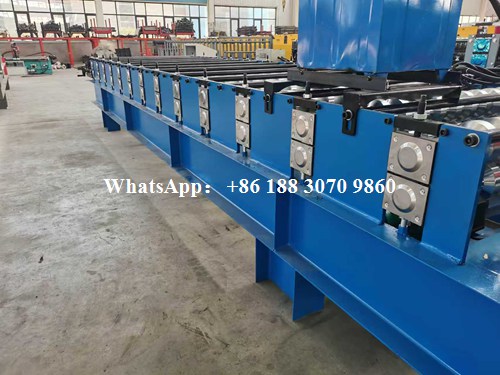

The main body of the IBR roof sheet forming machine is constructed with a heavy-duty steel frame, ensuring excellent rigidity and stability during high-speed production. The roll forming stations are precisely aligned to guarantee accurate shaping of roofing sheets.

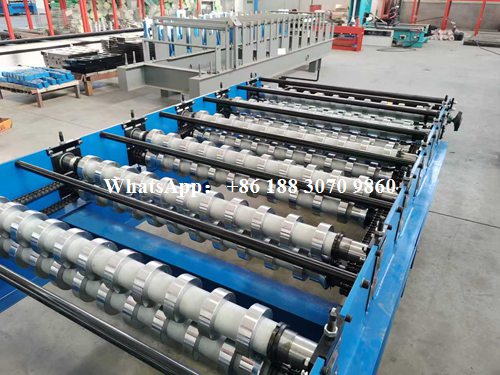

The forming rollers are made from high-grade steel and undergo heat treatment to enhance wear resistance and durability. This ensures consistent product quality even under long-term continuous operation.

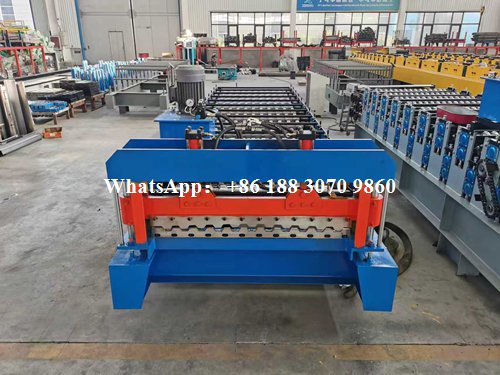

The hydraulic cutting head is designed for precise and clean cutting of IBR roofing sheets. It ensures accurate length control and smooth edges without deformation, which is essential for installation quality.
The cutting system operates synchronously with the forming process, improving production efficiency and reducing downtime. Its robust design ensures reliable performance over long production cycles.
Material Type: G350 / G550 Steel / Galvanized Steel
Material Thickness: 0.3 – 0.8 mm
Forming Speed: 10 – 25 m/min
Roller Stations: 16 – 20 Stations
Control System: PLC Automatic Control
Cutting Type: Hydraulic Cutting
Power Supply: 380V / 50Hz / 3 Phase (Customizable)
All specifications of the IBR roof sheet forming machine can be customized based on project requirements and local standards.

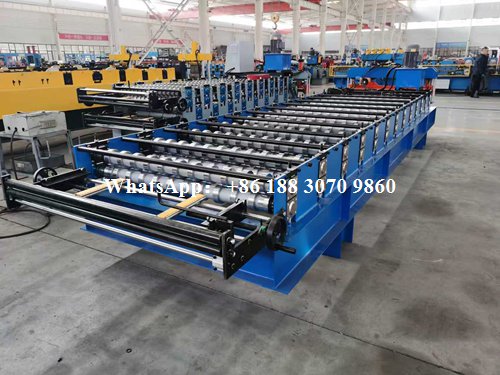

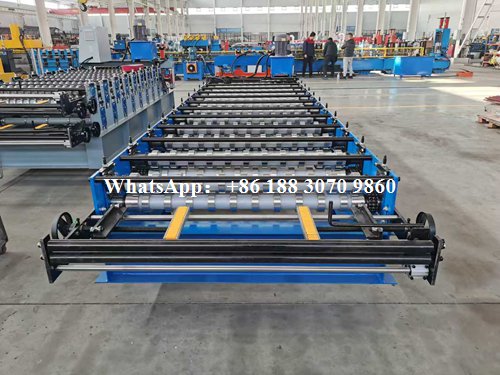

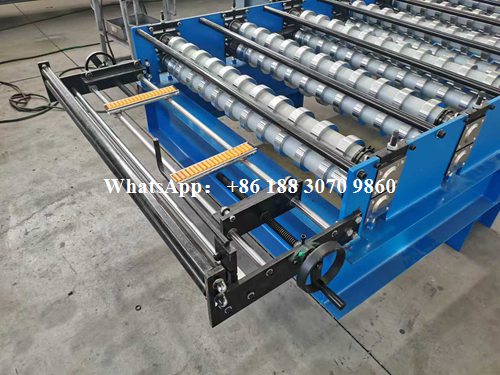

The feeding section ensures stable and precise entry of raw material into the IBR roof sheet forming machine. It maintains proper alignment of the metal coil, preventing deviation during forming.
This system is designed to handle high-strength materials such as G350 and G550 efficiently, ensuring smooth feeding and consistent forming quality.
The side view of the IBR roof sheet forming machine highlights the complete production line layout, showing the coordinated operation of each unit from feeding to cutting. This ensures efficient and continuous production.
The shipment image demonstrates the machine ready for delivery, reflecting our professional packaging and logistics capabilities to ensure safe transportation to global customers.
With over 30 years of manufacturing experience, we specialize in producing high-quality roll forming machines for global markets. Our factory is dedicated to providing reliable and efficient equipment tailored to customer needs.
Our machines have been exported to more than 110 countries, and we offer flexible customization solutions including profile design, machine configuration, and automation upgrades.
Our professional technical team provides comprehensive support, including installation guidance, training, and after-sales service to ensure stable and long-term operation.
Q1: Can the IBR roof sheet forming machine process G550 material?
A: Yes, the machine can be customized to process high-strength materials such as G350 and G550 steel.
Q2: Is the machine customizable?
A: Yes, we provide full customization based on profile design, thickness range, and production requirements.
Q3: What is the production speed?
A: The forming speed typically ranges from 10 to 25 meters per minute depending on configuration.
Q4: Do you provide technical support?
A: Yes, we offer installation guidance, training, and after-sales support to ensure smooth operation.
