Develivery time:30-45 days

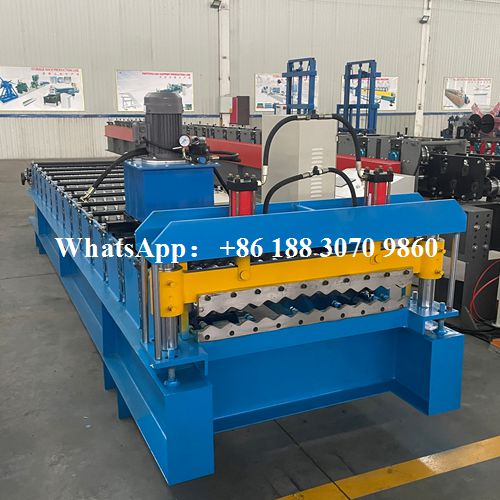

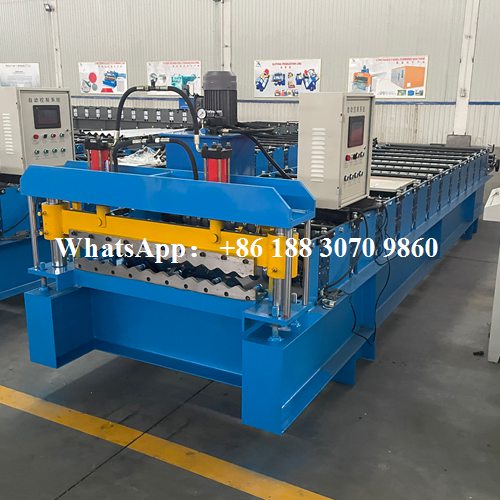

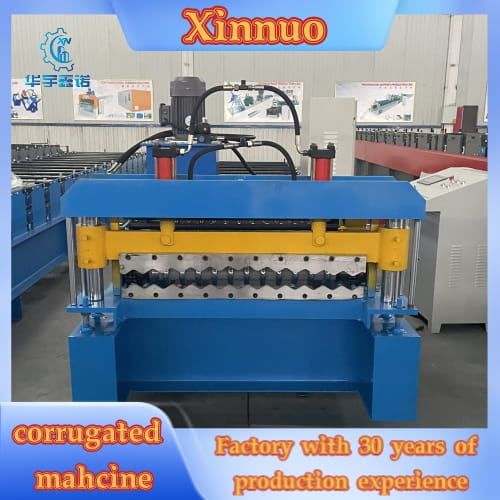

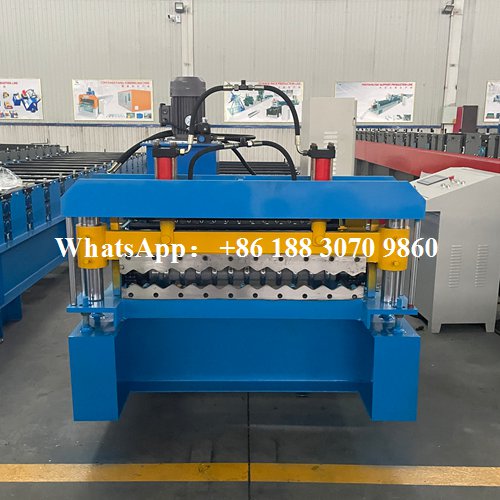

Model: Corrugated Roof Sheet
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:0086-188 3070 9860
The corrugated roof sheet making machine price varies depending on machine configuration, production capacity, and customization requirements. Understanding what affects the price helps buyers make a more accurate comparison and choose the right solution for their roofing sheet production needs.
A corrugated roof sheet making machine is mainly used to produce metal roofing sheets from galvanized steel, PPGI, or similar materials. Through a continuous roll forming process, flat steel coils are shaped into uniform corrugated profiles with consistent wave depth and pitch.
The standard production line usually consists of a decoiler, roll forming system, cutting unit, and output table. Each part plays an important role in ensuring stable production and accurate sheet dimensions.

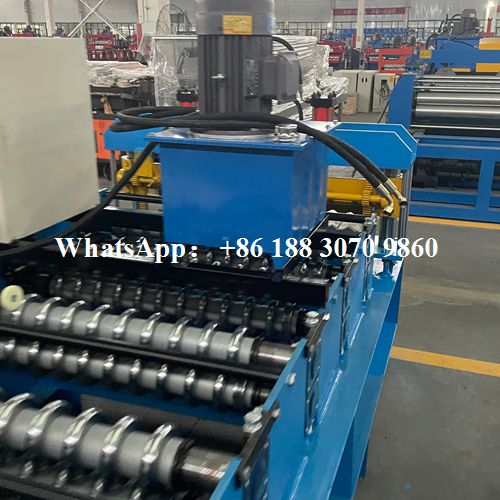

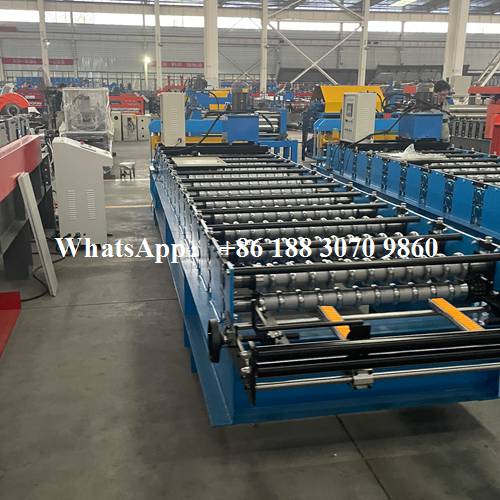

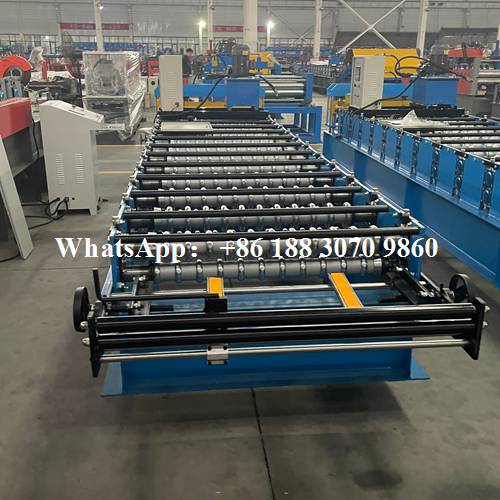

The roll forming section is the core of the machine. Precision-machined rollers gradually shape the steel strip, reducing internal stress and ensuring smooth corrugation. A stronger machine frame and well-aligned shafts help maintain accuracy during long-term operation.
The price of a corrugated roof sheet making machine is not fixed. It is influenced by several technical and commercial factors, including:
Sheet thickness range and material type
Corrugated profile design and wave size
Forming speed and production capacity
Automation level (manual, semi-automatic, or fully automatic)

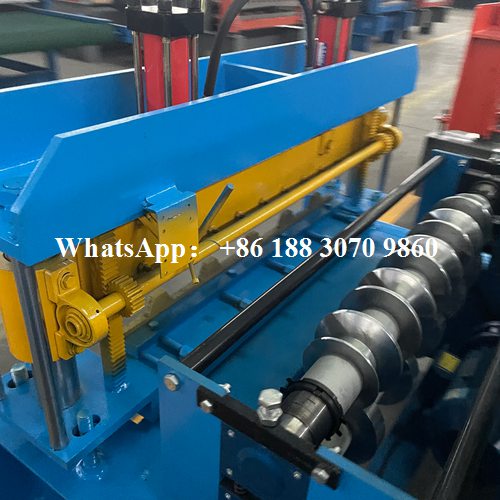

Cutting system type (manual, hydraulic, or servo-controlled)
Machines with higher speed, thicker material capability, or advanced automation will naturally have a higher price, while basic configurations are more suitable for startups or small workshops.
Most corrugated sheet production lines are customized according to customer requirements. Optional equipment such as hydraulic decoilers, automatic stackers, or PLC touch-screen control systems can be added to improve efficiency and reduce labor costs.
Customization allows buyers to balance machine performance with budget, which is why prices may vary significantly even for machines producing similar corrugated profiles.
Below is a reference table showing common specifications. Final parameters can be adjusted based on actual requirements.
| No. | Corrugated Roof Sheet Making Machine Price | |
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | 13 Rows |
| 3 | Dimensions | 6.8*1.6*1.7m |
| 4 | Motor Power | 4Kw |
| 5 | Pump Station Motor | 4Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 4200kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
Corrugated roofing sheets produced by this machine are widely used in residential houses, warehouses, factories, and agricultural buildings. A reliable corrugated roof sheet making machine ensures stable output quality, which directly impacts roofing performance and long-term customer satisfaction.
When evaluating corrugated roof sheet making machine price, it is important to look beyond the initial cost. Machine durability, forming accuracy, after-sales support, and customization capability all contribute to the long-term value of the investment.
Choosing the right configuration ensures efficient production, reduced downtime, and consistent roofing sheet quality over many years of operation.
