Corrugated Iron Machine

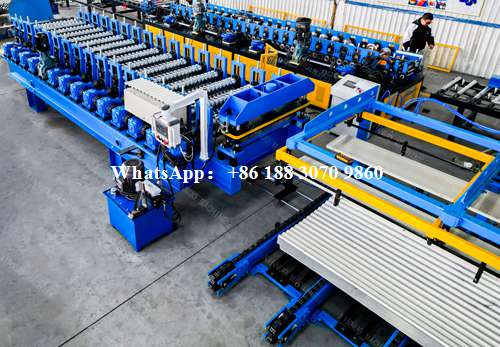

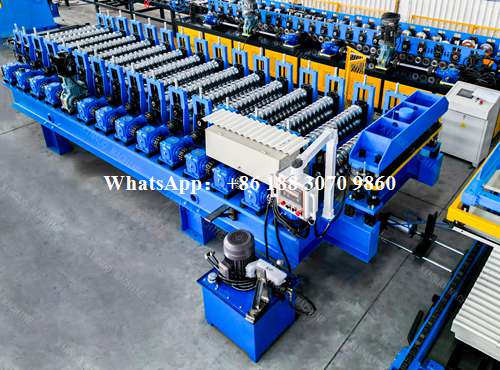

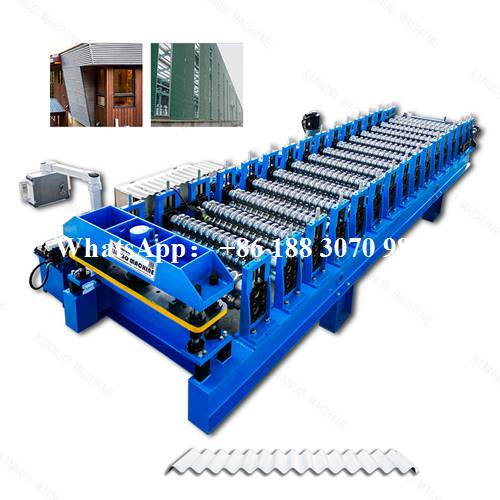

Corrugated Iron Machine – Detailed Production Line Description

The corrugated iron machine is designed for stable and efficient production of metal corrugated roofing sheets. This complete production line adopts a stand-type forming structure combined with gearbox-driven transmission, and is equipped with a hydraulic decoiler and automatic stacking system, making it suitable for long-term industrial operation.

Hydraulic Decoiler for Stable Coil Feeding

The line starts with a hydraulic decoiler, which ensures smooth and controlled coil feeding. Hydraulic expansion and braking provide stable tension control, improving feeding accuracy and safety when handling steel coils.

This system is ideal for processing heavier coils and supports continuous, high-efficiency production.

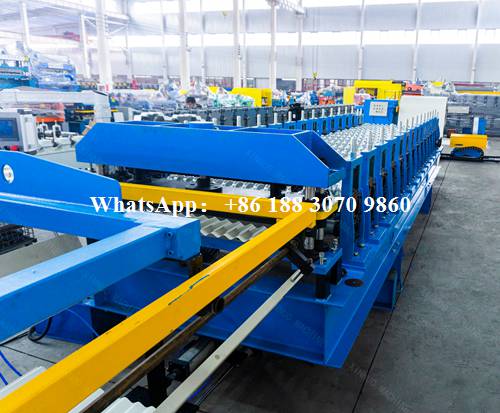

Stand-Type Roll Forming Structure

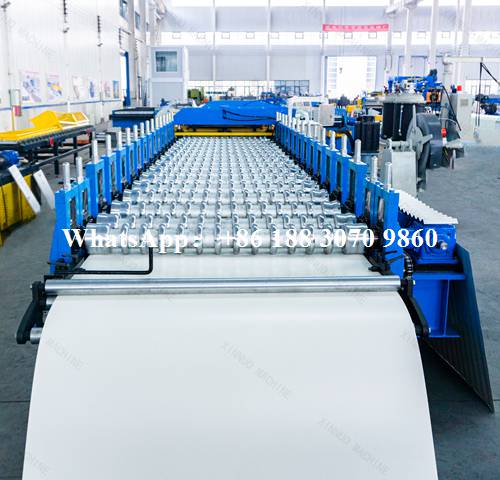

The roll forming machine uses a stand (casting frame) structure, offering higher rigidity and better alignment compared to plate-welded frames. Each forming station is independently supported, reducing vibration and maintaining forming accuracy during long production runs.

Precision-machined rollers gradually shape the steel strip into uniform corrugated iron profiles with consistent wave depth and surface quality.

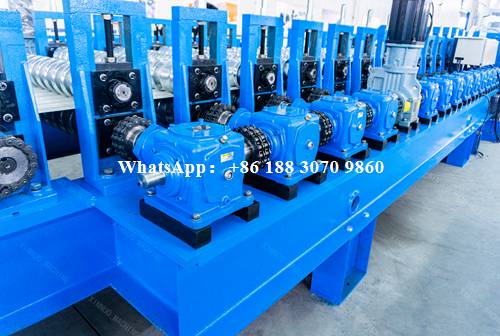

Gearbox-Driven Transmission System

The gearbox drive system delivers stable and balanced power to all forming stations. Compared with chain-driven machines, gearbox transmission provides smoother operation, lower noise, reduced wear, and higher forming accuracy.

This design significantly extends machine service life and reduces maintenance requirements, making it suitable for high-speed and continuous production.

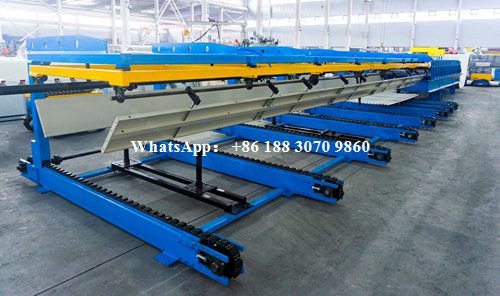

Automatic Stacking System

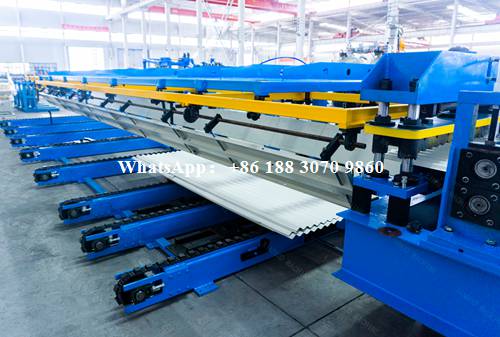

After forming and cutting, finished corrugated iron sheets are transferred to an automatic stacking machine. The stacker arranges sheets neatly and consistently, reducing manual handling and improving workplace safety.

Automatic stacking greatly enhances overall production efficiency, especially for large-volume manufacturing.

Control System and Operation

The entire corrugated iron machine line is controlled by a centralized PLC system. Operators can easily set production parameters such as sheet length, speed, and stacking quantity. All main units operate in synchronization, ensuring smooth and reliable production.

Key Advantages of This Corrugated Iron Machine Line

• 1. Stand-type structure for high rigidity and stability

• 2. Gearbox-driven transmission for smooth and precise forming

• 3. Hydraulic decoiler for safe and stable coil feeding

• 4. Automatic stacking system to reduce labor and improve efficiency

• 5. Suitable for long-term, high-speed industrial production

Applications

Corrugated iron sheets produced by this machine are widely used in roofing and wall cladding for warehouses, factories, agricultural buildings, and residential projects. The machine is suitable for manufacturers serving both domestic and export markets.

Conclusion

A corrugated iron machine equipped with stand structure, gearbox drive, hydraulic decoiler, and automatic stacker provides a reliable and efficient solution for modern corrugated roofing sheet production. It is an ideal choice for customers seeking high precision, durability, and long-term operational stability.
