Corrugated Sheet Machine

Corrugated Sheet Machine – Product Details

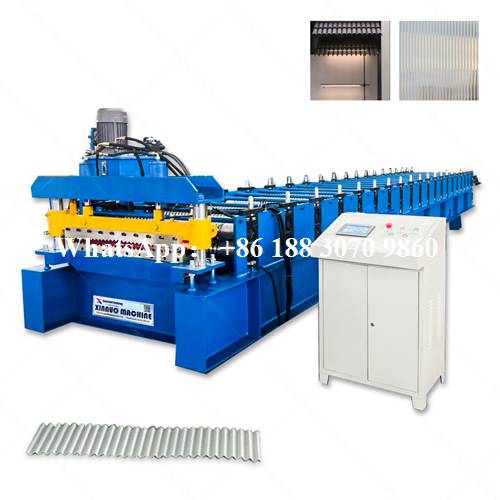

The corrugated sheet machine is designed for the continuous production of metal corrugated sheets used in roofing and wall cladding applications. It converts flat steel coils into uniform corrugated profiles through a precise roll forming process, ensuring stable quality and efficient output.

This machine is widely used for processing galvanized steel, pre-painted steel (PPGI), and similar metal materials. With a solid frame structure and well-designed forming system, it maintains profile accuracy and surface quality during long production runs.

Machine Structure and Forming System

A standard corrugated sheet machine consists of a decoiler, roll forming section, cutting system, and run-out table. Each component is designed to work smoothly together to ensure stable feeding and accurate forming.

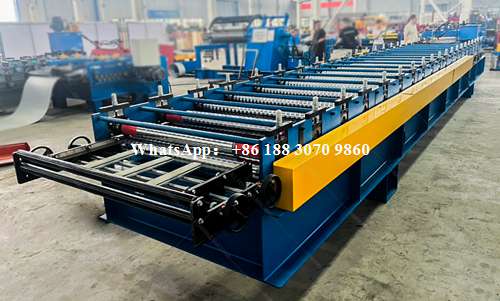

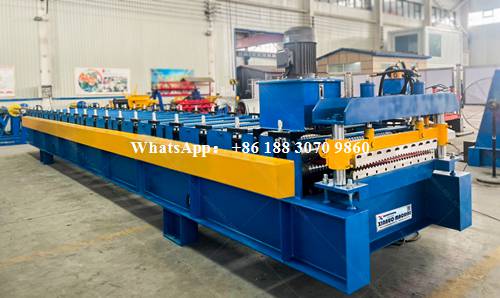

The roll forming section is the core of the machine. Multiple roller stations gradually shape the steel strip, reducing material stress and preventing deformation. Precision-machined rollers and properly aligned shafts help ensure consistent corrugation and long service life.

Cutting System and Control Operation

The cutting system is typically hydraulic and synchronized with the forming speed, allowing sheets to be cut automatically to preset lengths. Clean and accurate cutting improves the appearance and usability of the finished sheets.

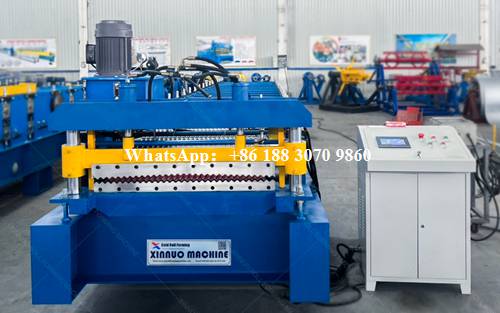

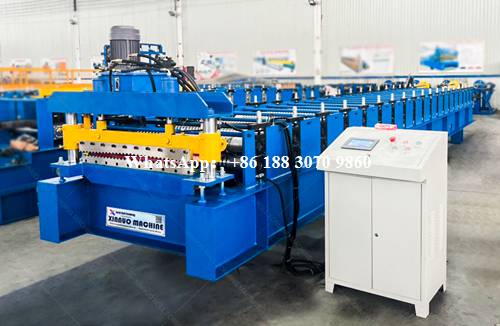

The machine is controlled through an easy-to-use electrical control system. Operators can set sheet length, production speed, and batch quantity through the control panel, making daily operation simple and efficient.

Customization and Optional Equipment

Corrugated sheet machines can be customized based on production requirements. Profile shape, material thickness range, forming speed, and automation level can all be adjusted. Optional equipment such as hydraulic decoilers, automatic stacking systems, or advanced PLC controls can be added to improve efficiency and reduce labor costs.

Customization ensures the machine fits different market demands, from small workshops to large-scale industrial roofing sheet production lines.

Technical Parameters Overview

Below is a reference overview of common specifications. Final machine parameters depend on the selected configuration and customer requirements.

Applications and Production Value

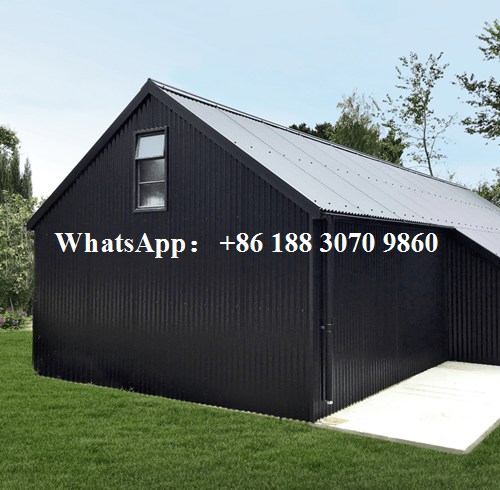

Corrugated sheets produced by this machine are widely used in residential housing, warehouses, factories, agricultural buildings, and commercial projects. A reliable corrugated sheet machine ensures stable production quality, helping manufacturers reduce waste and improve market competitiveness.

Summary

Investing in a high-quality corrugated sheet machine provides consistent forming accuracy, stable operation, and flexible customization options. With proper configuration and maintenance, the machine supports efficient metal roofing sheet production over many years.
