Develivery time:30-45 days
Model: Corrugated Roof Sheet
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:0086-188 3070 9860

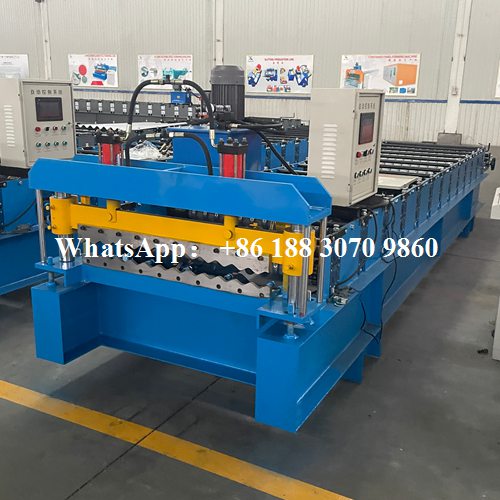

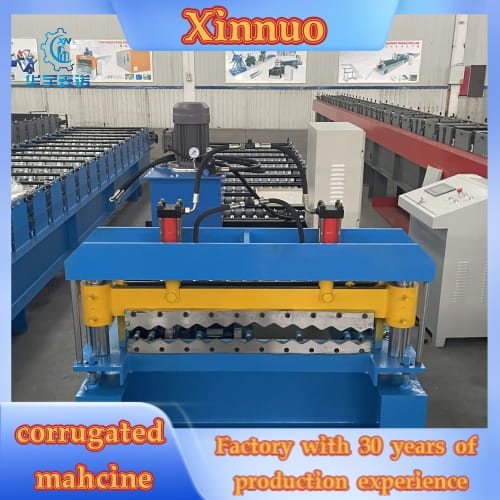

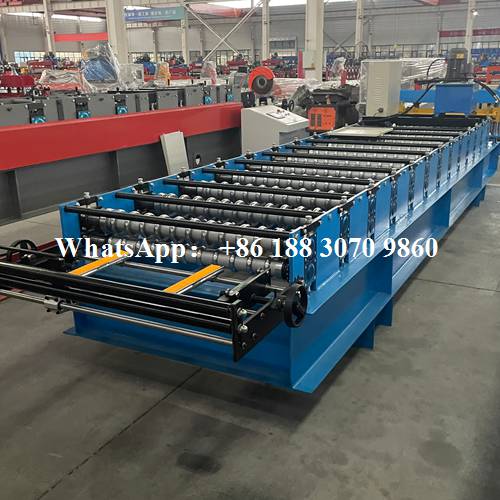

The corrugated roof machine is designed for reliable and efficient production of metal corrugated roofing sheets. This model adopts a middle plate structure, combined with a double guide post cutting system and double-row chain transmission, making it a practical and stable solution for roofing sheet manufacturing.
| No. | corrugated roof sheet making machine | |
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | 13 Rows |
| 3 | Dimensions | 6.8*1.6*1.7m |
| 4 | Motor Power | 3Kw |
| 5 | Pump Station Motor | 3Kw |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 4200kgs |
| 11 | Main structure of the machine | 350H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 0.6 Inch double |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
The roll forming machine uses a middle plate structure, providing balanced support for each forming station. This structure helps maintain proper alignment during the forming process and ensures stable operation under continuous production conditions.

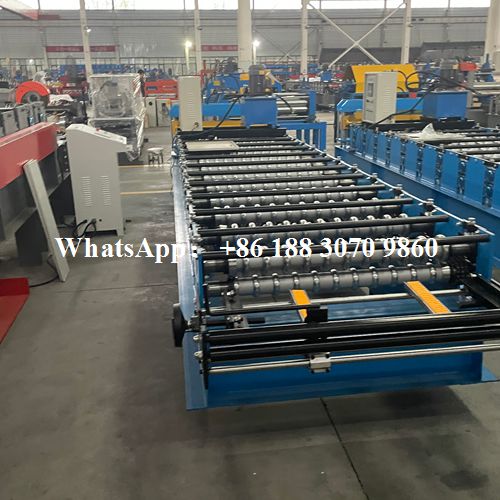

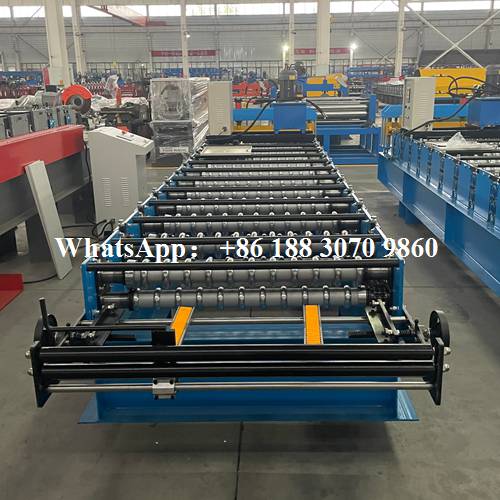

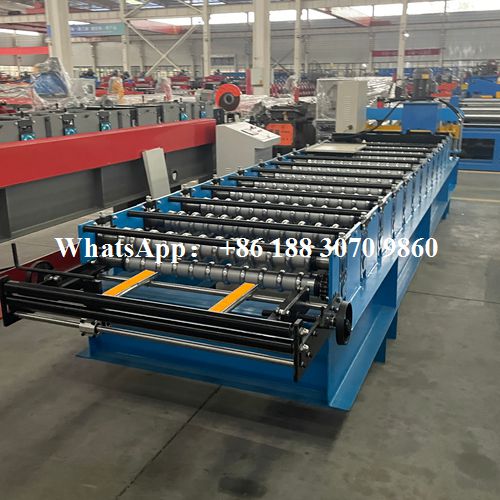

Precision-machined rollers gradually shape the metal strip into uniform corrugated profiles, delivering consistent wave depth and smooth surface quality.

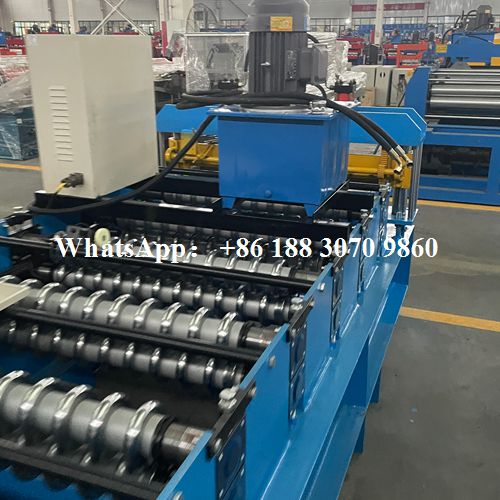

The machine is driven by a 6-point double-row chain transmission system, ensuring synchronized power delivery to all forming stations. Compared with single-chain designs, the double-chain structure offers improved stability, better load distribution, and reduced vibration during operation.
This transmission system is suitable for standard-speed production lines and provides reliable performance with simple maintenance.

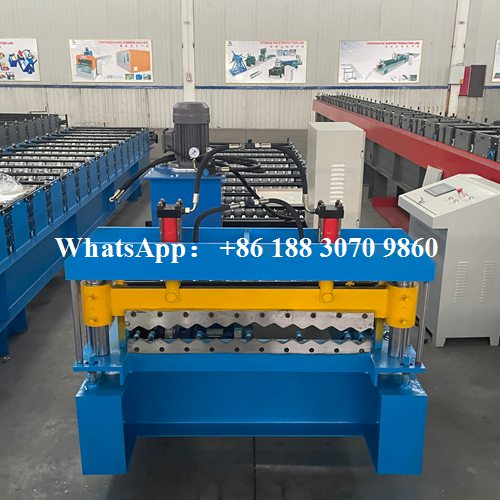

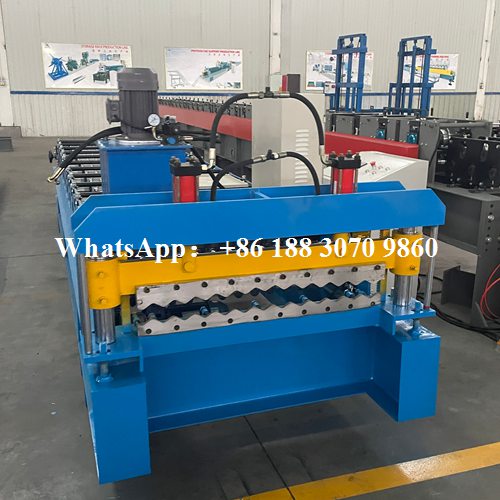

The cutting unit is designed with a double guide post structure, ensuring smooth vertical movement and accurate cutting. This design helps maintain cutting precision and extends blade service life by reducing side force and vibration.
Clean and consistent cutting improves the final appearance of the corrugated roofing sheets and reduces material waste.
The corrugated roof machine is controlled through a practical electrical control system. Operators can easily set sheet length and production parameters, allowing stable and repeatable production with minimal manual adjustment.
Middle plate structure for balanced and stable forming
6-point double-row chain drive for reliable power transmission
Double guide post cutting for accurate and clean sheet cutting
Simple structure with easy maintenance
Cost-effective solution for standard roofing production
Corrugated roofing sheets produced by this machine are widely used in residential buildings, warehouses, agricultural structures, and light industrial facilities. The machine is suitable for small to medium-scale roofing sheet manufacturers.
A corrugated roof machine featuring middle plate structure, double guide post cutting, and double-row chain transmission offers a reliable and economical solution for corrugated metal roofing sheet production. It balances performance, durability, and investment cost for long-term operation.
