Corrugated Sheet Machine

Corrugated Iron Making Machine – Production Line Description

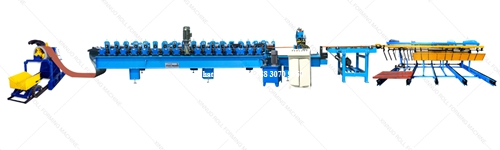

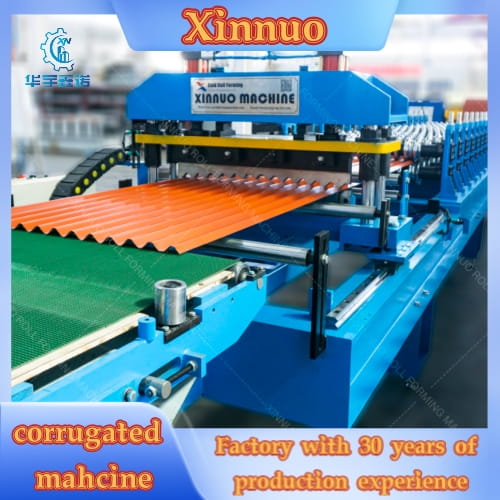

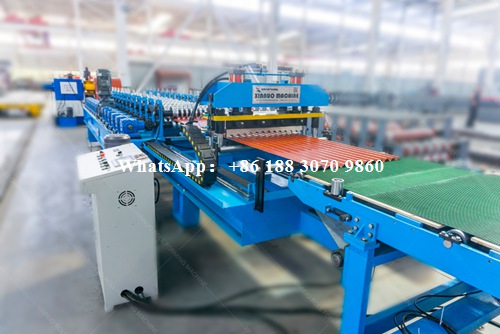

The corrugated iron making machine is a complete production line designed for high-efficiency and stable manufacturing of metal corrugated roofing sheets. This line adopts a stand-type forming structure, gearbox-driven transmission, and servo tracking cutting system, combined with a hydraulic decoiler and automatic stacking system, making it suitable for continuous industrial production.

Hydraulic Decoiler System

The production line starts with a hydraulic decoiler, which ensures stable and smooth coil feeding. The hydraulic expansion and braking system allow safe coil loading and controlled unwinding, reducing material tension and improving feeding accuracy.

This system is especially suitable for handling heavier steel coils and supports long, uninterrupted production cycles.

Stand-Type Roll Forming Structure with Gearbox Drive

The roll forming machine uses a stand (casting frame) structure, providing excellent rigidity and vibration resistance. Each forming station is independently supported, ensuring precise alignment and long-term stability.

The gearbox-driven transmission delivers consistent power to each forming station, offering smoother operation and higher forming accuracy compared to chain-driven systems. This design significantly reduces wear, noise, and maintenance requirements.

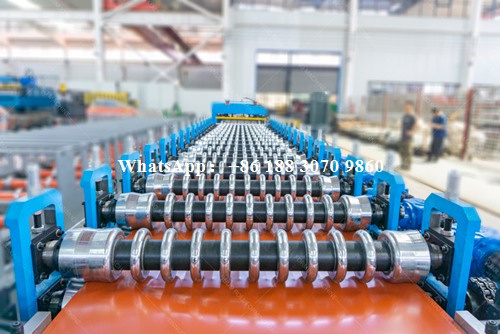

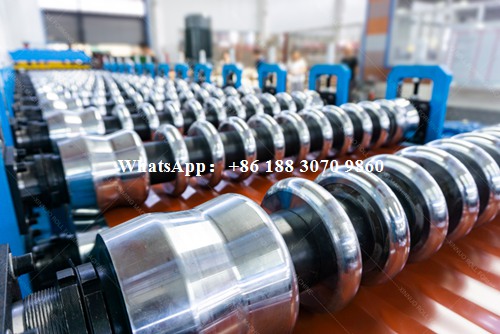

Precision-machined rollers gradually form the steel strip into uniform corrugated iron profiles, ensuring consistent wave shape and high surface quality.

Servo Tracking Cutting System

The line is equipped with a servo flying shear (servo tracking cutting system), which allows continuous cutting without stopping the forming process. The servo system tracks the sheet movement in real time, ensuring accurate length control and clean cutting edges.

This cutting method improves production speed, reduces material waste, and is ideal for high-output corrugated iron sheet production.

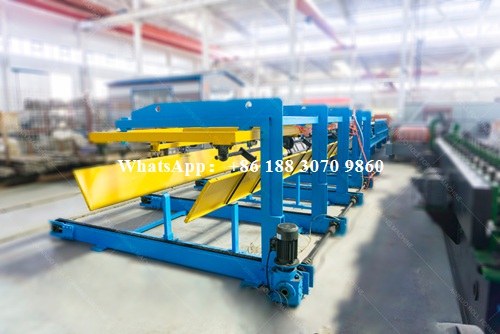

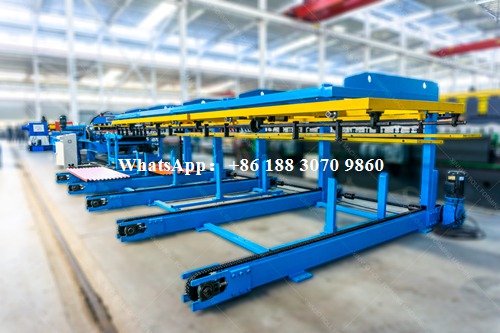

Automatic Stacking System

After cutting, finished corrugated iron sheets are transferred to an automatic stacking machine. The stacking system organizes sheets neatly and safely, reducing manual handling and improving overall production efficiency.

Automatic stacking is especially beneficial for large-scale production lines, helping reduce labor costs and improve workplace safety.

Control System and Automation

The entire corrugated iron making machine line is controlled by a PLC system with a user-friendly interface. Operators can easily set sheet length, production speed, and stacking parameters. The integrated automation ensures synchronized operation of decoiling, forming, cutting, and stacking.

Key Advantages of This Corrugated Iron Making Machine Line

• 1. Stand-type forming structure for high rigidity

• 2. Gearbox-driven transmission for smooth and stable operation

• 3. Servo tracking cutting for precise and continuous production

• 4. Hydraulic decoiler for safe and stable coil feeding

• 5. Automatic stacking system to reduce labor and improve efficiency

• 6. Suitable for long-term, high-speed industrial production

Applications

This corrugated iron making machine is widely used for producing roofing and wall cladding sheets for industrial buildings, warehouses, agricultural facilities, and residential projects. Its high stability and automation level make it suitable for both domestic and export-oriented manufacturers.

Conclusion

A corrugated iron making machine equipped with stand structure, gearbox drive, servo flying shear, hydraulic decoiler, and automatic stacker provides a reliable and efficient solution for modern corrugated roofing sheet production. It is an ideal choice for customers seeking high precision, high output, and long-term operational stability.
