Develivery time:30-45 days
Model: Roof Tile Forming Machine
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860

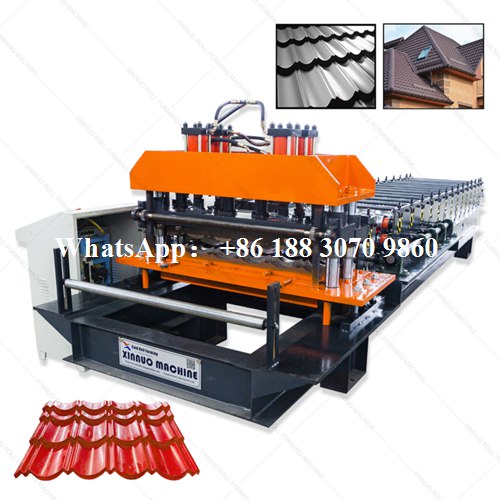

The tile forming machine is designed for producing high-quality glazed roofing tiles with decorative flower-cut edges and precise structural forming. It is widely used in villa roofs, residential buildings, and architectural decorative roofing projects.
Equipped with servo transmission and guide column pressing and cutting system, this machine ensures stable forming accuracy, elegant tile appearance, and efficient continuous production performance.
The flower-cut glazed tile forming system is designed to create decorative edge patterns that enhance the aesthetic value of roofing materials.
The precision forming structure ensures smooth tile surface and consistent wave patterns for high-end architectural applications.
The servo transmission system provides accurate synchronization for forming and cutting operations, ensuring smooth production flow and stable performance.
This advanced control system improves efficiency and reduces operational errors during high-speed production.
Machine Type: Tile Forming Machine
Cutting Type: Guide Column Pressing & Cutting System
Transmission System: Servo Drive
Material Type: Color Steel / Galvanized Steel
Material Thickness: 0.3 – 0.8 mm
Forming Speed: 3 – 8 m/min
Control System: PLC Automatic Control
Profile Type: Flower Cut Glazed Tile
The machine can be customized according to different decorative tile designs
and production requirements.

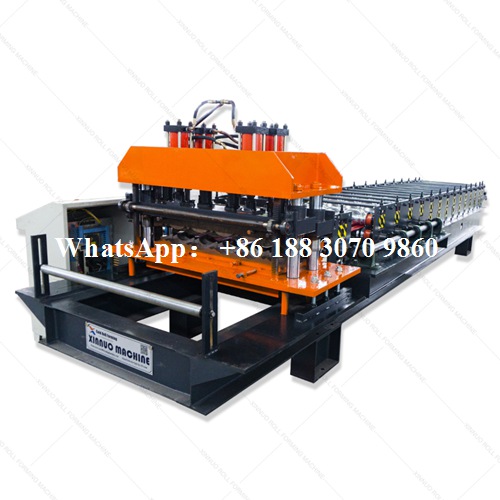

The guide column pressing and cutting system ensures stable and precise cutting of decorative tile profiles, maintaining consistent edge quality.
This structure reduces vibration and improves long-term cutting accuracy during continuous production.

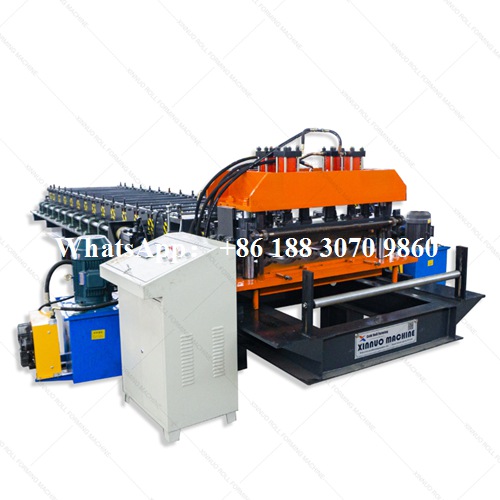

The side view shows a compact and stable production line layout designed for continuous decorative tile manufacturing.
The machine structure ensures reliable operation and high precision output in long-term industrial use.
With over 30 years of experience in roll forming machine manufacturing, we specialize in high-quality roofing and decorative tile production solutions.
Our machines have been exported to more than 110 countries and are widely used in global construction and roofing industries.
We provide customization services, technical support, installation guidance, and long-term after-sales service.
Q1: What is flower-cut tile technology?
A: It is a decorative edge cutting process that enhances roofing appearance.
Q2: What is the advantage of servo transmission?
A: It ensures precise synchronization and stable production performance.
Q3: Is the cutting system stable?
A: Yes, the guide column system ensures accurate and stable cutting.
Q4: Can the machine be customized?
A: Yes, we can customize profiles and machine design according to requirements.
