Develivery time:30-45 days

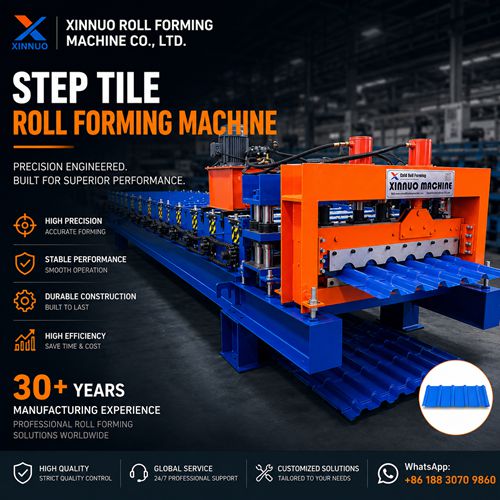

Model: Step Tile Roll Forming Machine
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860
The step tile roll forming machine is designed for producing high-quality step-style roofing tiles with decorative appearance and durable structural performance. It is widely used in residential buildings, villas, and commercial roofing systems.
This machine integrates forming, pressing, and hydraulic cutting functions into one efficient production system. It ensures stable production performance, accurate tile dimensions, and reliable long-term operation.

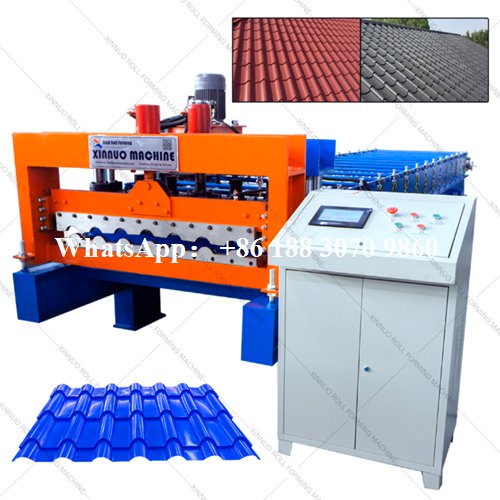

The main body of the step tile roll forming machine adopts a reinforced steel frame structure to ensure stability during continuous industrial production.
The optimized forming system improves tile shaping accuracy and ensures smooth, consistent roofing tile production.

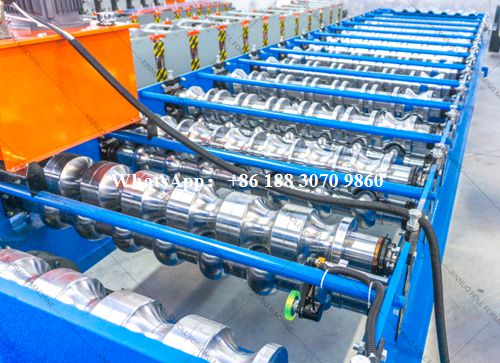

The roller system is manufactured with precision machining technology to ensure accurate tile profile forming and stable production quality.
High-strength roller materials improve wear resistance and extend machine service life during continuous industrial operation.
Machine Type: Step Tile Roll Forming Machine
Material Type: Color Steel / Galvanized Steel
Material Thickness: 0.3 – 0.8 mm
Forming Speed: 3 – 8 m/min
Feeding System: Manual Pre-Cutting Device
Cutting Type: Hydraulic Guide Column Cutting
Control System: PLC Automatic Control
Power Supply: 380V / 50Hz / 3 Phase

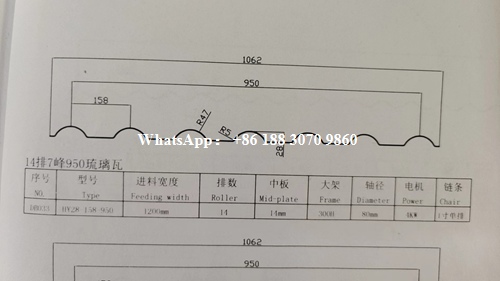

The machine can be customized according to different roofing tile profiles and customer requirements.

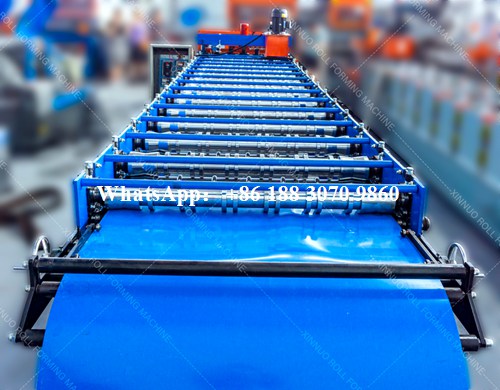

The manual hand cutter installed at the feeding section allows convenient material preparation before forming, improving production flexibility and reducing material waste.
This design is simple, practical, and suitable for different roofing tile production requirements.

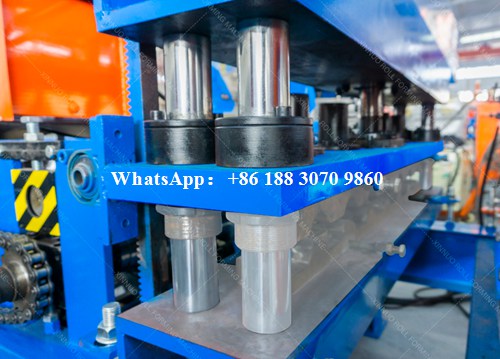

The hydraulic guide column cutting head provides stable and accurate cutting performance while protecting the roofing tile profile from deformation.
The guided cutting structure improves cutting precision and supports long-term stable operation in industrial production environments.
With over 30 years of experience in roll forming machine manufacturing, we provide professional roofing production solutions for customers worldwide.
Our machines have been exported to more than 110 countries and are widely used in construction and roofing industries.
We provide customization services, installation guidance, technical support, and long-term after-sales service.
Q1: What is the advantage of step tile roofing?
A: Step tile roofing provides a decorative appearance and strong roofing performance.
Q2: Is the machine suitable for continuous production?
A: Yes, it is designed for stable industrial production with reliable performance.
Q3: Can the machine be customized?
A: Yes, we can customize tile profiles and machine configurations.
Q4: What is the advantage of hydraulic guide cutting?
A: It improves cutting accuracy and protects the tile profile during production.
