Develivery time:30-45 days
Model: Glazed Tile Roll Forming Machine
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860

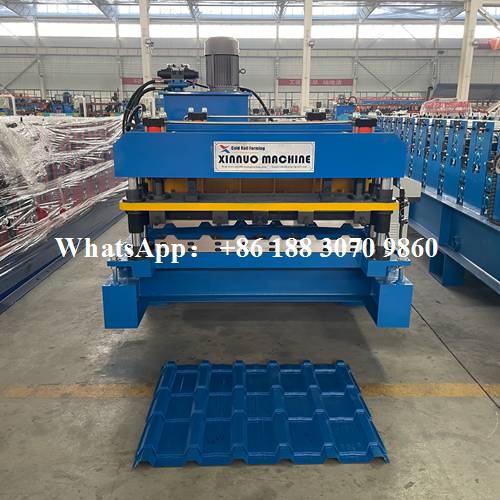

The glazed tile roll forming machine is a specialized roll forming system designed for producing high-quality glazed roof tiles with aesthetic appearance and strong structural performance. It is widely used in residential, commercial, and architectural roofing projects where both durability and visual appeal are required.
This machine integrates advanced forming, pressing, and cutting technology to create tile profiles with clear steps and uniform shapes. With automated operation and stable performance, it ensures efficient production and consistent product quality.

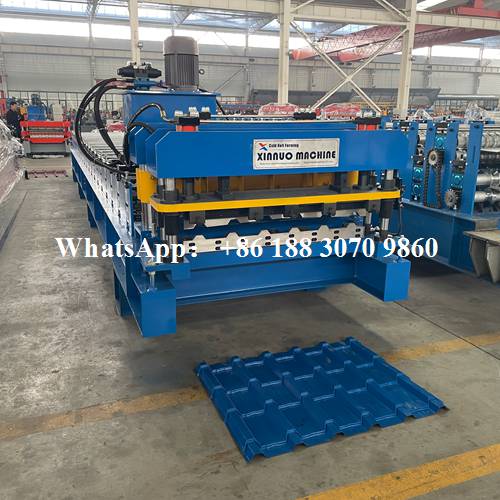

The main body of the glazed tile roll forming machine is built with a heavy-duty frame to ensure rigidity and stability during high-speed production. The forming rollers gradually shape the metal sheet into the required tile profile.
Precision machining and heat-treated rollers guarantee high durability and consistent forming results, even during long production cycles.

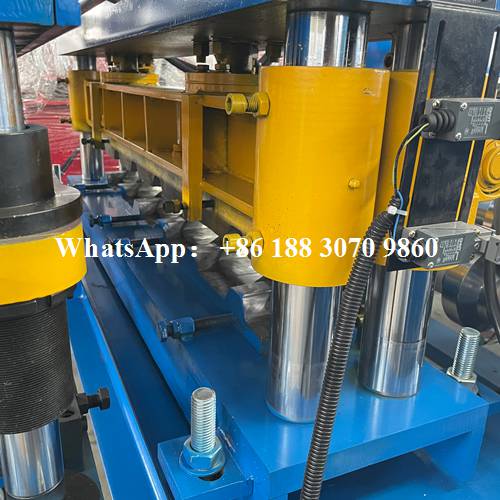

The hydraulic cutting head ensures precise and clean cutting of glazed tiles without damaging the formed profile. It maintains the integrity of the tile shape and improves installation quality.
The cutting system works in coordination with the forming and pressing process, enabling smooth and efficient production without unnecessary interruptions.
Material Type: Color Steel / Galvanized Steel
Material Thickness: 0.3 – 0.8 mm
Forming Speed: 3 – 8 m/min (including step pressing)
Roller Stations: 14 – 18 Stations
Control System: PLC Automatic Control
Cutting Type: Hydraulic Cutting
Power Supply: 380V / 50Hz / 3 Phase
The glazed tile roll forming machine can be customized based on tile design, step length, and production requirements.

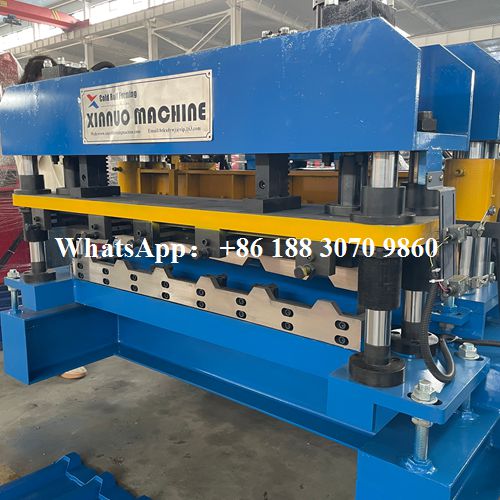

The side view shows the complete layout of the glazed tile roll forming machine, including forming, pressing, and cutting sections. Each unit operates in coordination to ensure smooth workflow.
The stable transmission system reduces vibration and enhances machine reliability, ensuring long-term consistent performance.

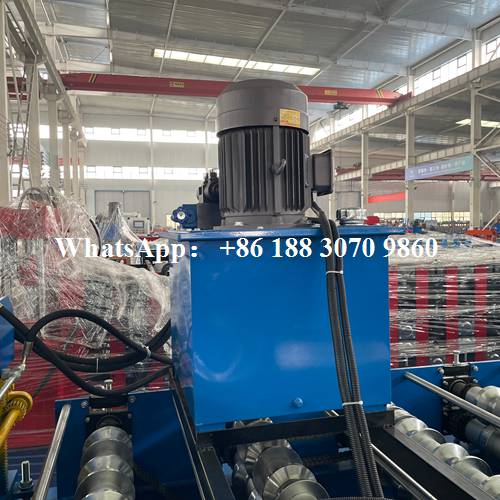

The hydraulic oil tank system provides stable power for cutting and pressing operations. It ensures smooth and reliable hydraulic performance throughout the production process.
High-quality hydraulic components improve system efficiency and reduce maintenance requirements, contributing to long-term stable operation of the machine.
With over 30 years of experience in roll forming machine manufacturing, we provide advanced and reliable solutions for global customers.
Our machines have been exported to more than 110 countries, and we offer full customization services to meet various market requirements.
Our professional technical team provides complete support including installation, training, and after-sales service to ensure long-term stable operation.
Q1: Can the glazed tile roll forming machine be customized?
A: Yes, we can customize tile profiles, step length, and machine configuration according to your needs.
Q2: What materials can the machine process?
A: It can process color steel and galvanized steel materials.
Q3: Is the production fully automatic?
A: Yes, the machine operates with a PLC automatic control system for efficient production.
Q4: Does the machine require frequent maintenance?
A: No, it is designed for durability and requires only routine maintenance.
