Develivery time:30-45 days
Model: IBR 686 762 corrugated dual profile
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860
The double layer roll forming machine is an advanced roofing production system designed to produce two different sheet profiles in one machine. This model supports IBR 686 and 762 corrugated profiles, making it an ideal solution for manufacturers requiring flexibility and efficiency in production.
By integrating two forming layers into a single frame, the machine reduces factory space requirements and investment costs. It allows quick switching between profiles, improving productivity and meeting diverse market demands.

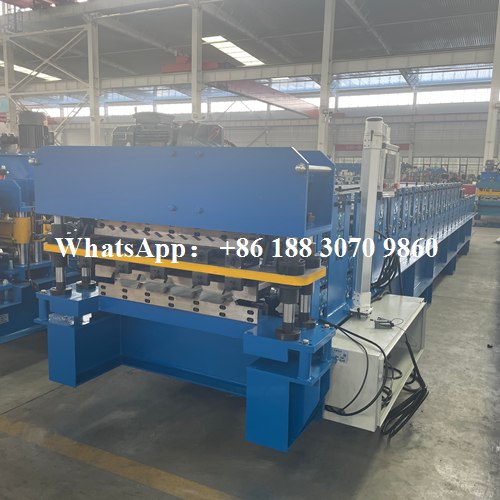

The main body of the double layer roll forming machine features a dual-layer structure, enabling the production of two different roofing profiles within one compact system. The robust frame ensures stability during operation.
Each layer operates independently, allowing precise forming of IBR 686 and 762 corrugated sheets without interference, ensuring consistent quality for both profiles.

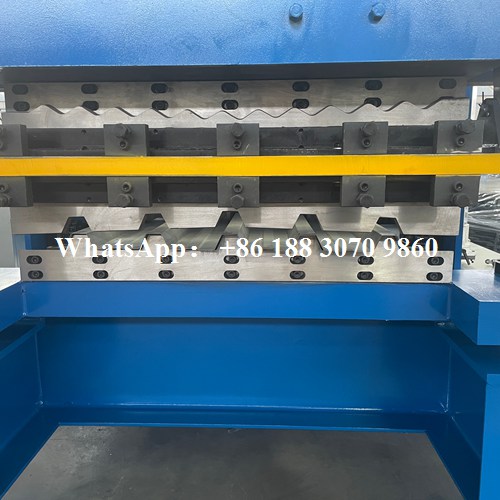

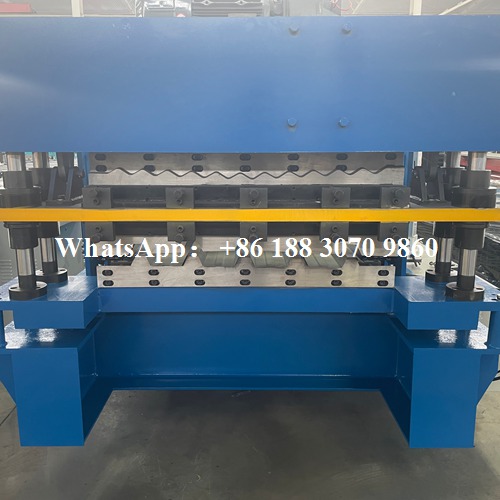

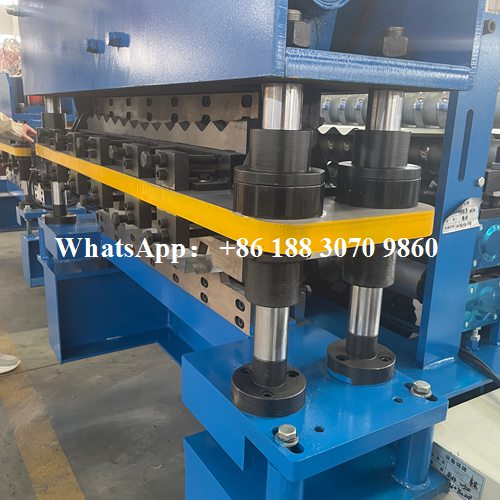

The hydraulic cutting head ensures precise cutting for both upper and lower profiles. It delivers clean edges and accurate lengths, which are essential for roofing installation quality.
The cutting system is synchronized with the forming process, enabling smooth operation and improving overall production efficiency.

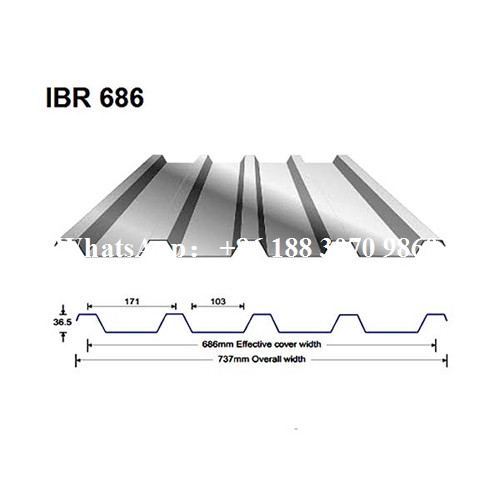

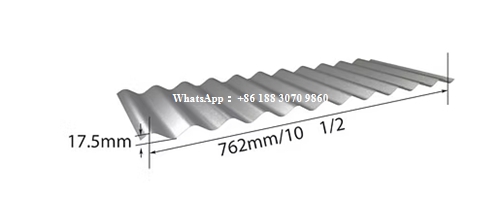

Profiles: IBR 686 & 762 Corrugated
Material Type: Galvanized Steel / Color Steel
Material Thickness: 0.3 – 0.8 mm
Forming Speed: 10 – 20 m/min
Roller Stations: 16 – 20 per layer
Control System: PLC Automatic Control
Cutting Type: Hydraulic Cutting
Power Supply: 380V / 50Hz / 3 Phase
The double layer roll forming machine can be customized for different profiles and production requirements based on customer needs.

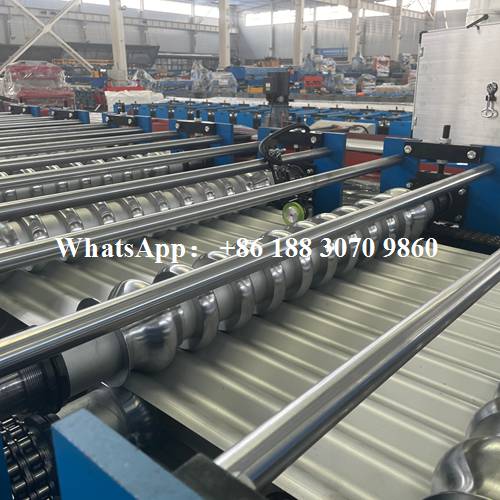

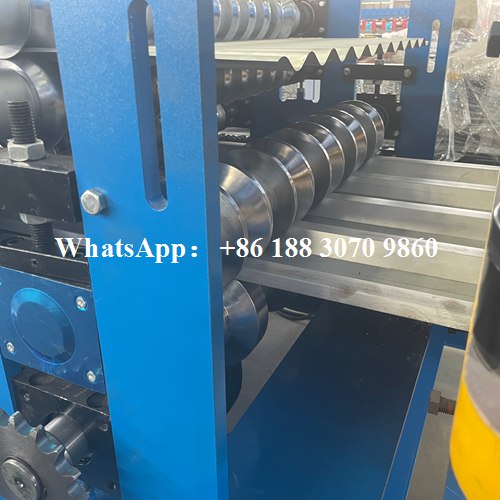

The upper and lower roller systems are designed with high precision to ensure accurate forming of both profiles. Each roller set is independently aligned for optimal shaping performance.
High-quality materials and heat treatment processes enhance durability, ensuring long-term stable operation for both layers.

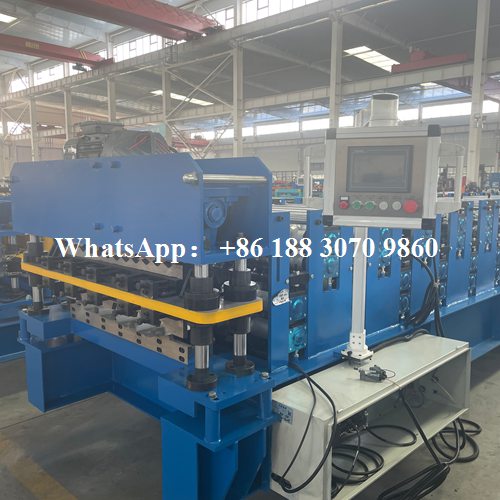

The PLC control system provides an intuitive interface for operating the double layer roll forming machine. Operators can easily switch between profiles and adjust production parameters.
The automated control enhances efficiency, reduces human error, and ensures stable operation throughout the production process.
With over 30 years of experience in roll forming machine manufacturing, we specialize in providing high-quality and reliable equipment for global customers.
Our machines have been exported to more than 110 countries, offering flexible solutions and customization services for different markets.
Our professional technical team provides full support including installation, training, and after-sales service to ensure long-term stable operation.
Q1: Can the machine produce two profiles at the same time?
A: No, it produces one profile at a time, but allows quick switching between the two layers.
Q2: What profiles are supported?
A: This model supports IBR 686 and 762 corrugated profiles.
Q3: Is the machine customizable?
A: Yes, we can customize profiles, thickness range, and configuration based on your requirements.
Q4: Does the PLC system simplify operation?
A: Yes, the PLC system ensures easy operation and efficient production control.
