Develivery time:30-45 days
Payment:40% T/T deposit,60% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need.
WhatsApp:+86 188 3070 9860
The tracking shear double-layer roll forming machine is an advanced roofing sheet production system designed for manufacturing two different profiles within one compact machine structure. Equipped with a high-speed tracking shear system, the machine performs cutting without stopping production, significantly improving efficiency.
This machine combines dual-layer roll forming technology with servo-driven tracking cutting, making it suitable for manufacturers requiring flexible profile production, stable operation, and continuous industrial output.

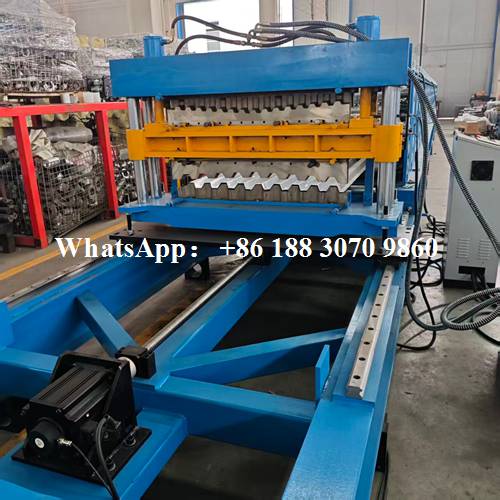

The main body of the tracking shear double-layer roll forming machine adopts a reinforced steel frame structure to ensure stability during continuous high-speed production.
The dual-layer forming system allows production of two different roofing profiles within one machine, reducing factory space requirements and investment costs while increasing production flexibility.

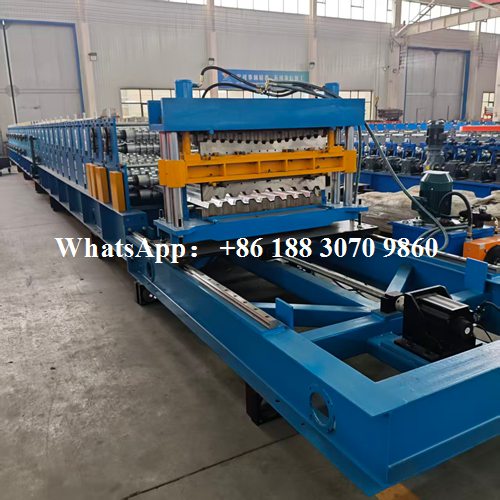

The tracking shear cutting system moves synchronously with the roofing sheet during production, enabling precise cutting without stopping the machine.
This non-stop cutting technology greatly improves production efficiency and reduces downtime, making it ideal for high-volume manufacturing environments.
Machine Type: Double-Layer Roll Forming Machine
Cutting System: Servo Tracking Shear
Profile Capacity: Two Different Profiles
Material Type: Galvanized Steel / Color Steel
Material Thickness: 0.3 – 0.8 mm
Forming Speed: 20 – 35 m/min
Control System: PLC Automatic Control
Power Supply: 380V / 50Hz / 3 Phase
The machine can be customized according to different profile designs and production requirements.

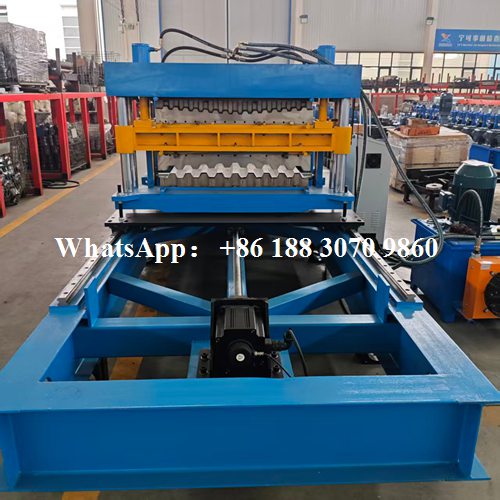

The servo motor system provides precise synchronization for the tracking shear mechanism. This ensures accurate cutting length and stable cutting performance at high production speeds.
High-performance servo control improves machine responsiveness and enhances overall production efficiency and reliability.

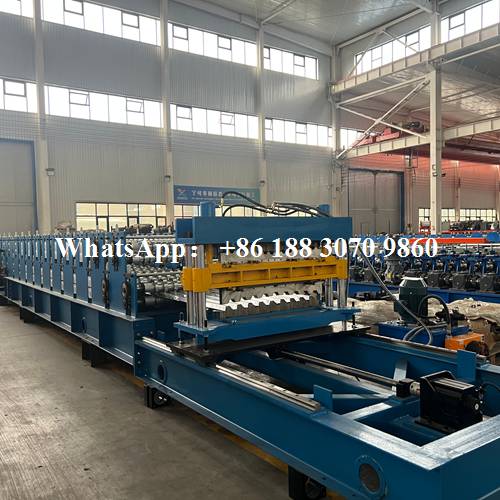

The side view of the production line demonstrates the compact layout and integrated dual-layer structure. The optimized arrangement improves workflow efficiency and reduces installation space.
The machine is designed for stable long-term operation and supports continuous production with minimal interruption.
With more than 30 years of experience in roll forming machine manufacturing, we provide advanced roofing sheet production solutions for customers worldwide.
Our machines have been exported to more than 110 countries and are widely used in industrial and commercial construction industries.
We offer professional customization services, installation guidance, technical training, and long-term after-sales support.
Q1: What is the advantage of tracking shear cutting?
A: Tracking shear allows cutting without stopping the machine, significantly improving production efficiency.
Q2: Can the machine produce two profiles?
A: Yes, the double-layer structure supports two different roofing profiles.
Q3: Is the machine suitable for high-speed production?
A: Yes, the servo tracking system ensures stable high-speed operation and accurate cutting.
Q4: Do you provide customization services?
A: Yes, we can customize the machine according to profile design and production requirements.
