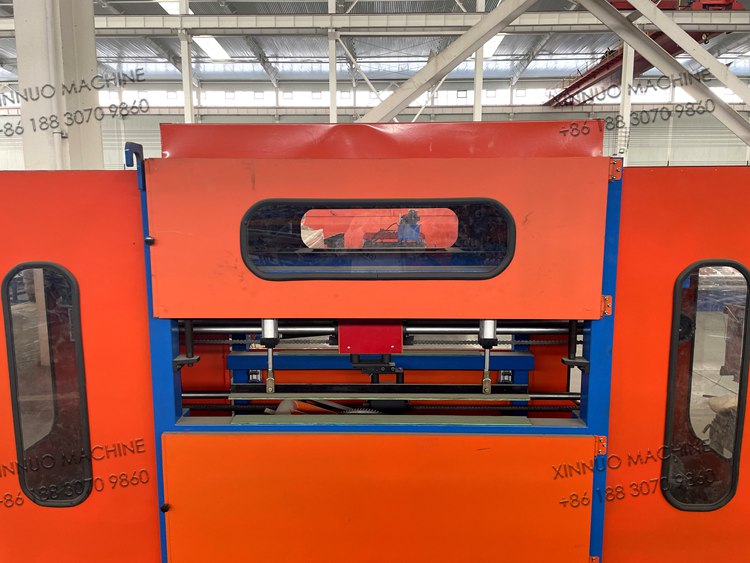

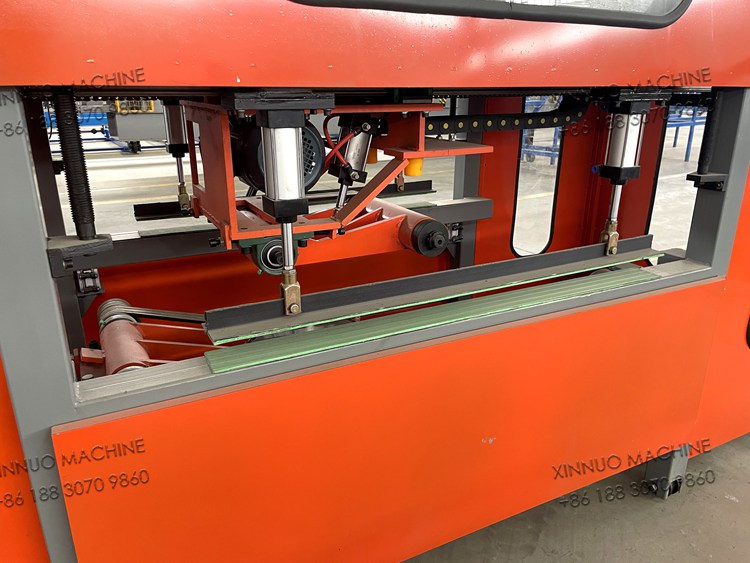

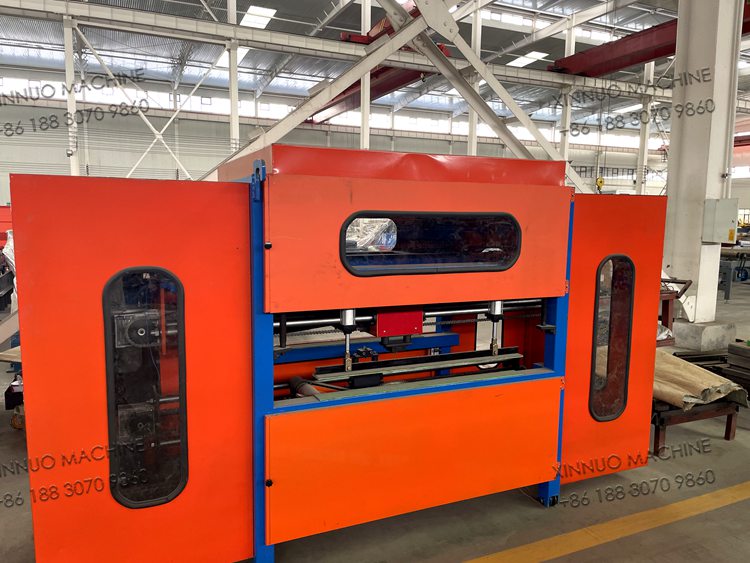

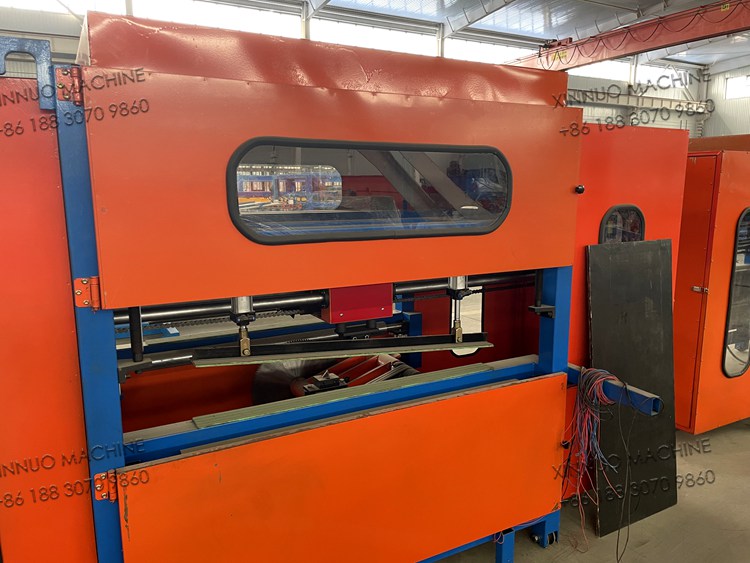

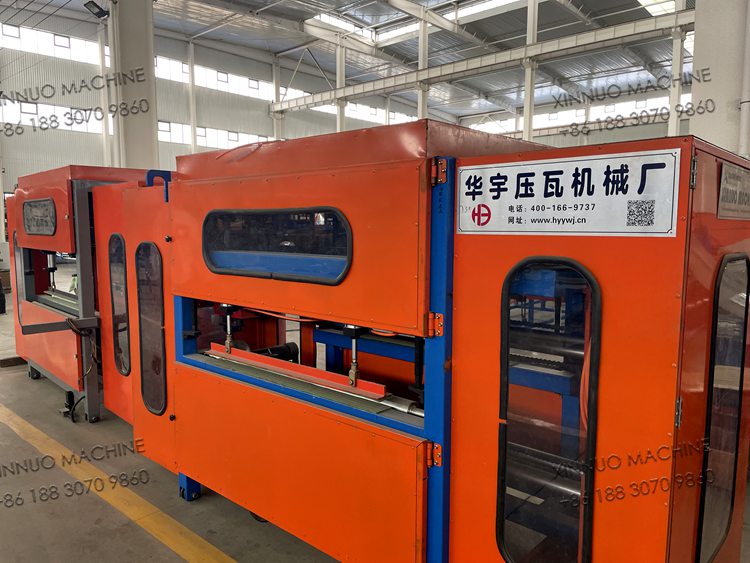

Xinnuo Precision Sandwich Panel Cutting System

Introduction

In the demanding world of modern construction, the integrity and aesthetic appeal of sandwich panels heavily rely on the precision of their cutting. Xinnuo Roll Forming Machinery is proud to present its advanced Sandwich Panel Cutting System, an essential solution designed to deliver unparalleled accuracy and efficiency in your production line. This system ensures that every sandwich panel, regardless of its core material or thickness, meets the most stringent quality standards, providing seamless integration and superior finished products.

Optimizing Your Sandwich Panel Production

The Xinnuo Sandwich Panel Cutting System is engineered to be a critical component within any high-performance sandwich panel production line, whether it's a mineral wool sandwich panel line, a PU sandwich panel line, or an EPS sandwich panel making machine line. It directly addresses the need for clean, precise cuts that are vital for both structural integrity and easy installation of panels.

Key Features and Advantages:

High-Precision Cutting:

1.Equipped with a robust and precise cutting mechanism, our system ensures extremely accurate cuts, minimizing dimensional errors and material waste. This precision is crucial for seamless panel joints and overall project quality.

2. Utilizes advanced sensors and control algorithms to maintain consistent cutting paths and depths.

Versatile Material Compatibility:

1. Designed to effectively cut various sandwich panel core materials including mineral wool, EPS (Expanded Polystyrene), and PU (Polyurethane), accommodating diverse production needs.

2. Capable of handling a wide range of panel thicknesses, ensuring flexibility across different product specifications.

Automated & Integrated Operation:

1. Fully integrated with your existing sandwich panel production line, the system operates automatically, receiving panels directly from the laminating or forming stages.

2. Controlled by a state-of-the-art PLC system (e.g., Siemens or Delta) with an intuitive Human-Machine Interface (HMI) touch screen, allowing for easy parameter setting, monitoring, and fault diagnosis.

High Efficiency and Throughput:

1. Engineered for continuous and high-speed operation, maximizing your daily production output and reducing lead times.

2. The efficient cutting process ensures smooth material flow without bottlenecks, contributing to an optimized sandwich panel line.

Advanced Cutting Tool Technology:

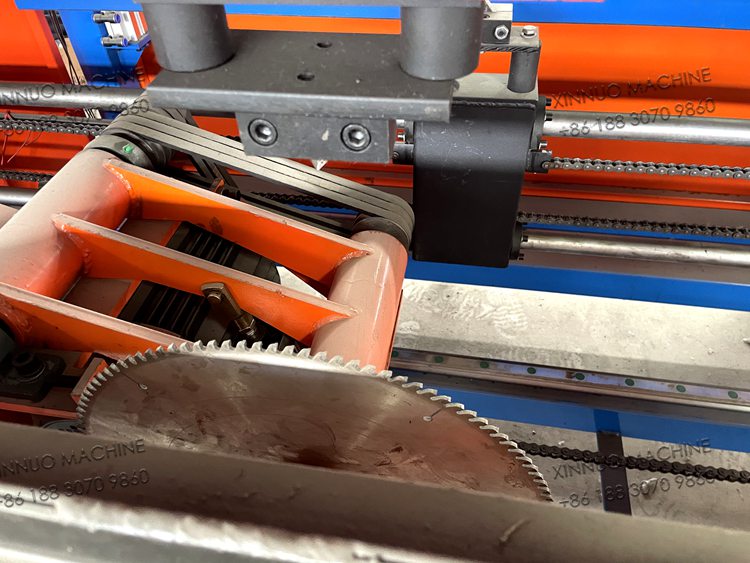

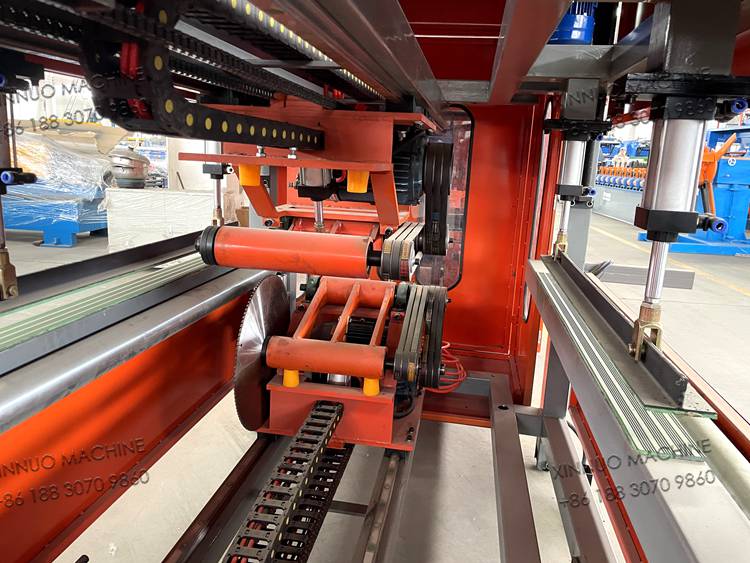

1. Features high-quality, durable cutting tools (such as specific band saw blades or other suitable cutting elements) specifically designed for cutting composite materials, ensuring extended lifespan and consistent cutting performance.

2. Easy and quick tool replacement mechanisms minimize downtime for maintenance.

Enhanced Safety Measures:

1. Incorporates comprehensive safety features, including protective enclosures, emergency stop buttons, and interlocks, to ensure operator safety during all stages of operation.

2. Compliance with international safety standards.

Efficient Dust and Waste Management:

1. Includes an integrated system for effective collection and management of cutting dust and debris, maintaining a cleaner and safer working environment and reducing post-processing cleanup.

Robust Construction:

1. Built with heavy-duty steel frames and high-quality components, ensuring exceptional stability, minimal vibration, and long-term reliability under continuous industrial operation.

Technical Specifications (Typical Configuration):

• Model: Xinnuo [Specific Cutting System Model, e.g., XP-SPCS-1200]

• Applicable Panel Types: Mineral Wool, EPS, PU Sandwich Panels

• Max. Panel Width: Up to 1200 mm

• Max. Panel Thickness: 50 mm - 250 mm (Customizable for wider ranges)

• Cutting Speed: 10 - 30 meters/minute (Adjustable)

• Cutting Accuracy: ± 1 mm

• Cutting Tool Specification: Tailored to material and thickness (e.g., specific band saw blades, circular saw blades, etc.)

• Main Motor Power: 5.5 kW - 11 kW (Depending on cutting requirements)

• Control System: PLC (Siemens / Delta options) with Color Touch Screen HMI

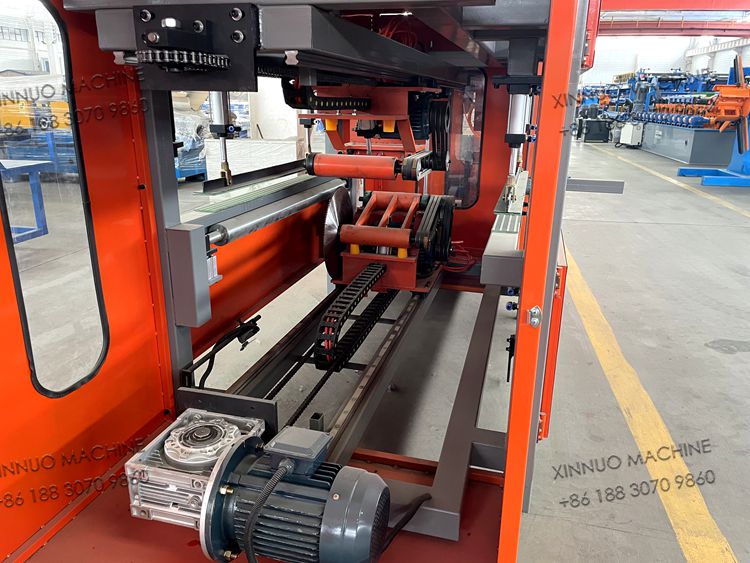

• Feeding System: Heavy-duty roller or belt conveyor with frequency speed control

• Machine Dimensions (Approx.): 3000mm (L) x 2000mm (W) x 2500mm (H) (Cutting Unit)

• Machine Weight (Approx.): 2.5 - 4 Tons

• Power Requirements: 3 Phase, 380V/50Hz or customized to local standards

Benefits to Your Business:

• Superior Product Quality: Produce highly accurate panels with clean edges, enhancing the overall quality of your finished products.

• Maximized Material Yield: Precise cutting significantly reduces material waste, leading to cost savings.

• Increased Productivity: High-speed, automated operation boosts your production throughput and reduces manual labor costs.

• Enhanced Operational Safety: Automated processes and integrated safety features create a safer working environment.

• Long-Term Reliability: Robust construction and quality components ensure minimal downtime and a long operational lifespan, providing an excellent return on investment for your sandwich panel production line.

Why Choose Xinnuo? With over 29 years of expertise in cold roll forming and comprehensive solutions, Xinnuo Roll Forming Machinery stands as a trusted partner. We are a National High-tech Enterprise with numerous patents, dedicated to innovation and quality. Our machines have been successfully exported to 141 countries, backed by strong global sales and after-sales support teams. Located strategically near Beijing and Tianjin Port, we ensure efficient delivery and reduced logistics costs for our clients worldwide.

Invest in Precision. Invest in Xinnuo. Elevate your sandwich panel production with Xinnuo's advanced Sandwich Panel Cutting System. Contact us today to discuss your specific requirements, receive a customized quotation, and discover how our cutting-edge solutions can enhance your manufacturing capabilities.
