Delivery Time: 25 Days Average
Steel Thickness: 0.3–0.8 mm
Raw Material: Galvanized / Pre-painted Steel
Line Speed: 10–15 m/min
Voltage: 380V 50Hz (Customizable)
Overseas Installation Support

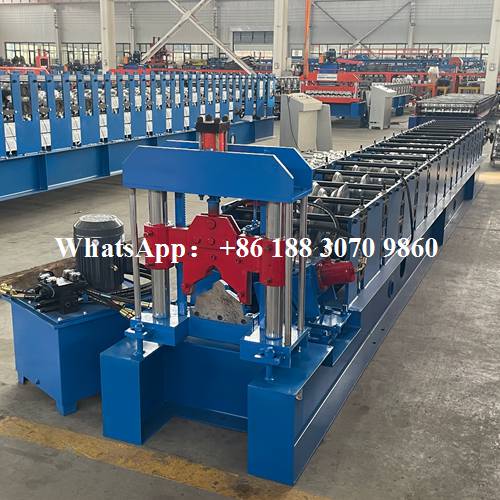

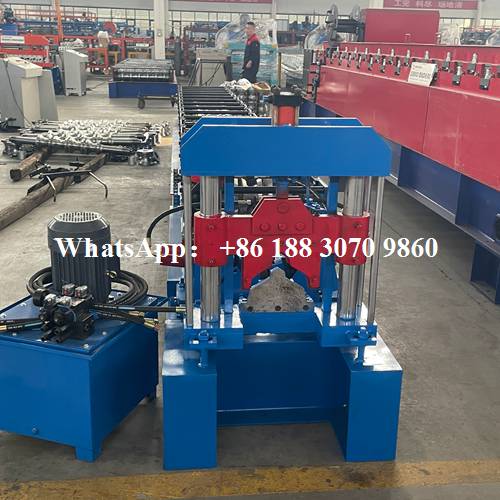

The ridge cap roll forming machine is designed for producing high-quality ridge cap profiles used in roofing systems. It is capable of manufacturing two types of products: with punching holes and without punching, meeting different installation requirements for various roofing systems.
The punching version is suitable for specific roof sheet systems that require fixed fastening points, while the non-punching version is compatible with all types of roofing sheets, offering maximum flexibility for manufacturers.

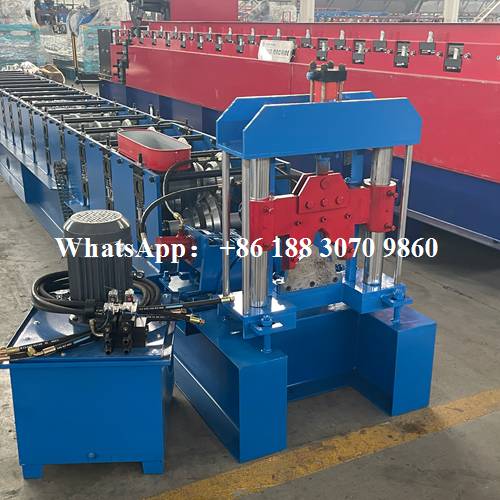

The main body of the ridge cap roll forming machine is built with a heavy-duty steel frame to ensure stable operation during continuous production. The structure is designed for long-term industrial use.

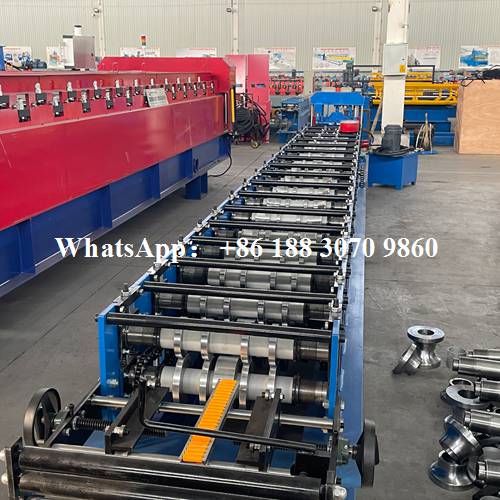

The forming system ensures precise shaping of ridge cap profiles, delivering consistent quality and smooth surface finish for roofing applications.

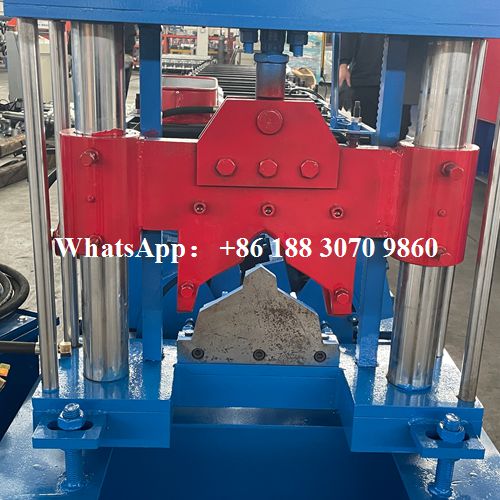

The tracking shear cutting system ensures precise cutting of ridge cap profiles without affecting production stability. It improves efficiency and maintains consistent product length.
The synchronized cutting design allows smooth operation and reduces downtime during production.
Machine Type: Ridge Cap Roll Forming Machine
Product Type: With Punching / Without Punching
Material Type: Galvanized Steel / Color Steel
Material Thickness: 0.3 – 0.8 mm
Forming Speed: 10 – 20 m/min
Control System: PLC Automatic Control
Cutting Type: Tracking Shear System
Power Supply: 380V / 50Hz / 3 Phase
The machine can be customized according to different ridge cap designs and production requirements.

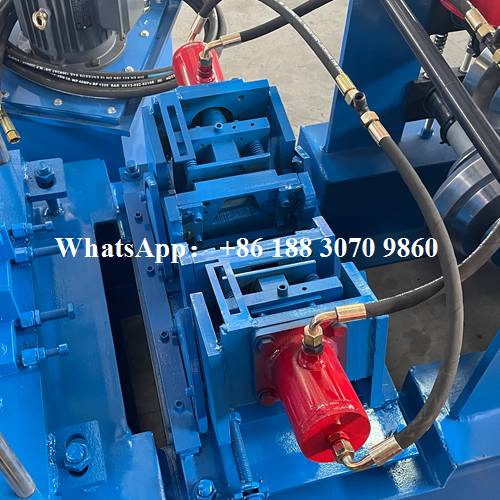

The punching system is designed for producing ridge caps with precise hole positions, suitable for roofing systems that require fixed installation points.
High-accuracy punching ensures clean holes and consistent spacing, improving installation efficiency on site.

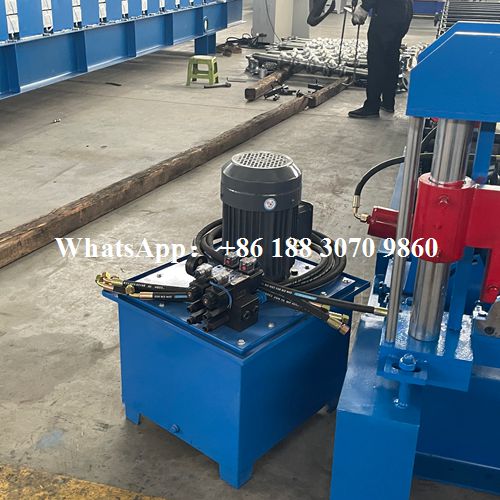

The hydraulic oil tank system ensures stable power supply for cutting and punching operations. It maintains consistent pressure and supports smooth machine performance.
High-quality hydraulic components reduce maintenance requirements and improve long-term reliability of the system.
With over 30 years of experience in roll forming machine manufacturing, we provide professional and reliable roofing production solutions worldwide.
Our machines have been exported to more than 110 countries, serving a wide range of roofing and construction industries.
We offer full customization, technical support, installation guidance, and after-sales service for long-term stable operation.
Q1: What is the advantage of having punching and non-punching versions?
A: The punching version is for specific roof systems, while the non-punching version fits all roofing sheets.
Q2: Is the machine fully automatic?
A: Yes, it uses a PLC control system for automatic operation.
Q3: Can the machine be customized?
A: Yes, we can customize design and specifications according to your requirements.
Q4: Does the tracking shear improve efficiency?
A: Yes, it allows precise cutting without stopping production.
