Develivery time:25-35 days
Model:Double keel 38-42
Payment:30% T/T deposit,70% balance before shipping
Voltage:380V 50HZ 3Phase or based on customer’s need .
Warranty :2 years for machinery warranty|
WhatsApp：+86 188 3070 9860

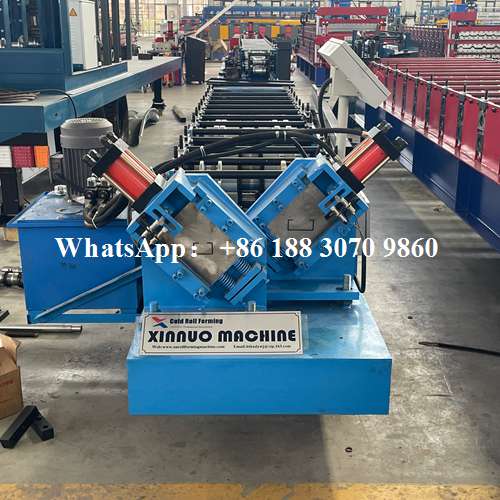

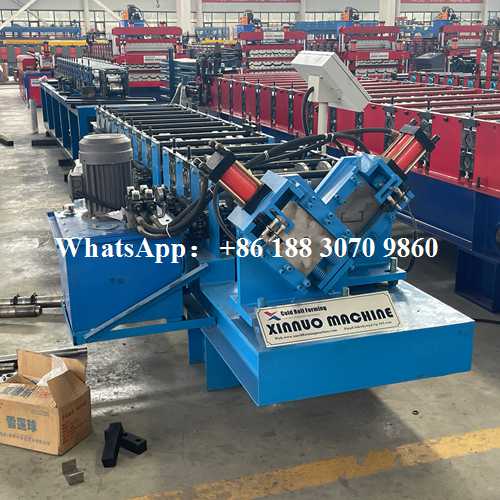

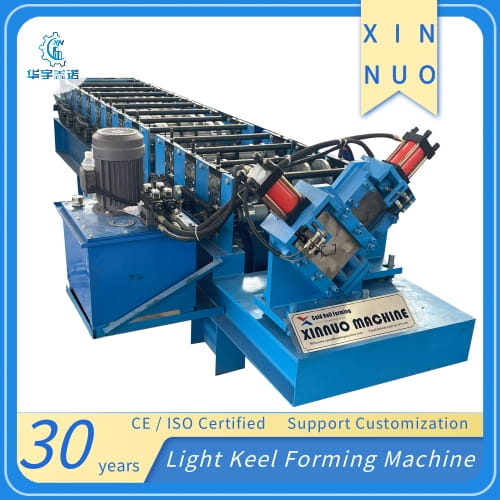

About Light-steel-keel-roll-forming-machine
Our light steel keel roll forming machine can be customized according to different designs or customer’s samples. As a new type of building material, the finished profiles are widely applied for roofs and walls of factories, warehouses, garages, gymnasiums, and exhibition centers. With over 30 years of manufacturing experience, we ensure stable quality and precise forming. The products feature easy installation, short construction period, attractive appearance, light weight yet high strength, making them ideal for modern steel structure projects.
| No. | light steel keel roll forming machine | |
| 1 | Suitable to process | Color alu-zinc steel strips |
| 2 | Roller | (10-14)Rows plus leveling device |
| 3 | Dimensions | 5.4*1*1.5m |
| 4 | Motor Power | 5.5Kw |
| 5 | Pump Station Motor | 5.5Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 30-35m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ50mm |
| 10 | Weight | About 2600kgs |
| 11 | Main structure of the machine | Square steel frame |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer’s need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Gear driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
Warranty: 24 months warranty, with lifelong technical support.
Installation & Training: We provide professional installation guidance. If needed, our engineers can go abroad for on-site service.
Spare Parts: Free spare parts are provided with the machine, and long-term supply is guaranteed.
Online Support: 24/7 video and online technical service to solve problems quickly.
Maintenance: Regular maintenance guidance to ensure stable and long-term machine performance.
Xinnuo Machinery Co., Ltd., established in 1995, is a subsidiary of Hebei Xinnuo Roll Forming Machine Co., Ltd., previously known as Botou Huayu Roll Forming Machine Factory. We focus on the design, manufacturing, and sales of cold-formed machinery, offering a broad range of high-performance equipment.
Our star product, the sandwich panel production line, is one of our most popular machines and has been exported to countries across the globe. Renowned for its high efficiency and versatility, this machine is key in the production of insulated panels used in various industries. Our commitment to innovation is reflected in the over ten patents we hold, and our recognition as a National High-Tech Enterprise further solidifies our reputation as an industry leader.
